- Product description
-
Product descriptionAreas of application: full brick, concrete, wood. Ideally suited for areas exposed to high temperatures.
- Technical data
-
Technical data

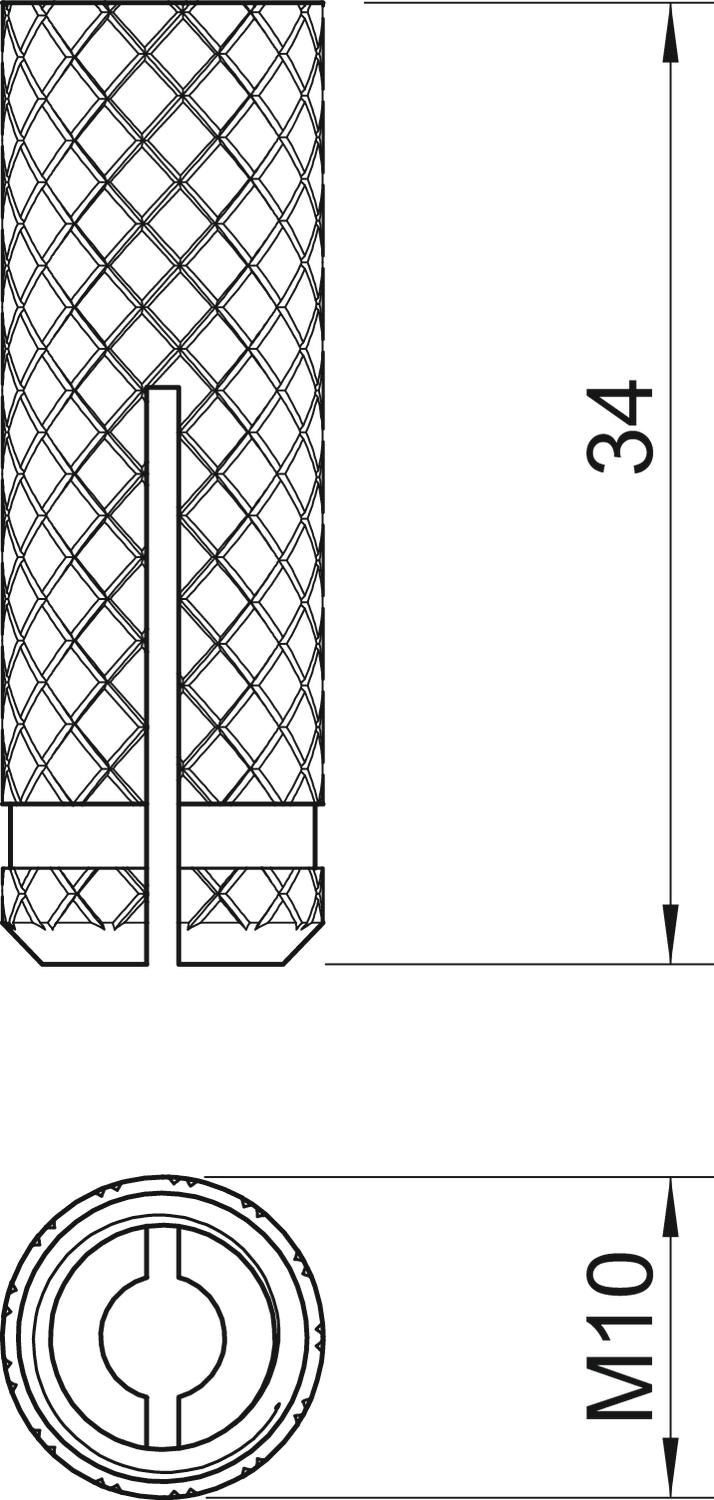

Breaking load 12 kN Diameter 12 mm Dimension M10 Dimension D 12 mm Dimension L 34 mm Drill hole depth 53 mm Drill hole diameter, min. 12 mm Length 34 mm Material Brass Pull-out value 9000 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Concrete Thread M10 Version for Spreading anchor With bolts no - All types
- Downloads
-
Data sheet 865 M10x34 / 3483096 , 0.26MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 865 M10x34 / 3483096 , 0.05MB , pdfREACH Declaration of conformity 865 M10x34 / 3483096 , 0.12MB , pdfRoHS Declaration of conformity 865 M10x34 / 3483096 , 0.12MB , pdf
