- Product description
-

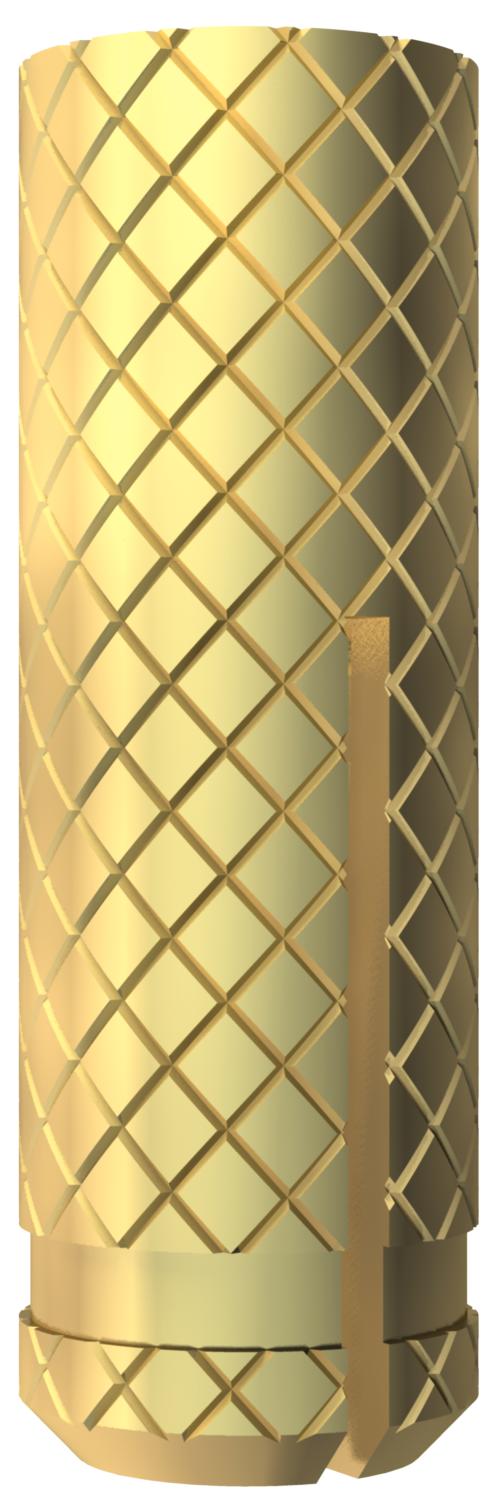

Product descriptionAreas of application: full brick, concrete, wood. Ideally suited for areas exposed to high temperatures.
- Technical data
-
Technical data

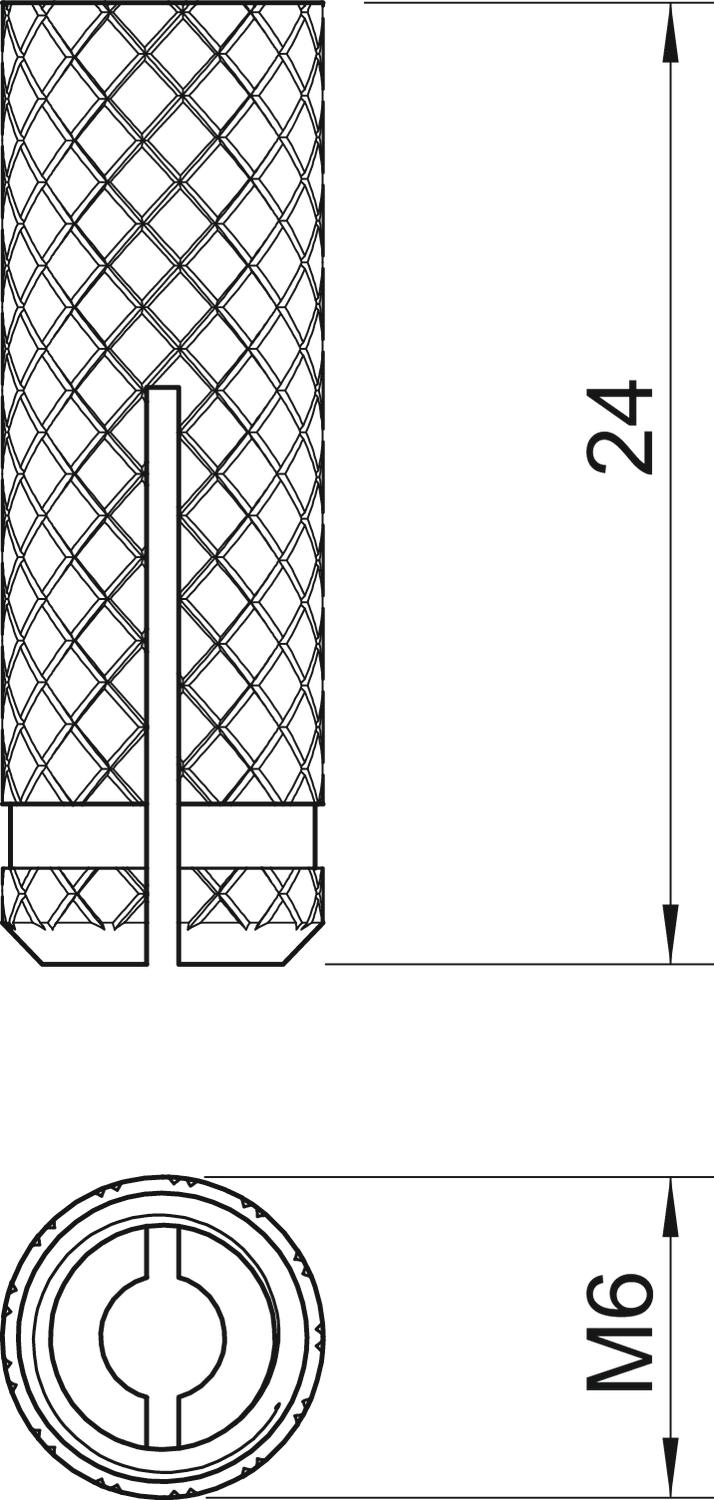

Diameter 7,5 mm Dimension M6 Dimension D 7,5 mm Dimension L 24 mm Drill hole depth 32 mm Drill hole diameter, min. 8 mm Length 24 mm Material Brass Pull-out value 6000 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Concrete Thread M6 Version for Spreading anchor With bolts no - All types
- Downloads
-
Data sheet 865 M6x24 / 3483061 , 0.26MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 865 M6x24 / 3483061 , 0.05MB , pdf
