Brush outlet

Item no. 6288638 | EAN 4012196637331

Product description

Product description

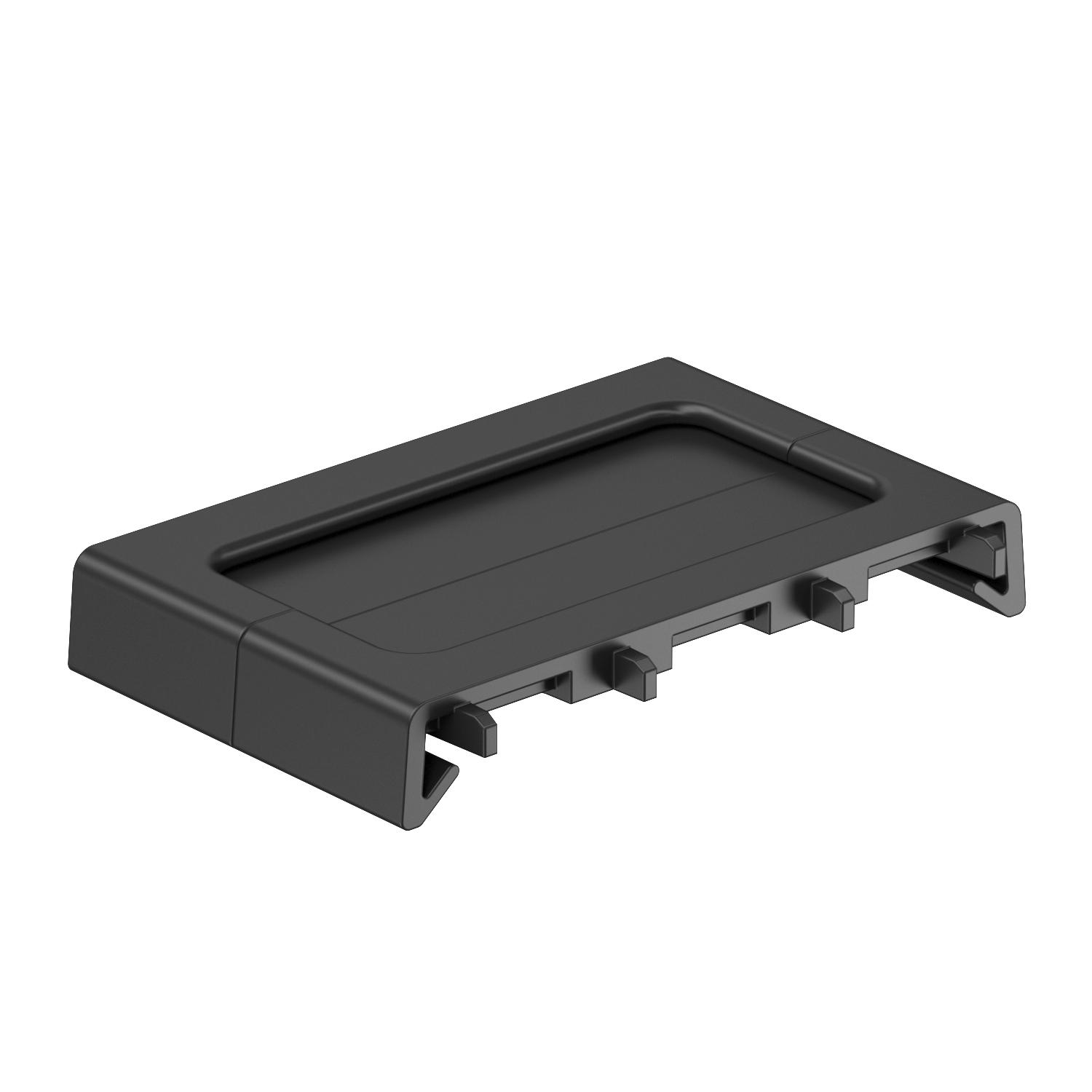

Brush outlet for simple routing of cables out of the 76.5 mm system opening of Rapid 80 plastic and aluminium device installation trunking and ISS aluminium service poles. Any strain relief required is not contained in the scope of delivery.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Black
Cover width 76,5 mm

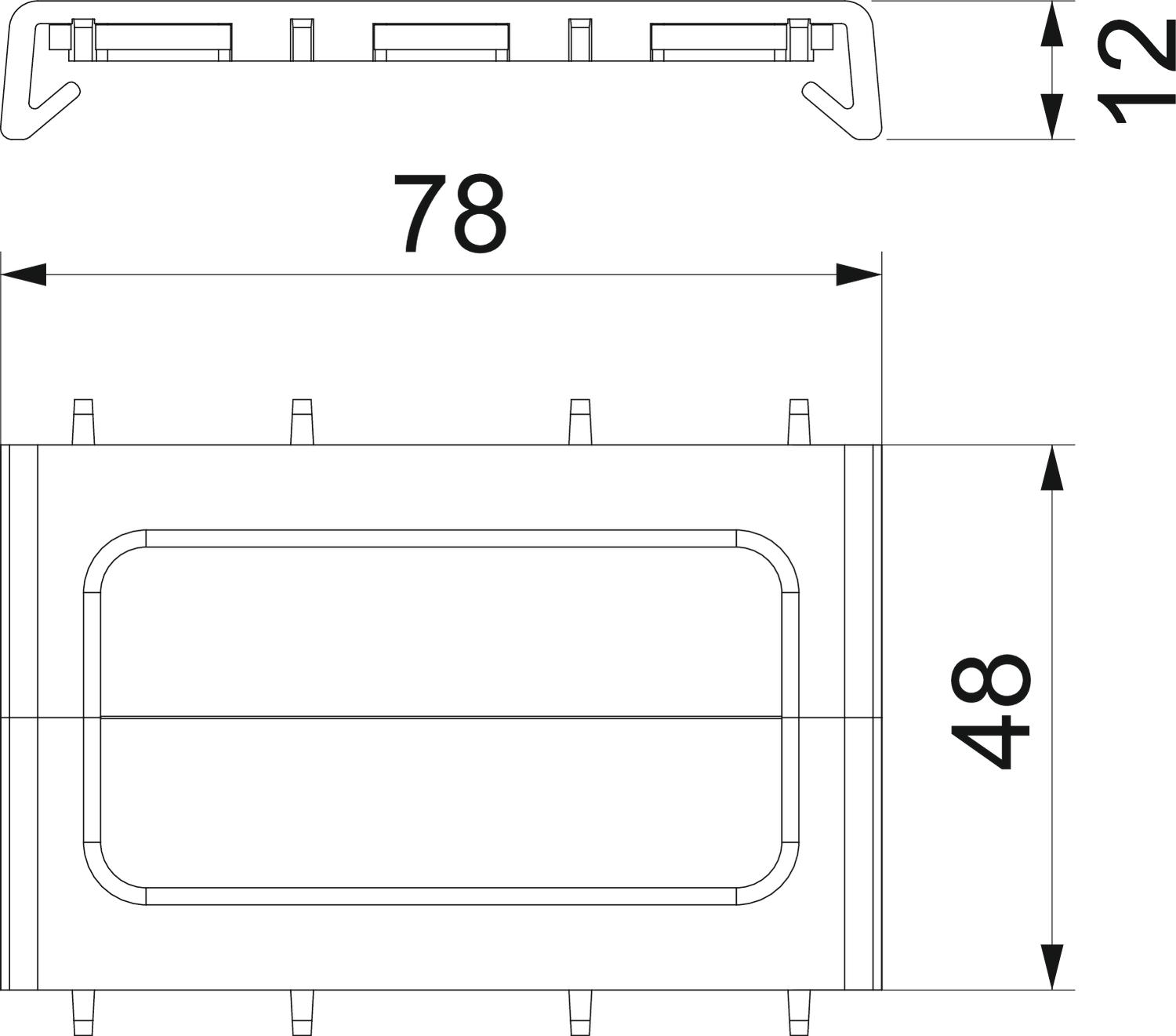

Dimension 48x78x12
Height 12 mm
Length 48 mm
Material Polyamide, fibreglass reinforced
Width 78 mm
All types

All types

Types Item no. Quantity SSU
BA80 6288638
1 piece
Downloads

Declaration of conformity BA80 / 6288638 , 0.13MB , pdf
Download
UK Declaration of Conformity BA80 / 6288638 , 0.14MB , pdf

No invitation to tender text is available for this product.
