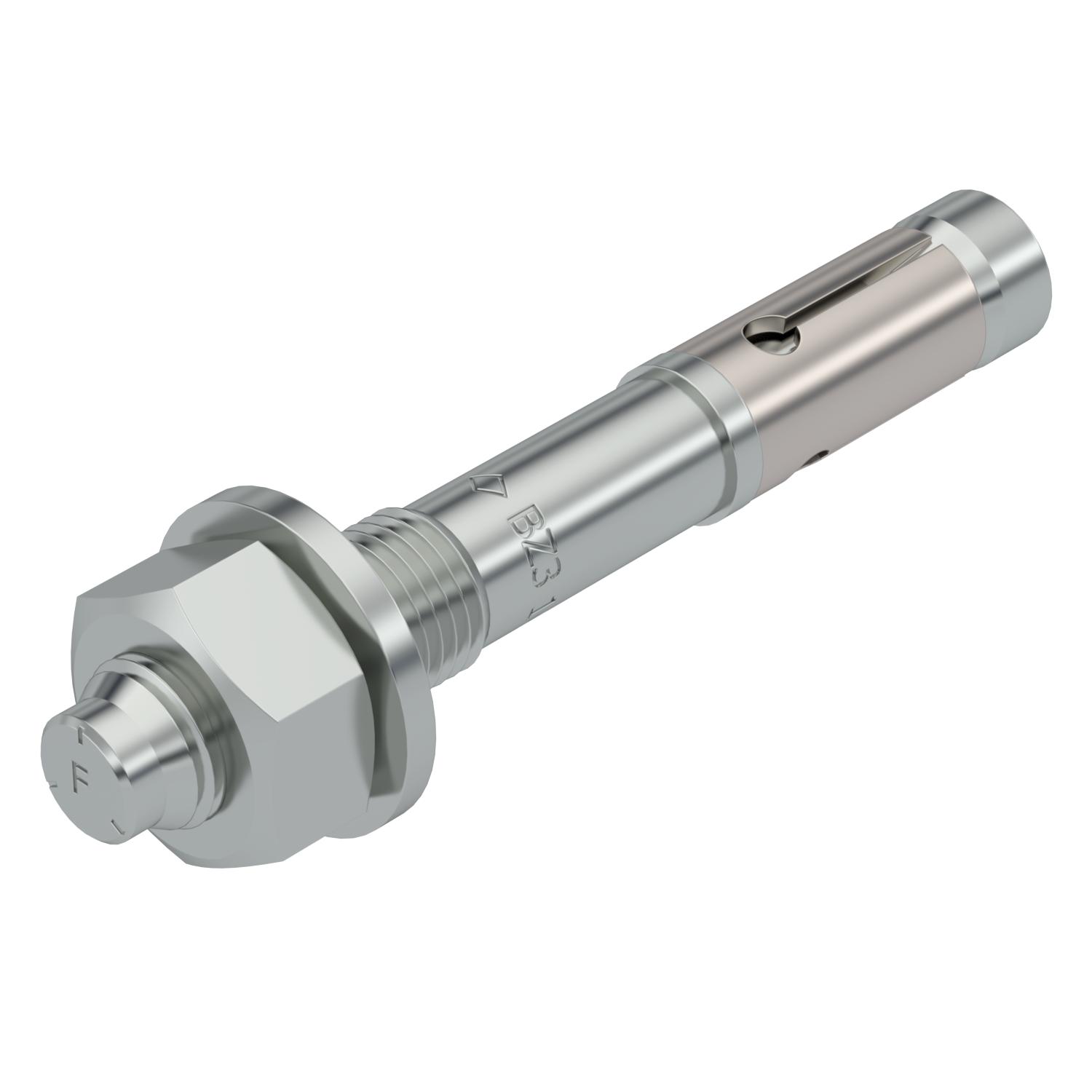

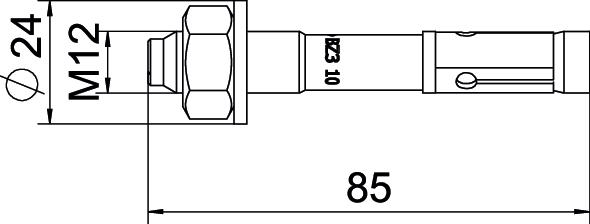

BZ3 bolt tie
Item no. 3498701 | EAN 4012197357559
- Product description
-
Product descriptionBolt tie BZ3 for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. Suitable for heavy loads with small edge and axial distances. For knocking in.
European Technical Approval ETA-19/0619, including characteristic values under fire ex-
posure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
Shock approval by the Federal Office for Civil Protection in Bern, Switzerland.
* With large washer to DIN EN ISO 7093-1 (DIN 9021)
-
- Technical data
-
Technical data
Anchor/nail/bolt version Spreading anchor Approvals available yes Clamping range, max. 10 mm Clamping strength 10 mm Colour zinc Dimension M12x85 Dimension L 85 mm Drill hole depth 83 mm Drill hole diameter, min. 12 mm ETA earthquake rating C1 and C2 Fire protection class to EN 13501-2 Other Length 85 mm Material Steel Mounting type, anchor, tie Pre-mounting Surface Electrogalvanized Thread M12 Thread length 29 mm Thread metric 12 Thread type Metric Tie fastening device Nut Tie screw system Hexagon head Version for For knocking in Version, tie External thread WAF 19 - All types
-
All types
- Downloads
-
Data sheet BZ312x85/0-10 / 3498701 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BZ312x85/0-10 / 3498701 , 0.11MB , pdfREACH Declaration of conformity BZ312x85/0-10 / 3498701 , 0.12MB , pdfRoHS Declaration of conformity BZ312x85/0-10 / 3498701 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
