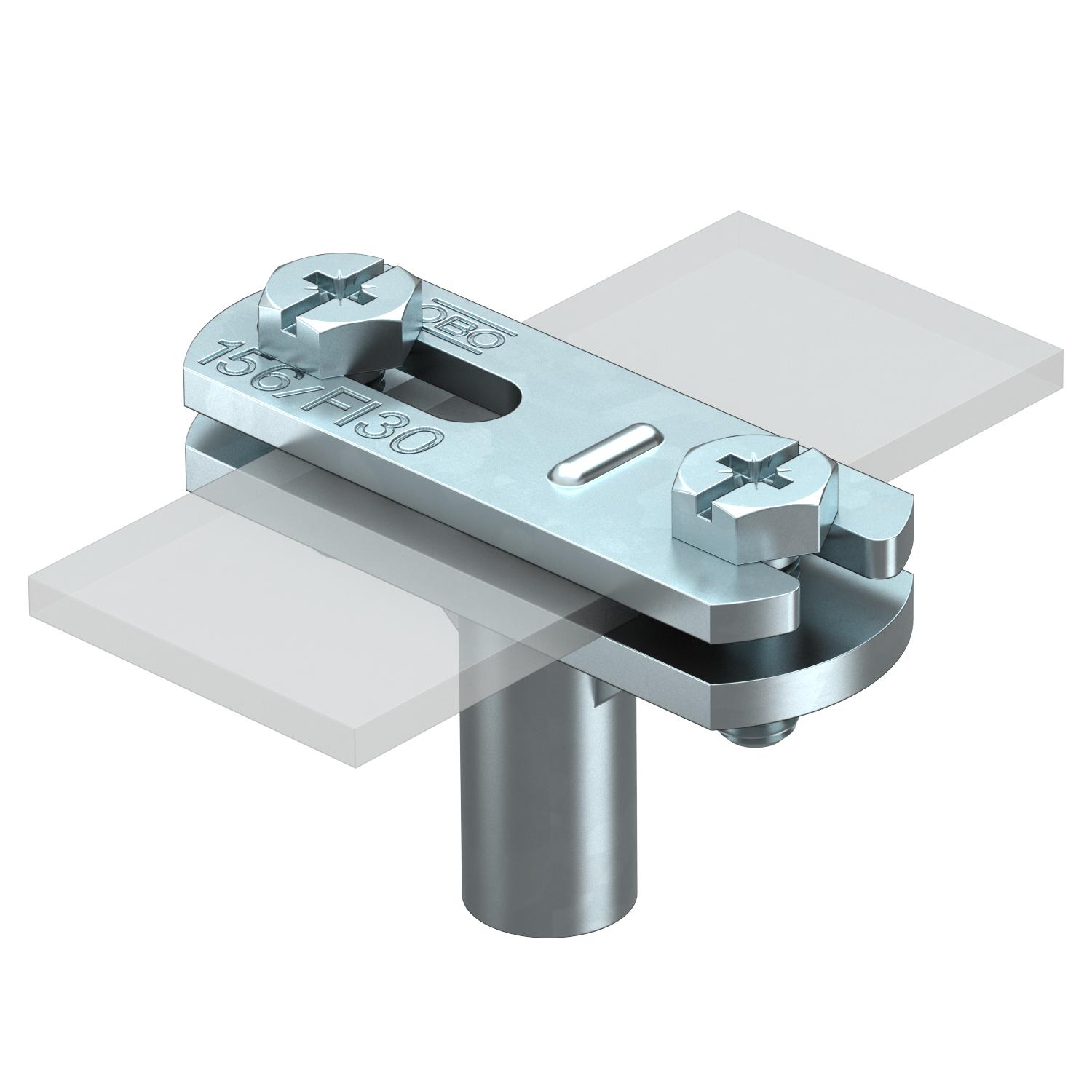

Cable bracket for flat conductors
Item no. 5229553 | EAN 4012195411970
- Product description
-
Product description
• For flat strap
• With internal thread (G)
• Mounting height 30 mm
- Technical data
-
Technical data
Cable dimensions 40 x 4 mm flat Conductor fastening type With screw clip Dimension 40mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material cast steel Material of the base Malleable iron Material of the crossbar Malleable iron Material of the holder Malleable iron Surface Hot-dip galvanised Thread M8 Thread metric 8 Use in Ex area yes Dimensions

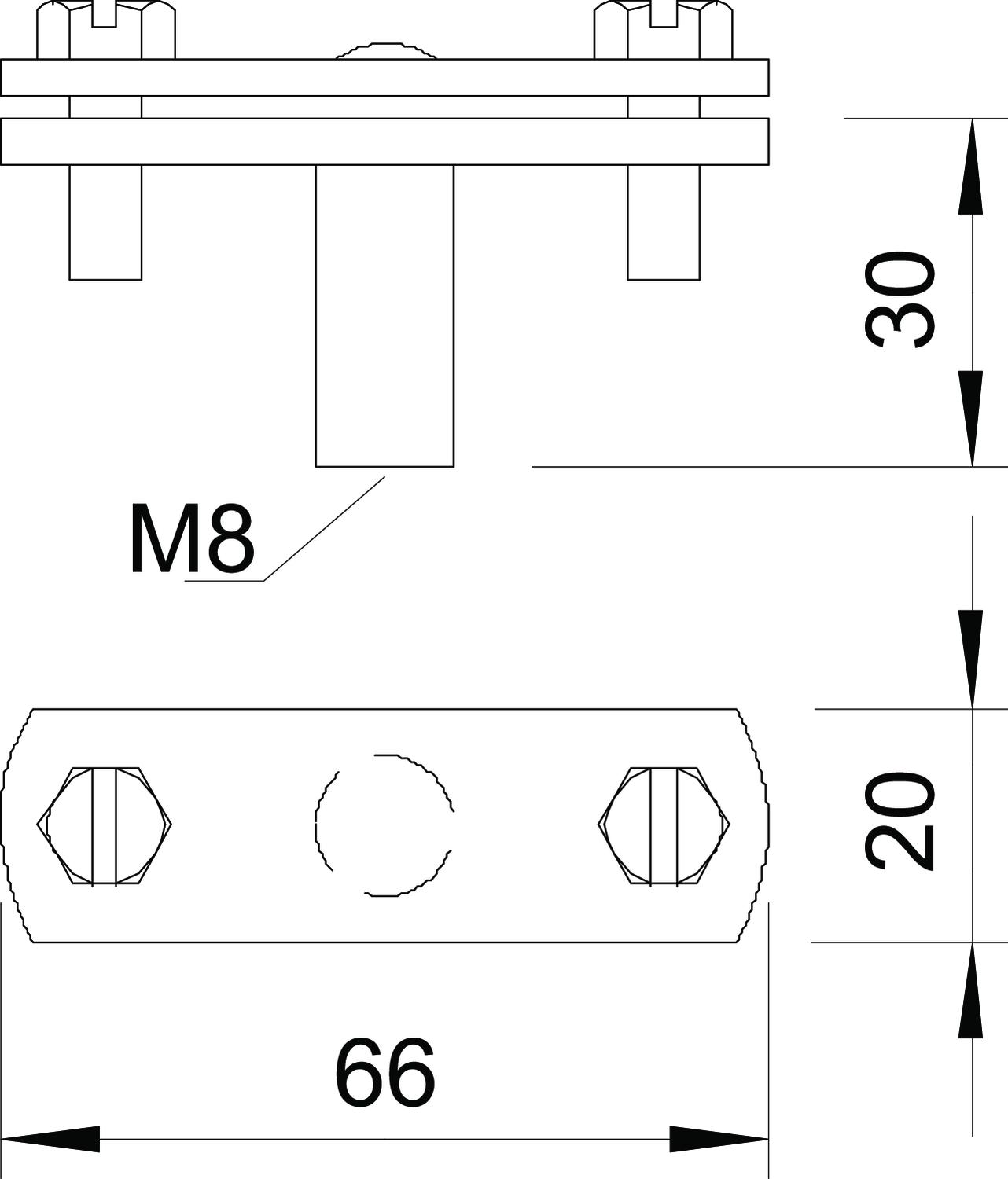

Dimension B 66 mm Dimension G M8 mm - All types
- Downloads
-
Data sheet 168 FL40-M8 / 5229553 , 0.20MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,
