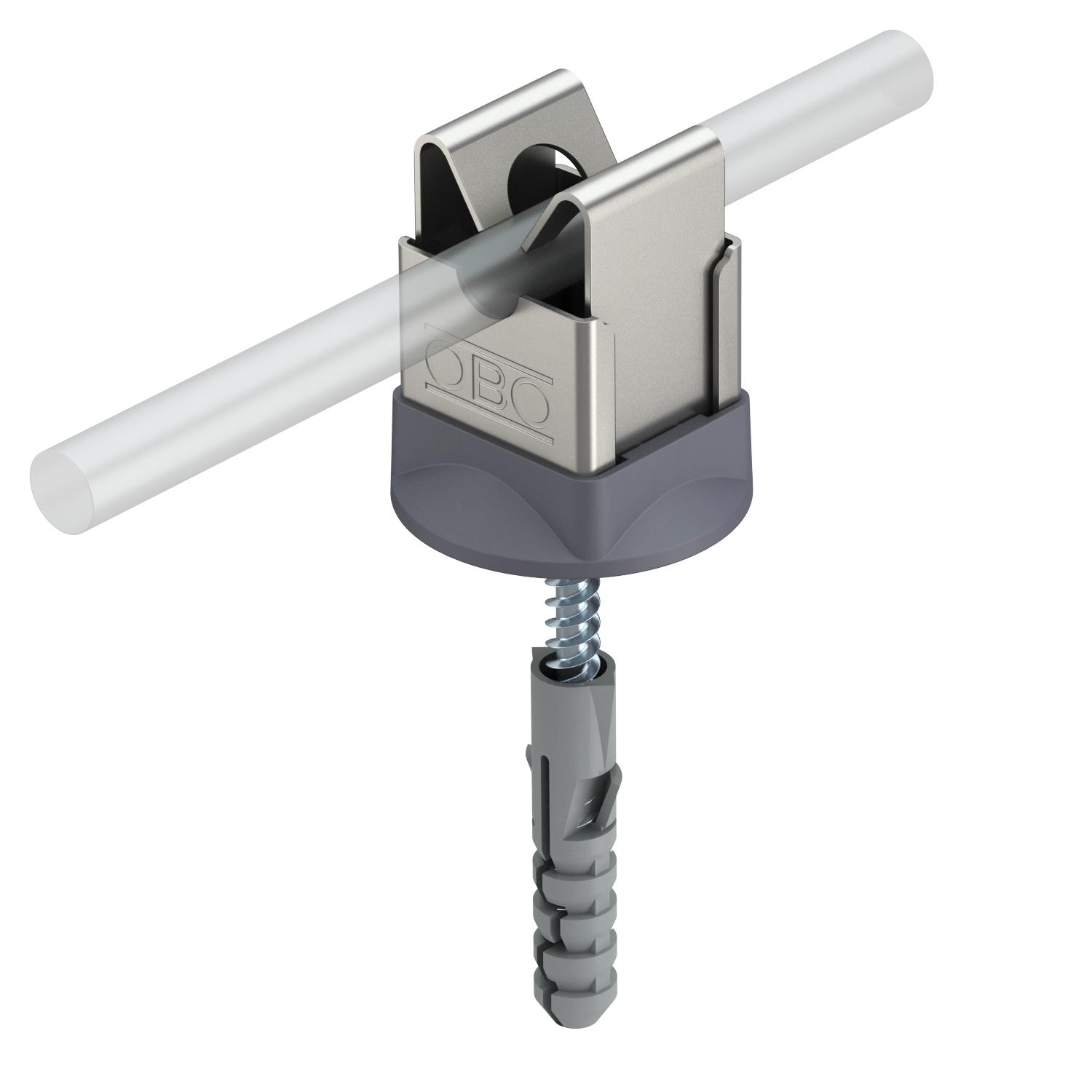

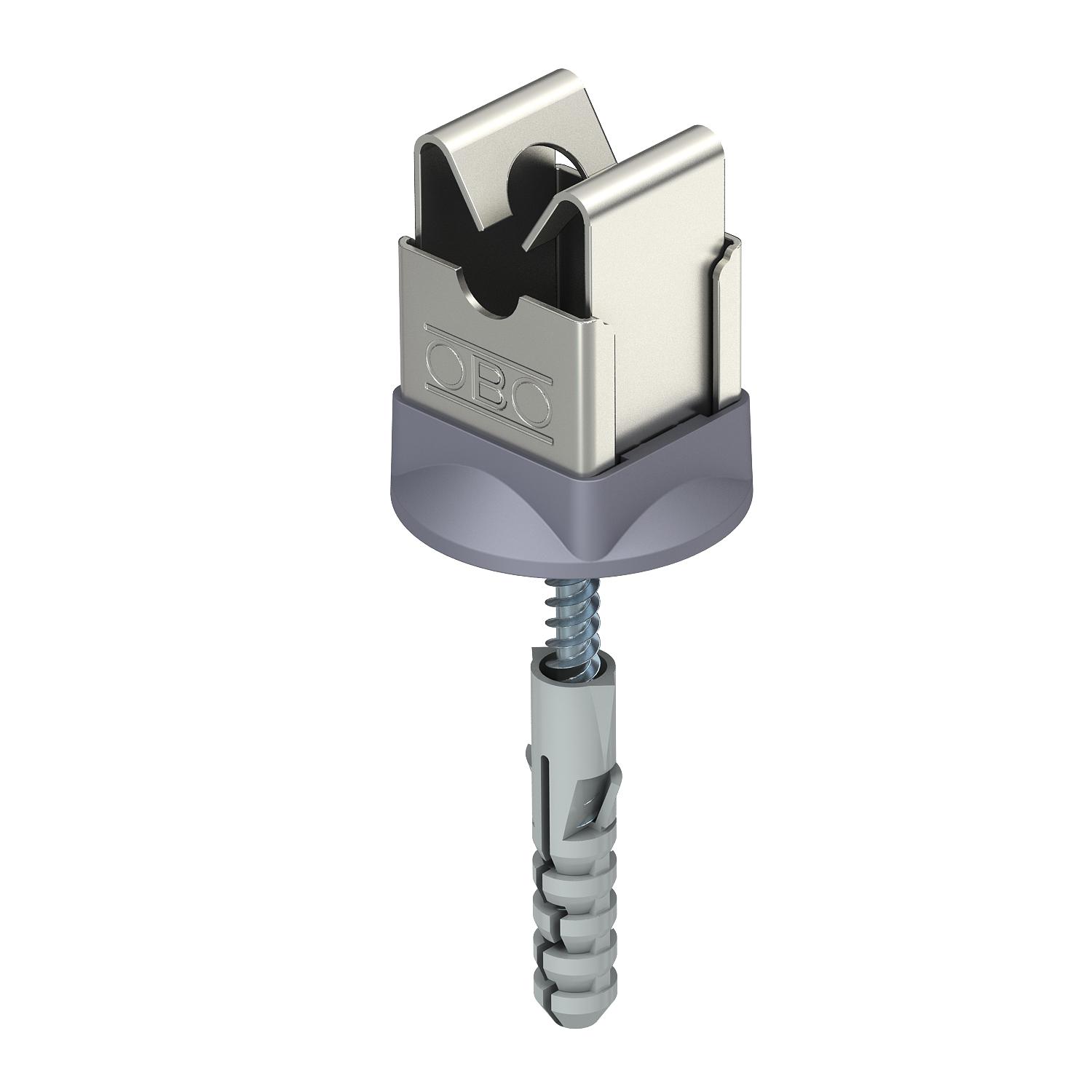

Cable bracket for Rd 8 mm, fastening with screw and anchor

Item no. 5207901 | EAN 4012195915836

5207901 / 177 20 VA B-HD
8 mm round
20 mm
Product description

Product description

• With female thread M8 or through hole Ø 5 mm

• From stainless steel (V2A)

• With pre-mounted wood screws (5 x 60) and plastic dowels (8 x 40)
Technical data

Technical data

Cable dimensions 8 mm round
Conductor fastening type With clamp clip
Dimension 8mm
Dimension G M6 mm
High voltage-resistant, insulated version no
Holder fastening type With anchor
Material Stainless steel
Mounting height 20 mm
All types

All types

Types Cable dimensions Mounting height Item no. Quantity SSU
177 20 VA B-HD 8 mm round 20 mm 5207901
50 piece
