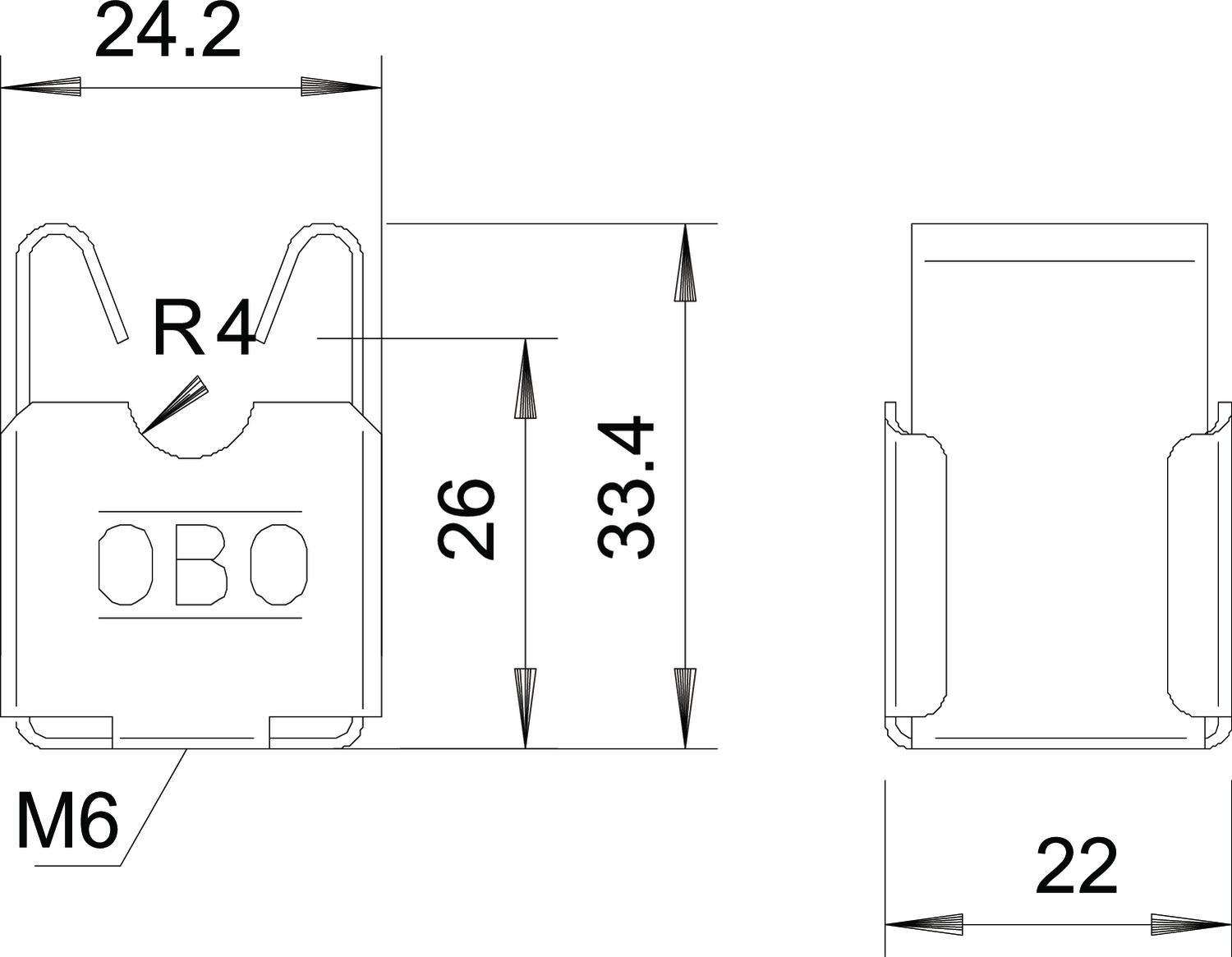

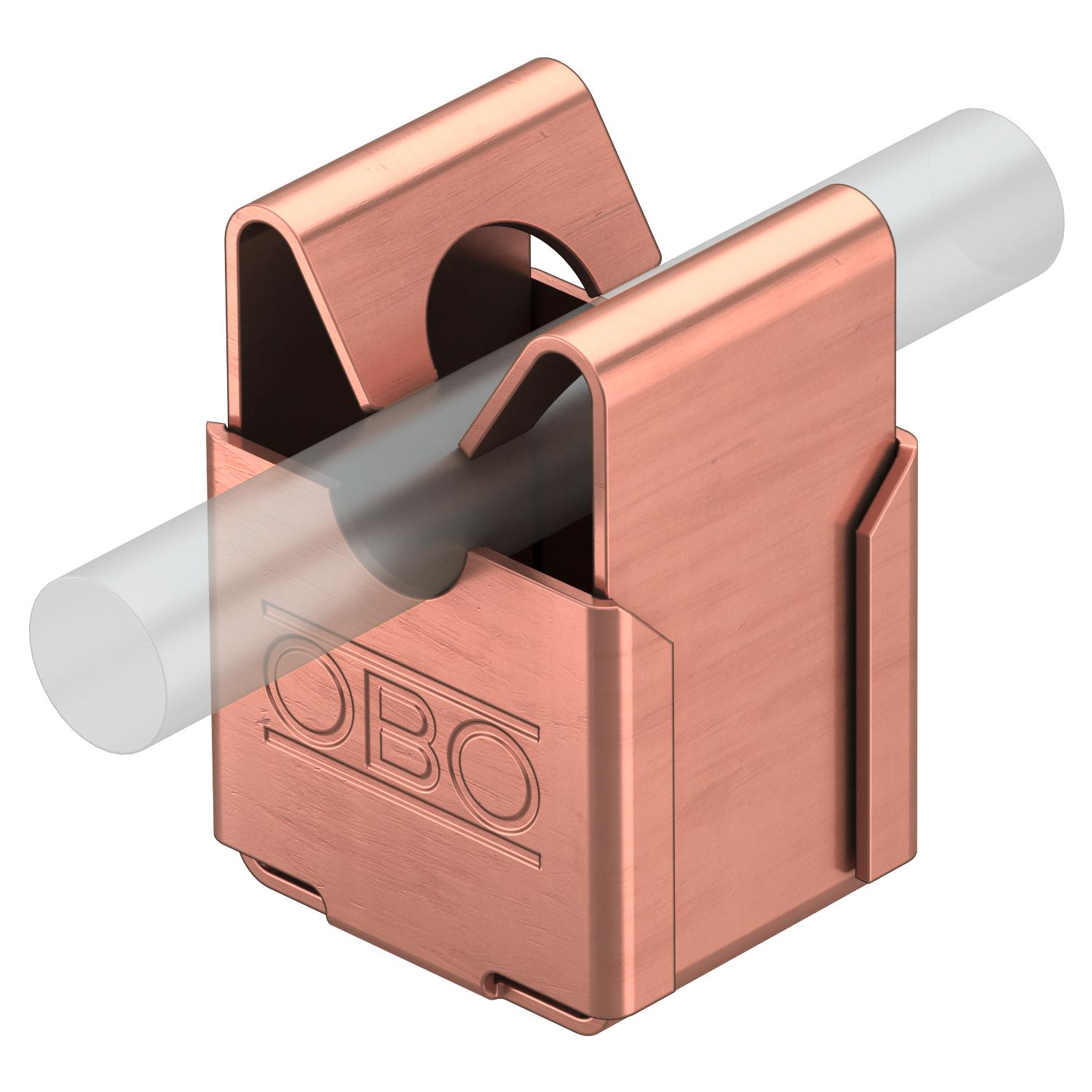

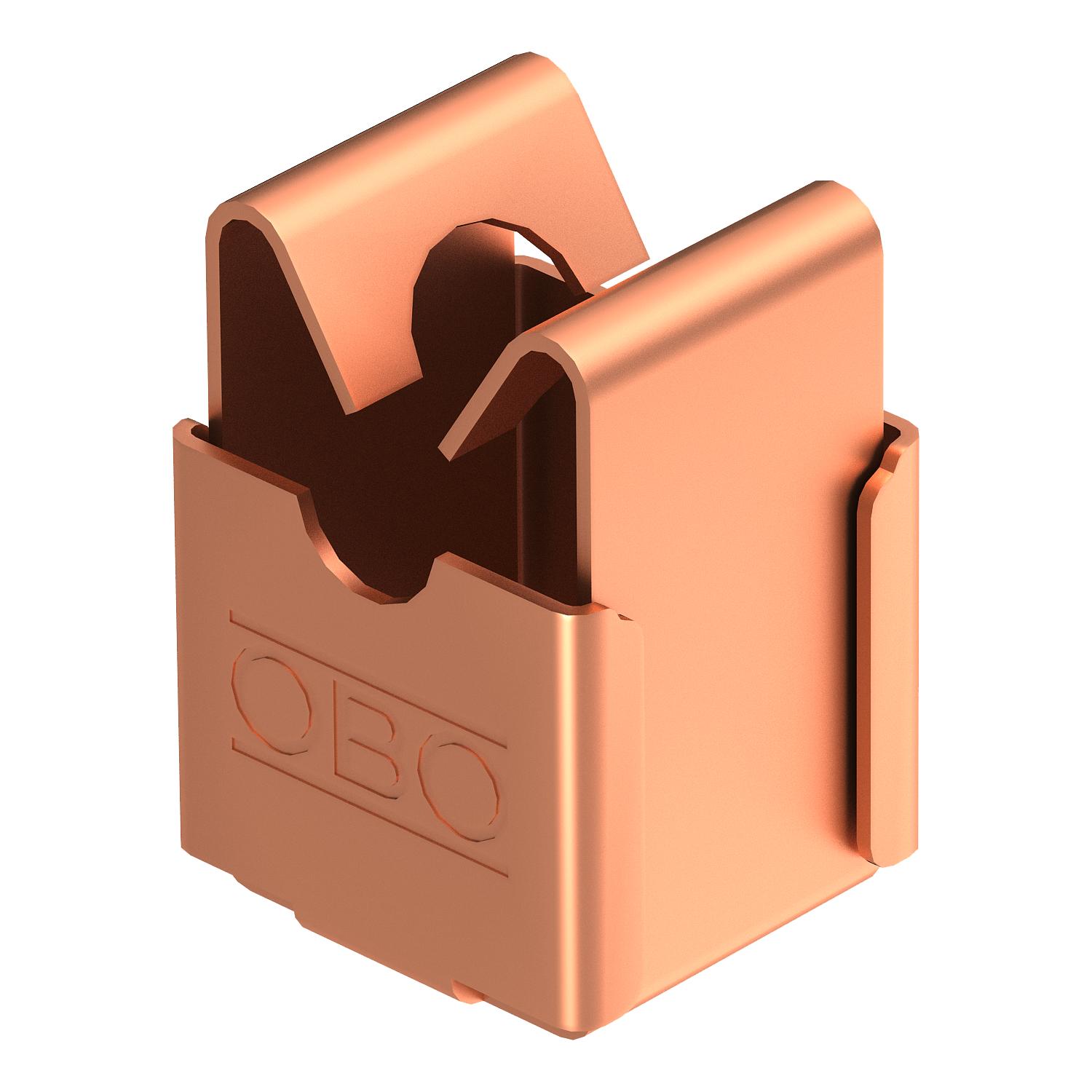

Cable bracket for Rd 8 mm, through-way Ø 5 mm, copper-plated

Item no. 5207800 | EAN 4012195904878

5207800 / 177 20 VA-VK M6
8 mm round
20 mm
Product description

Product description

• With female thread M6 or through hole Ø 5 mm

• From stainless steel (V2A)

• VA-VK: copper-plated
Technical data

Technical data

Cable dimensions 8 mm round
Conductor fastening type With clip
Dimension 8mm
Dimension G M6 mm
Holder fastening type Drill hole with M-thread
Material Stainless steel
Mounting height 20 mm
Surface Copper-plated
Thread metric 6
All types

All types

Types Cable dimensions Mounting height Item no. Quantity SSU
177 20 VA-VK M6 8 mm round 20 mm 5207800
20 piece
Downloads

Download

Download

177 20 VA-VK M6 / 5207800
Download
