Cable bracket, raised construction type, for Rd 8 mm, through-way Ø 5 mm 8 mm round | 35
morepic-1 morepic-2 video-1

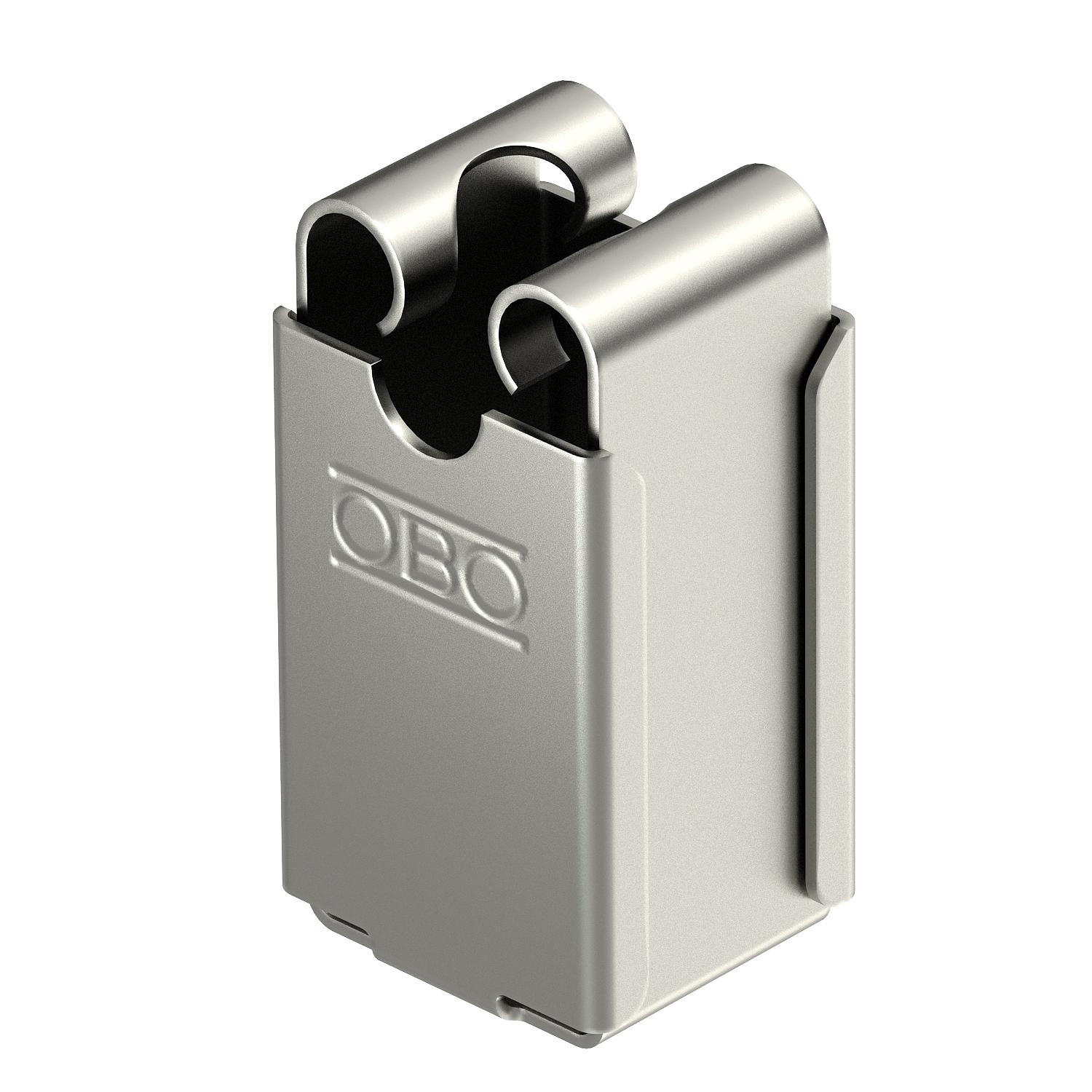

Cable bracket, raised construction type, for Rd 8 mm, through-way Ø 5 mm

Item no. 5207342 | EAN 4012195735762

5207342 / 177 35 VA M6
8 mm round
35 mm
Product description

Product description

• With female thread M6 or through hole Ø 5 mm

• From stainless steel (V2A)
Technical data

Technical data

Cable dimensions 8 mm round
Conductor fastening type With clip
Dimension 8mm
Dimension G M6 mm
Holder fastening type Drill hole with M-thread
Material Stainless steel
Mounting height 35 mm
Thread metric 6
All types

All types

Types Cable dimensions Mounting height Item no. Quantity SSU
177 35 VA M6 8 mm round 35 mm 5207342
20 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 177 35 VA M6 / 5207342 , 0.12MB , pdf
Download
RoHS Declaration of conformity 177 35 VA M6 / 5207342 , 0.13MB , pdf
Download

177 35 VA M6 / 5207342
Download
