- Product description
-

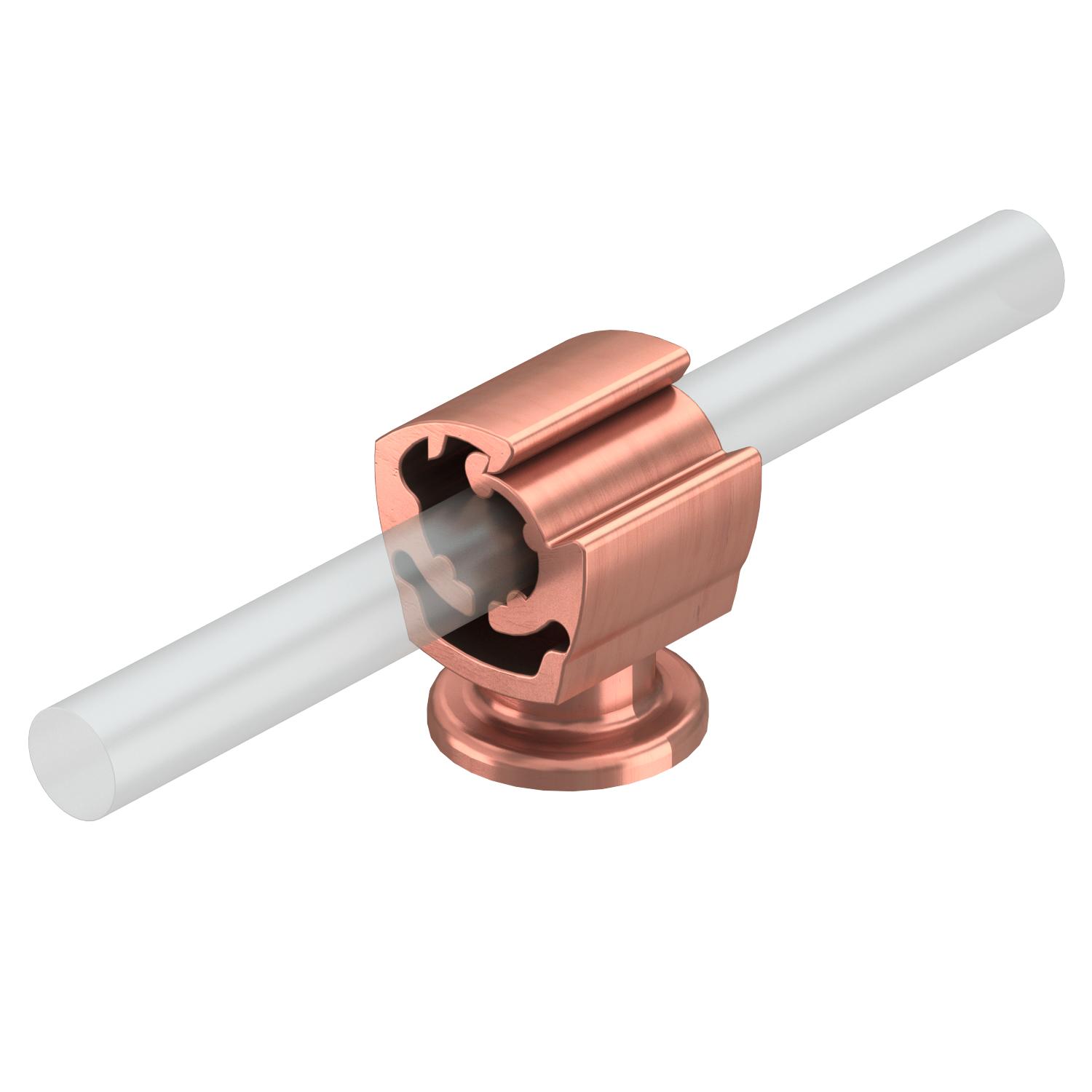

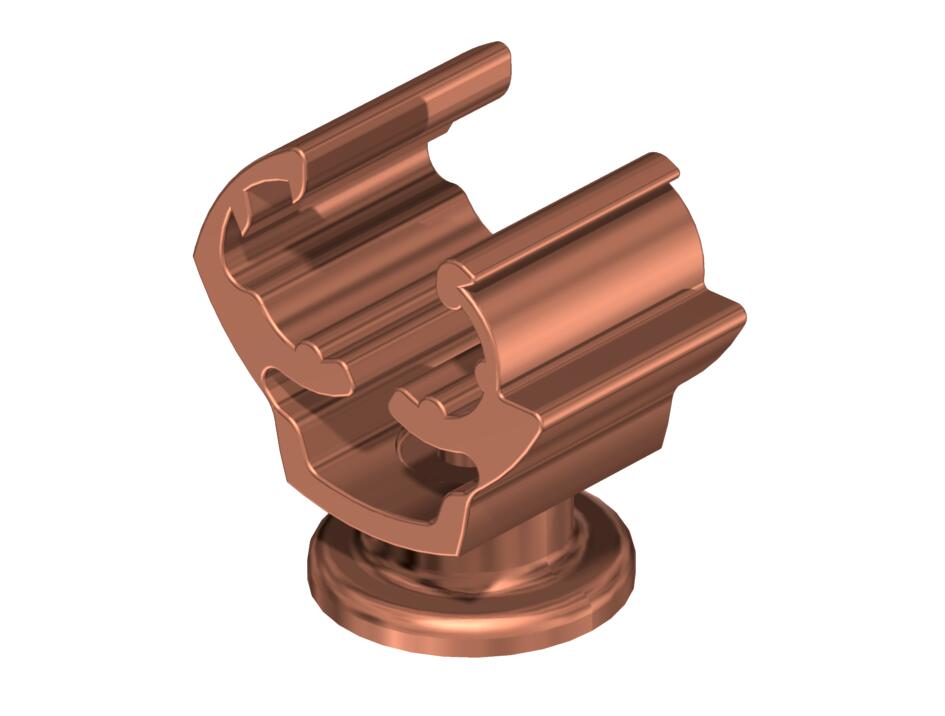

Product description• With female thread M8 for screwing and through hole for wood screws
• Colour: copper
• Weather and temperature-resistant from -35 °C to +90 °C
- Technical data
-
Technical data

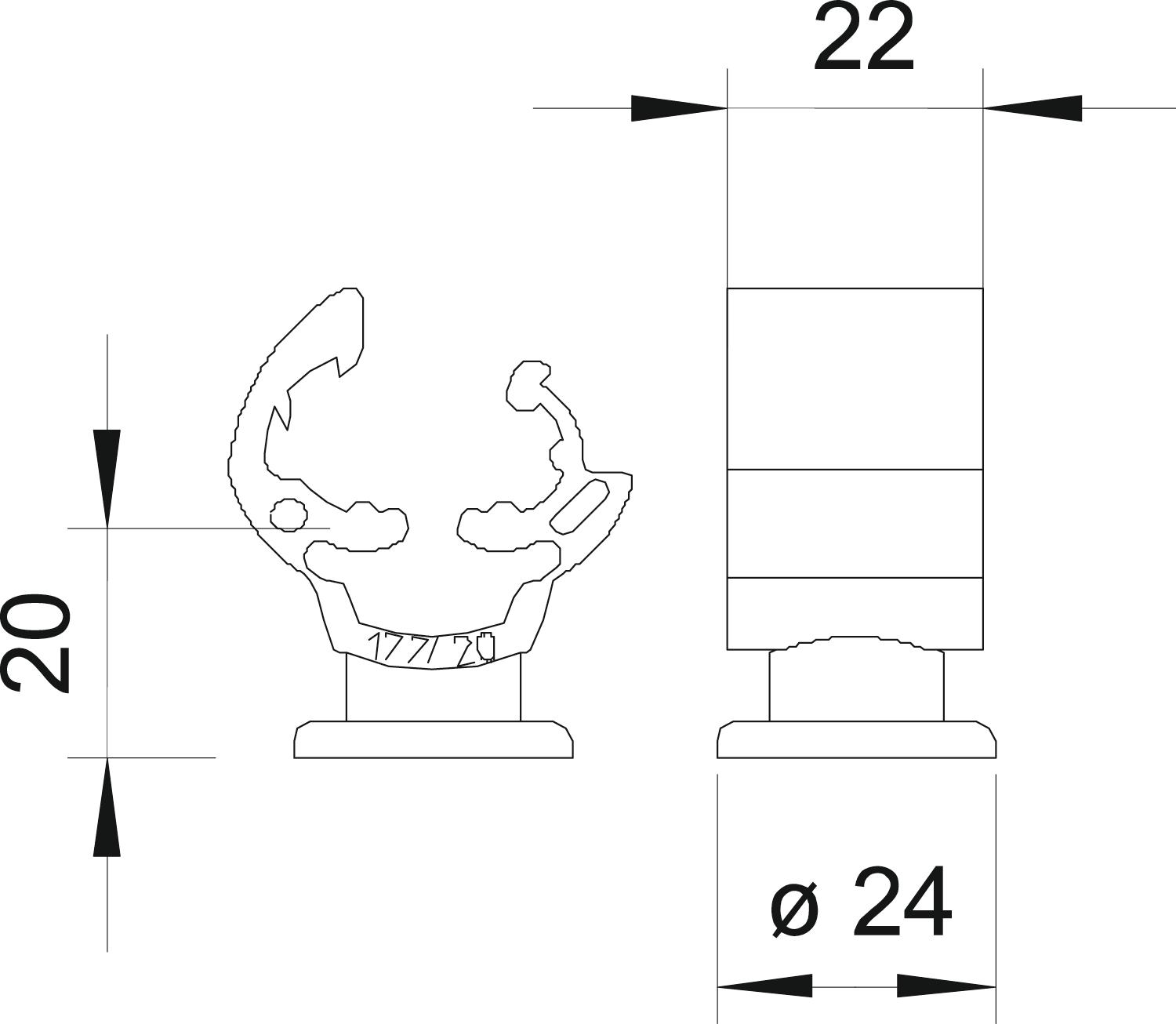

Cable dimensions 8−10 mm round Colour Copper Conductor fastening type With clamp clip Dimension 20mm Holder fastening type Drill hole with M-thread Material Polyamide Material of the base Polyamide Material of the crossbar Polyamide Material of the holder Polyamide Mounting height 20 mm Thread metric 8 - All types
- Downloads
-
Data sheet 177 20 CU / 5207746 , 0.17MB , pdf
English
