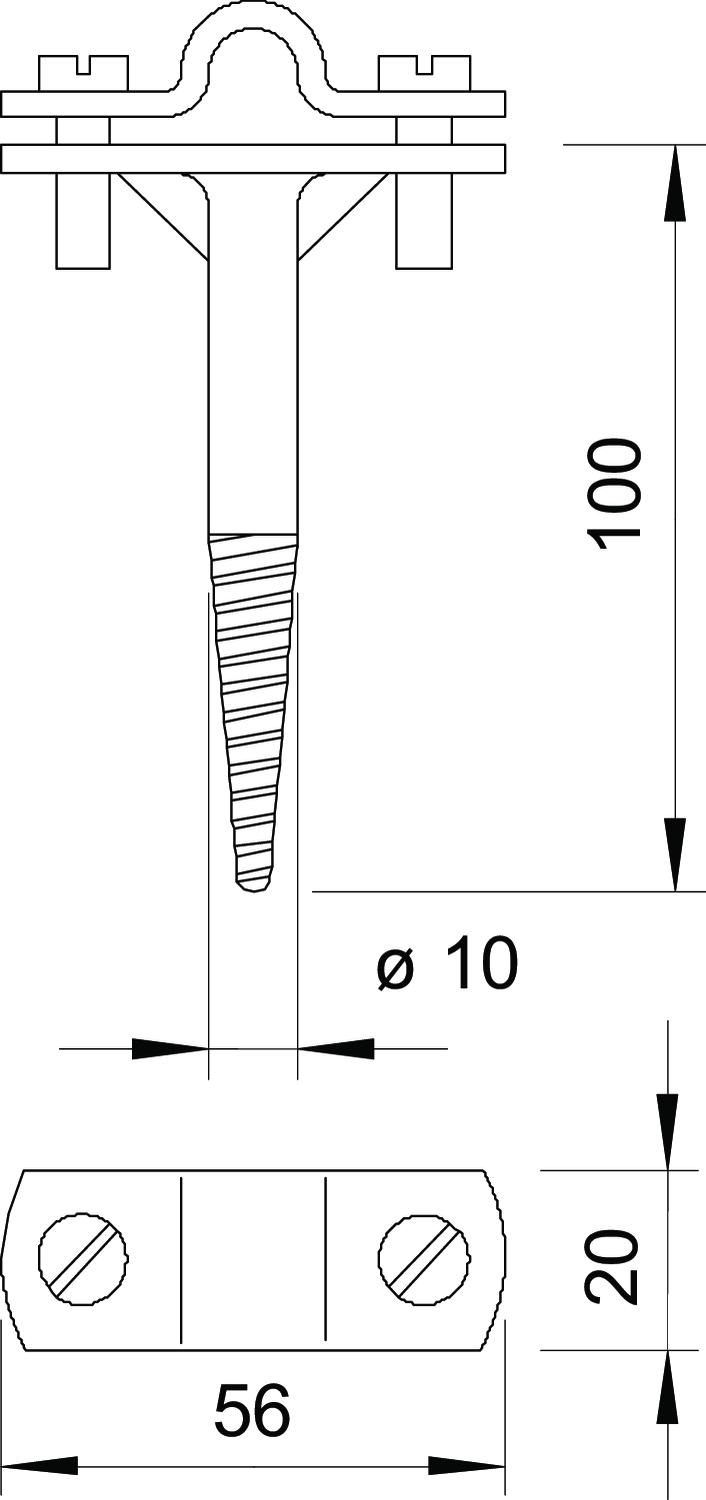

Cable bracket Rd 8−10 mm, with wood screw thread
Item no. 5227100 | EAN 4012195410652
- Product description
-
Product description• Also for flat conductor to FL 30
• With wood screw thread
• Bottom section, hot-dip galvanised cast iron
• Over-piece and screws, hot dipped galvanised steel
- Technical data
-
Technical data
Cable dimensions 8−10 mm round Conductor fastening type With screw clip Dimension 100mm Dimension H 100 mm High voltage-resistant, insulated version no Holder fastening type With wood screw thread tip Length 100 mm Material cast steel Material of the base Malleable iron Material of the crossbar Malleable iron Material of the holder Malleable iron Surface Hot galvanized Use in Ex area yes - All types
- Downloads
-
Data sheet 176 A 100 / 5227100 , 0.17MB , pdfEU declaration of conformity 176 A 100 / 5227100 , 0.06MB , pdfREACH Declaration of conformity 176 A 100 / 5227100 , 0.27MB , pdfRoHS Declaration of conformity 176 A 100 / 5227100 , 0.12MB , pdf
