Cable bracket, upper part for Rd 8–10 mm

morepic-1

morepic-2

Cable bracket, upper part for Rd 8–10 mm

Item no. 5228026 | EAN 4012195410836

Product description

Product description

• With open slot for quick installation

Technical data

Technical data

Dimension	56mm
Fit	Rd 8-10 mm

Material	Steel
Surface	Hot-dip galvanised

All types

All types

Types		Item no.	Quantity	SSU
156 8-10		5228026	piece	100 piece

Downloads

Data sheet 156 8-10 / 5228026 , 0.14MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 156 8-10 / 5228026 , 0.06MB , pdf

Download

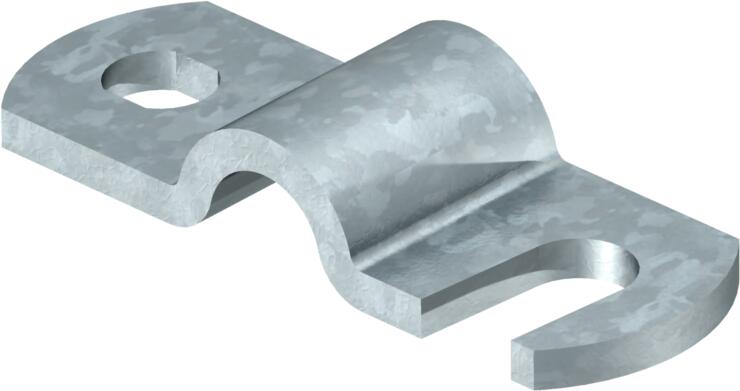

Product graphic 156 8-10 / 5228026, 21.93 kB, jpg

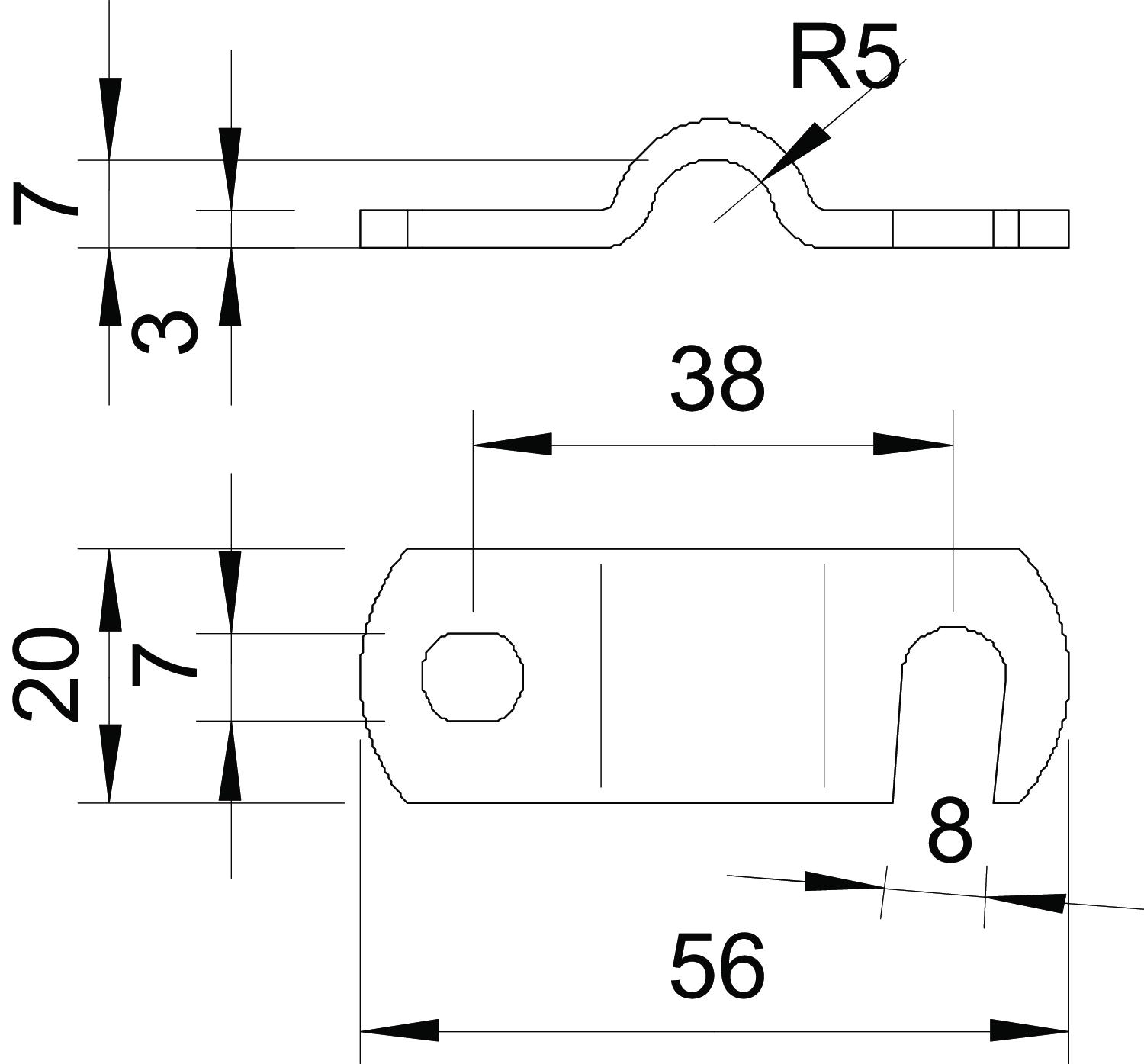

Scale drawing 156 8-10 / 5228026, 75.45 kB, jpg

156 8-10 / 5228026
