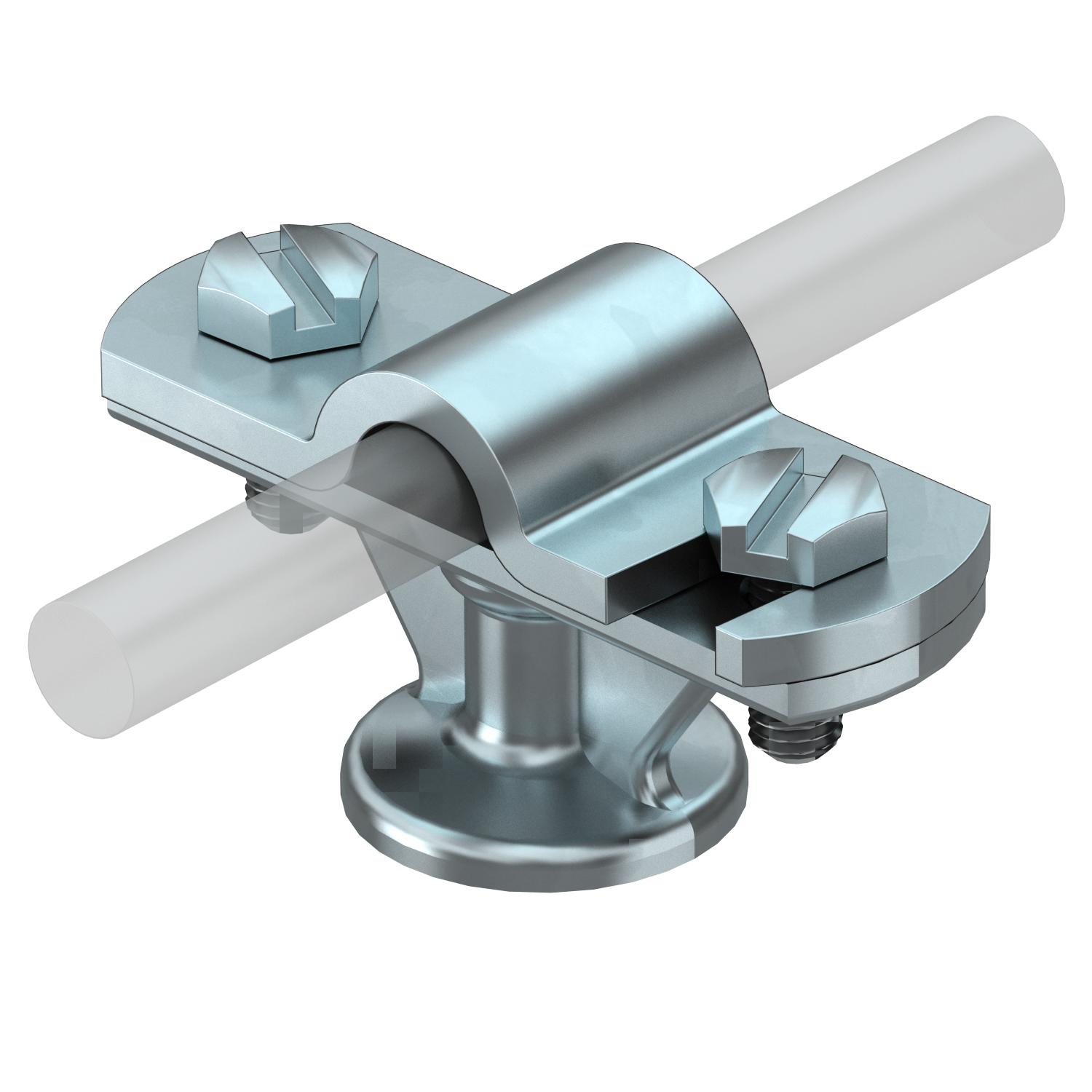

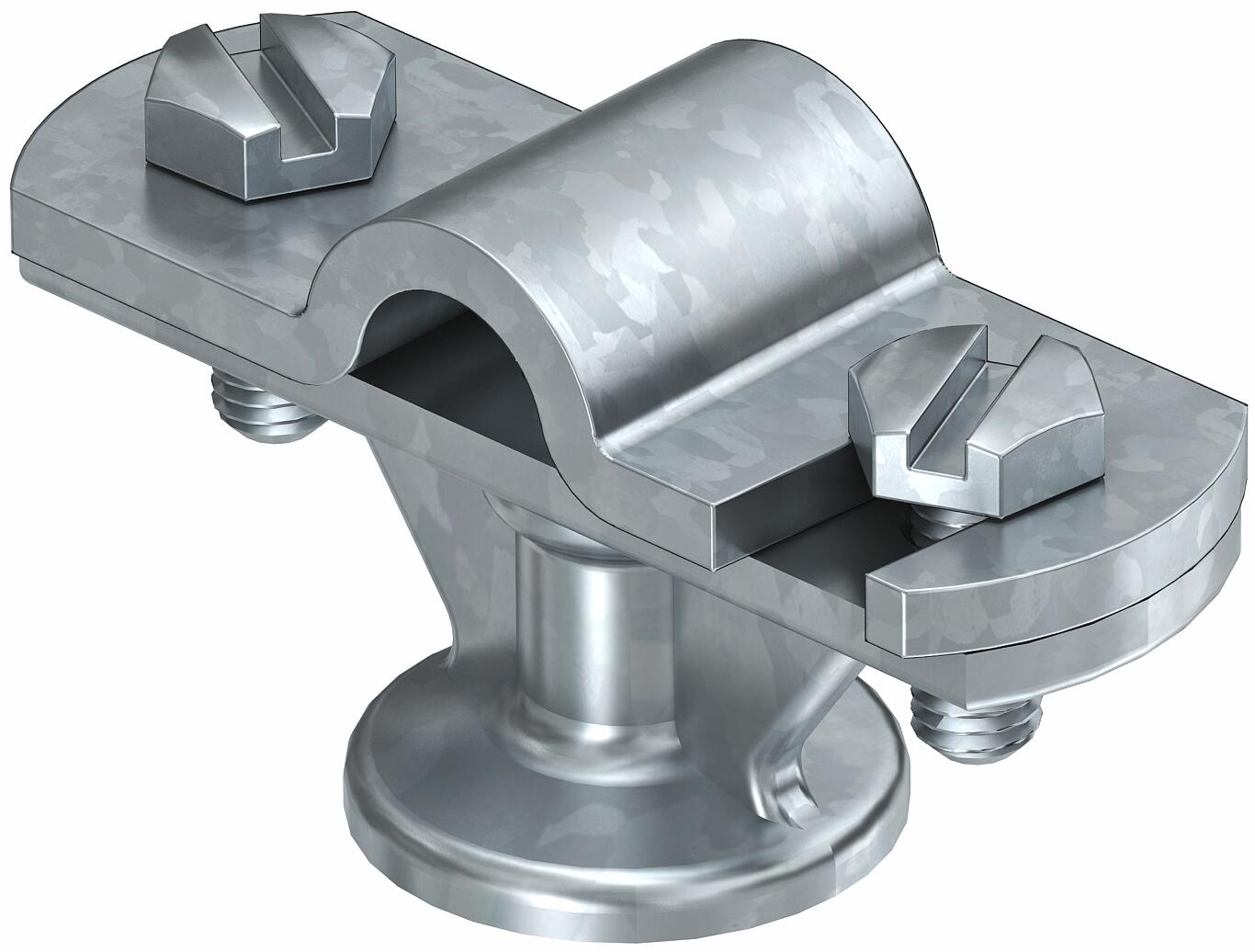

Cable bracket with hinged crossbar Rd 8−10 mm
Item no. 5229961 | EAN 4012195840886
- Product description
-
Product description
• With female thread M8 or through hole Ø 7 mm
• Hinge crossbar for quick swivel mounting
• Crossbar mounted with 2 hexagonal bolts
- Technical data
-
Technical data
Cable dimensions 8−10 mm round Conductor fastening type With screw clip Dimension 8-10mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Material of the holder Die-cast zinc Surface Electrogalvanized Thread metric 8 Use in Ex area yes - All types
- Downloads
-
Data sheet 113 Z-K 8-10 / 5229961 , 0.15MB , pdfDeclaration of conformity 113 Z-K 8-10 / 5229961 , 0.06MB , pdfREACH Declaration of conformity 113 Z-K 8-10 / 5229961 , 0.12MB , pdfRoHS Declaration of conformity 113 Z-K 8-10 / 5229961 , 0.12MB , pdf
