Cable duct, type LKM 30030

Item no. / Types

Length	2000 mm

Width	30 mm

Height	30 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Colour	Pure white; RAL 9010
CO₂ Footprint (GWP) Cradle-to-Gate	1,435 kg CO₂e / 1 Meter

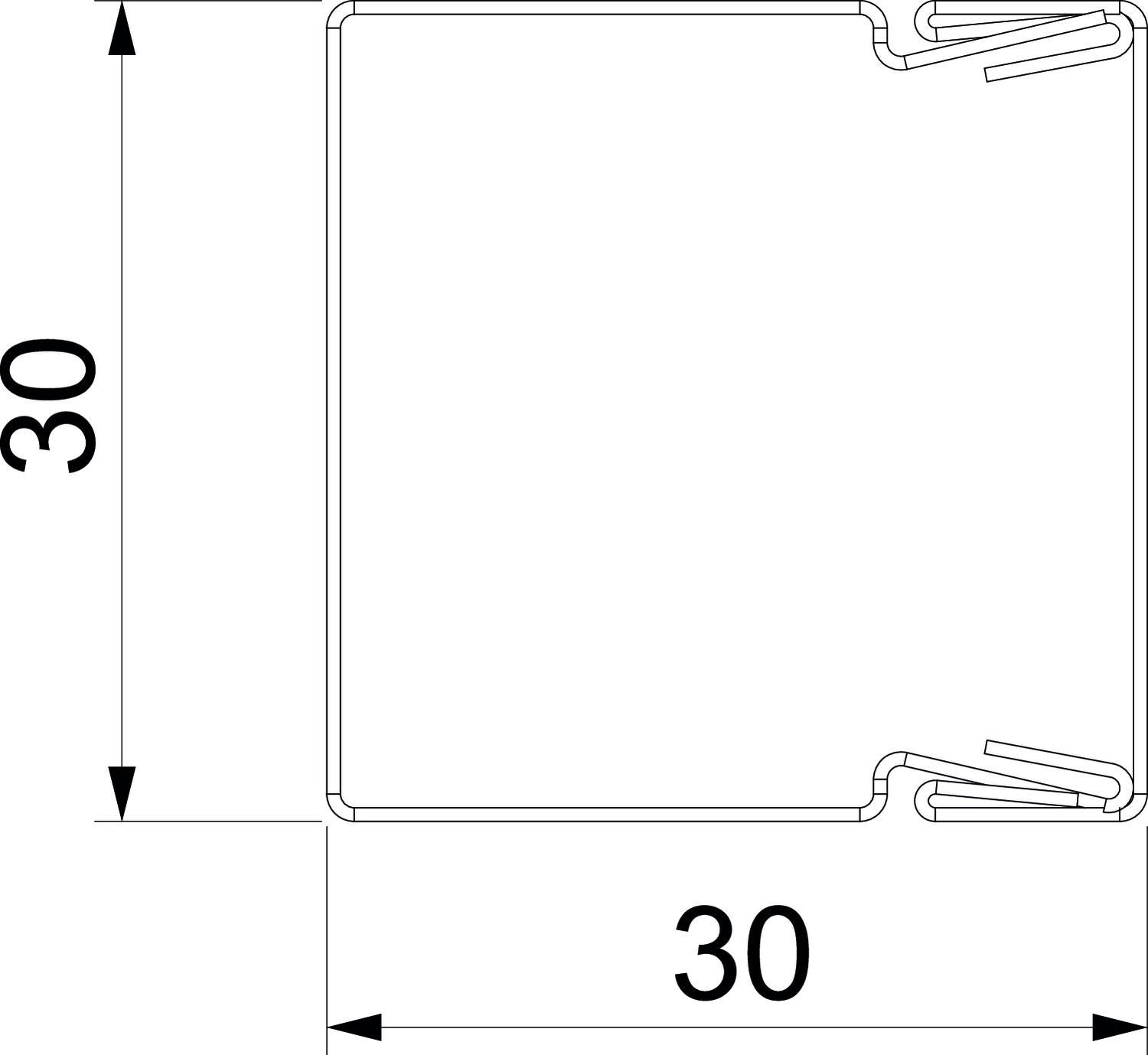

Dimension	30x30x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	30 mm
Length	2000 mm

Maintain electrical functions	no
Material	Steel
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized / plastic coated
Usable cross-section	773 mm²
Version, cable trunking cover	Loose
Width	30 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU

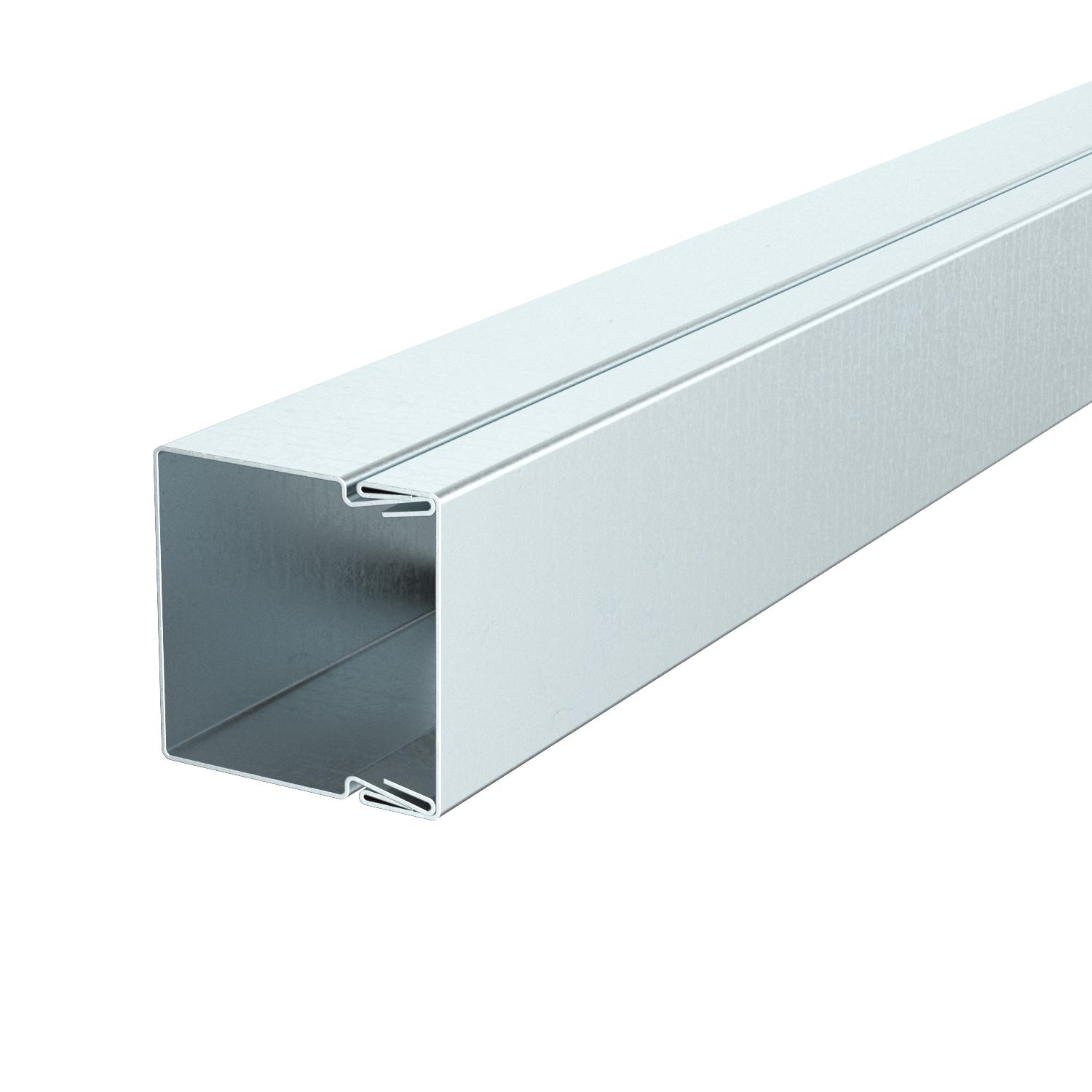

LKM30030FS	2000 mm	30 mm	30 mm	Strip galvanized	Steel	6246985	m	16 m

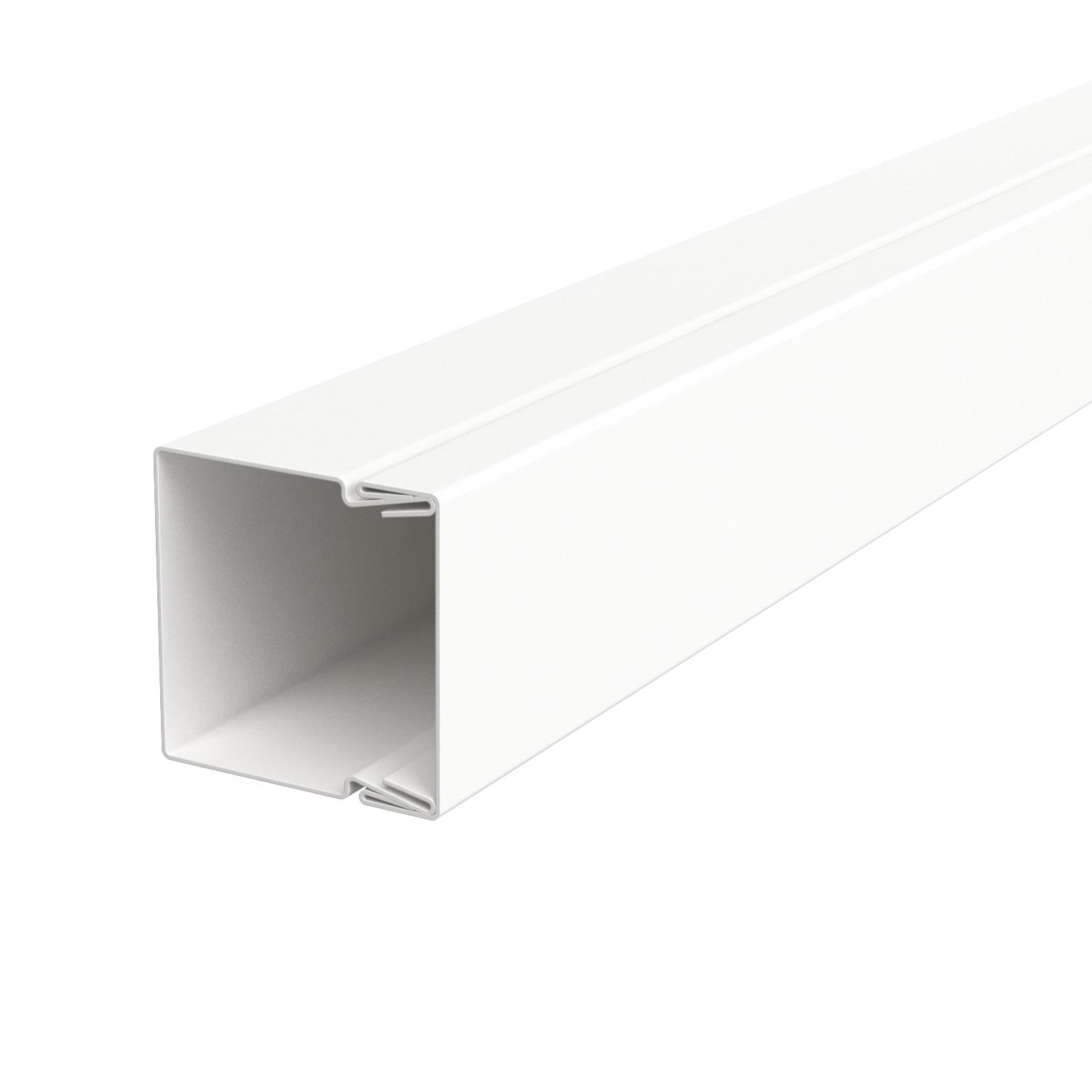

LKM30030RW	2000 mm	30 mm	30 mm	Strip galvanized / plastic coated	Steel	6248489	m	16 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV30	LKM SV30	6247434	piece	10 piece
Edge protection ring KSR 30030, for LKM cable duct type 30030	LKM KSR30030	6249746	piece	5 piece
End piece, for cable trunking type LKM 30030	LKM EK30030	6249776	piece	5 piece

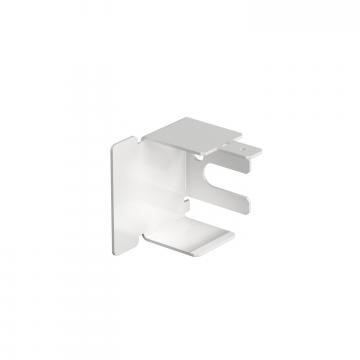

End piece, for cable trunking type LKM 30030	LKM E30030RW	6249410	piece	10 piece
