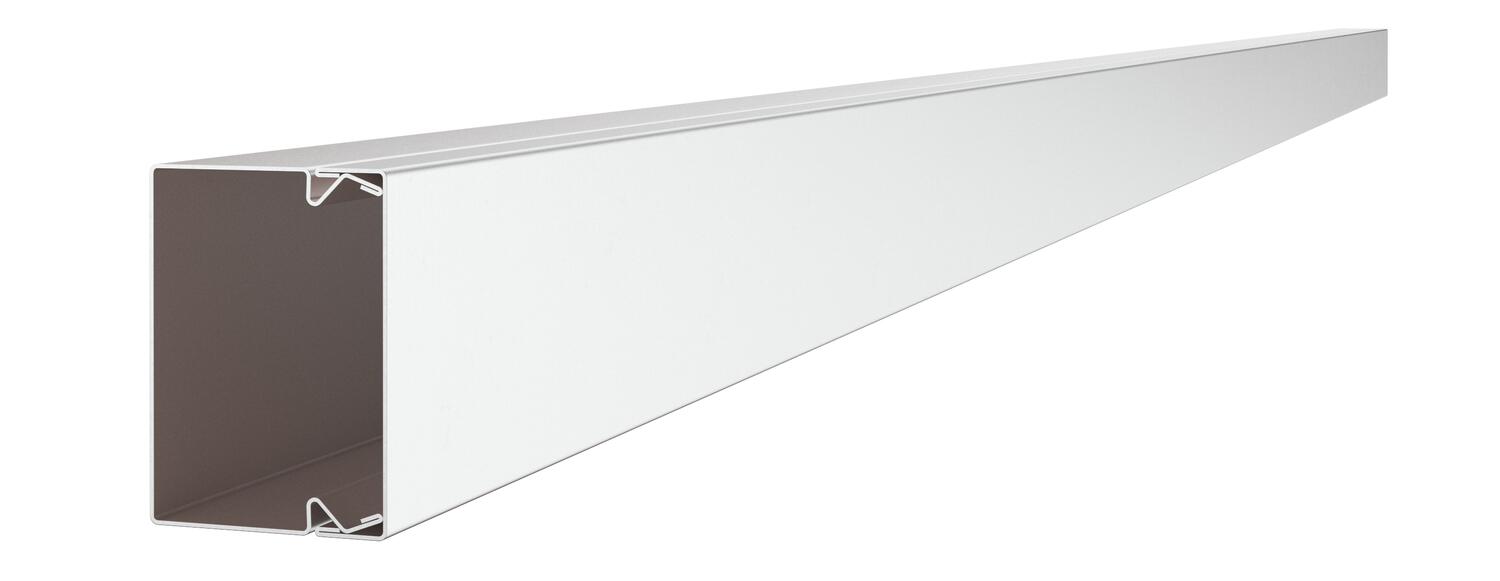

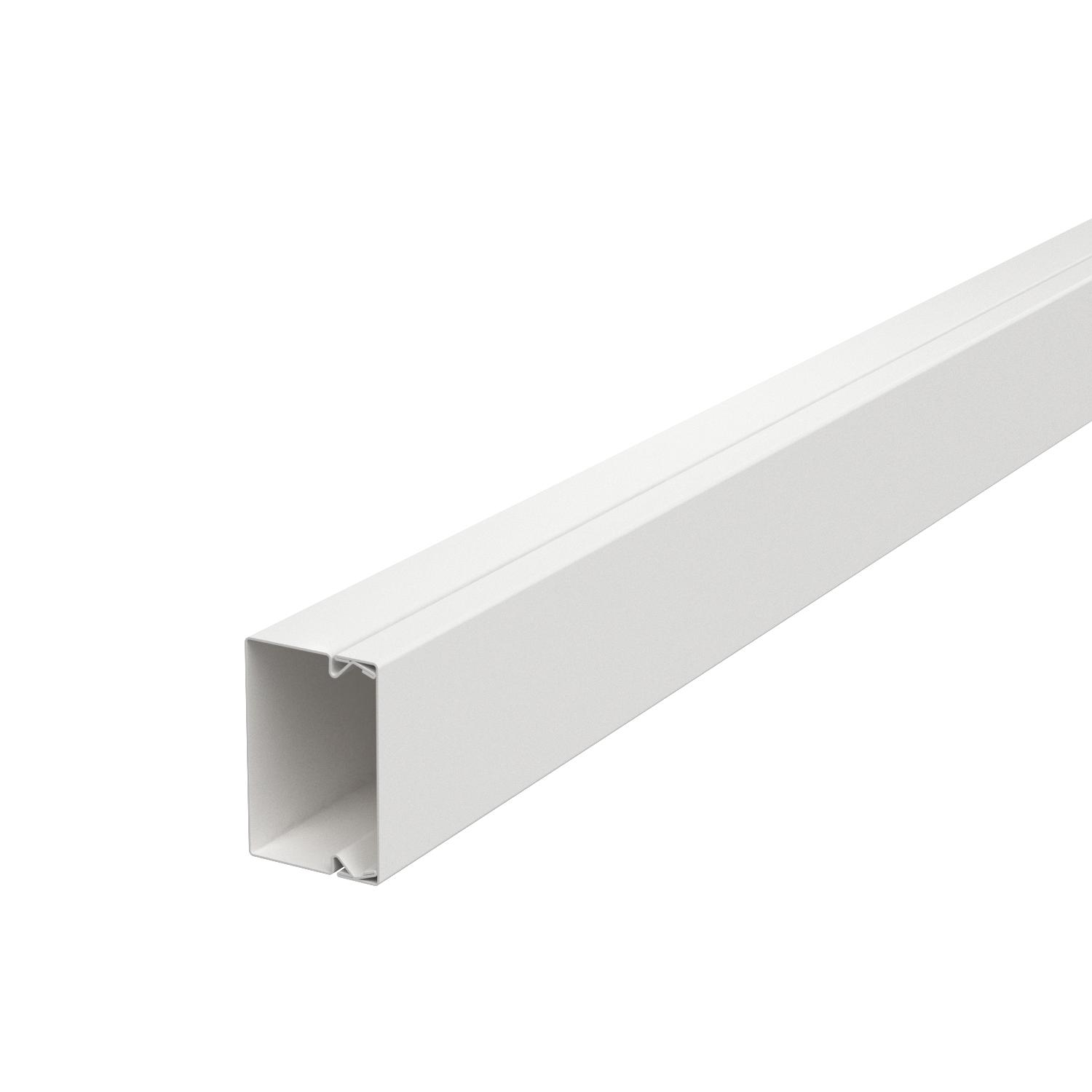

Cable duct, type LKM 40060

Item no. / Types

Length	2000 mm

Width	60 mm

Height	44 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Colour	Pure white; RAL 9010
CO₂ Footprint (GWP) Cradle-to-Gate	3,6763 kg CO₂e / 1 Meter

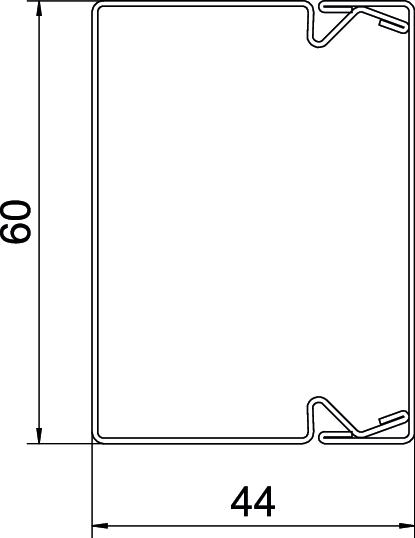

Dimension	40x60x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	44 mm
Length	2000 mm

Maintain electrical functions	no
Material	Steel
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized / plastic coated
Usable cross-section	2385 mm²
Version, cable trunking cover	Loose
Width	60 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM40060FS	2000 mm	60 mm	44 mm	Strip galvanized	Steel	6247016	m	8 m
LKM40060RW	2000 mm	60 mm	44 mm	Strip galvanized / plastic coated	Steel	6248519	m	8 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV40	LKM SV40	6247458	piece	10 piece
Edge protection ring KSR 40060, for LKM cable duct type 40060	LKM KSR40060	6249750	piece	5 piece

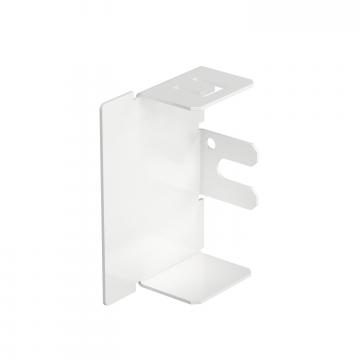

End piece, for cable trunking type LKM 40060	LKM E40060RW	6249426	piece	10 piece
End piece, for cable trunking type LKM 60100	LKM EK40060	6249780	piece	5 piece
External corner, for cable routing duct, type LKM 40060	LKM A40060RW	6249094	piece	1 piece

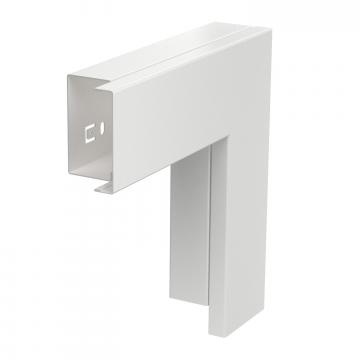

Flat angle, for cable trunking type LKM 40060	LKM F40060RW	6249000	piece	1 piece

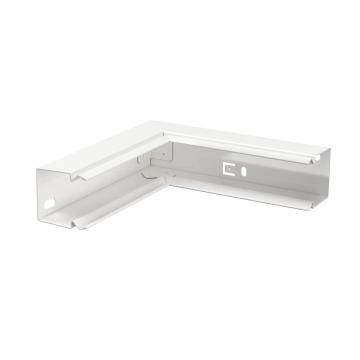

Internal corner, for cable trunking type LKM 40060	LKM I40060RW	6249175	piece	1 piece

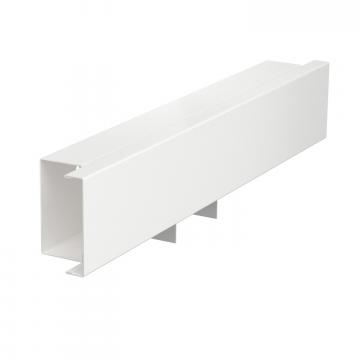

T piece, for cable trunking type LKM 40060	LKM T40060RW	6249264	piece	1 piece
