Cable duct, type LKM 60100 2000 | 100 | 64 | | Strip galvanized | Steel

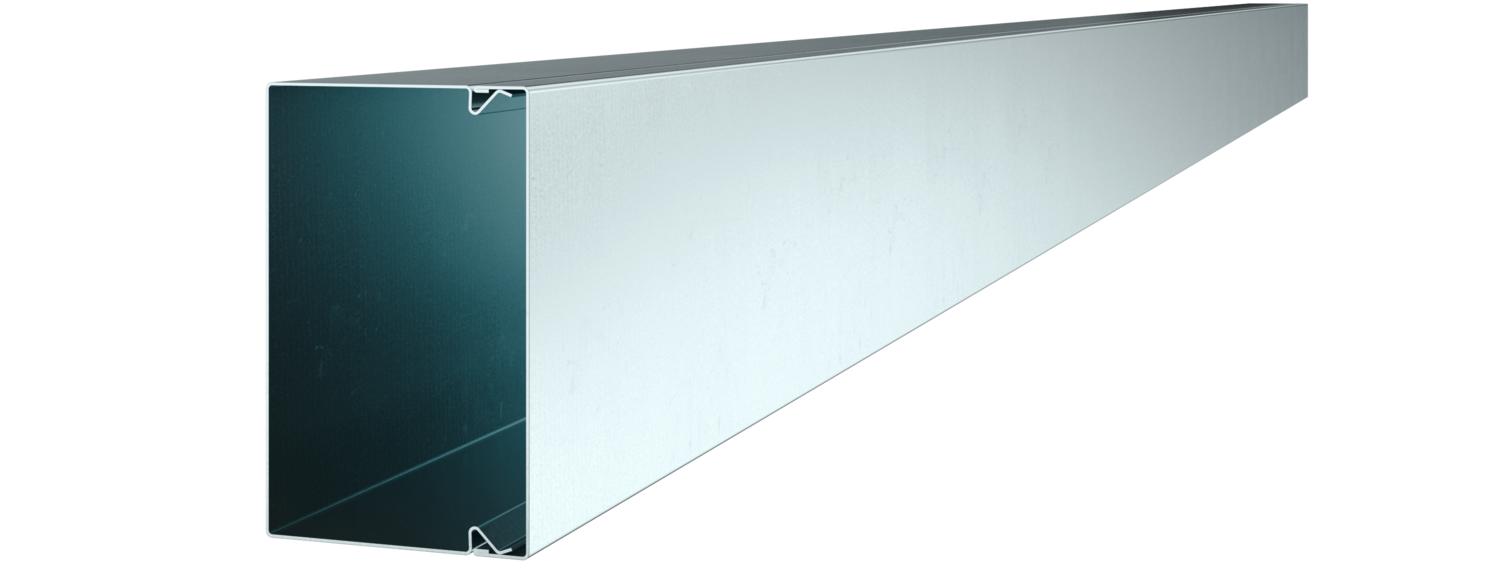

Cable duct, type LKM 60100

Item no. 6247113 | EAN 4012196312139

Item no. / Types

Length	2000 mm

Width	100 mm

Height	64 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation. Equipotential bonding is guaranteed between the cover and the base without any additional aids. The LKM cable duct, type LKM 60100, has been tested for the maintenance of electrical function as a routing system according to DIN 4102 Part 12. Please note the cable types tested in the BSS fire protection systems division!
The base contains loop perforation allowing the attachment of the partition.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	5,1786 kg CO₂e / 1 Meter

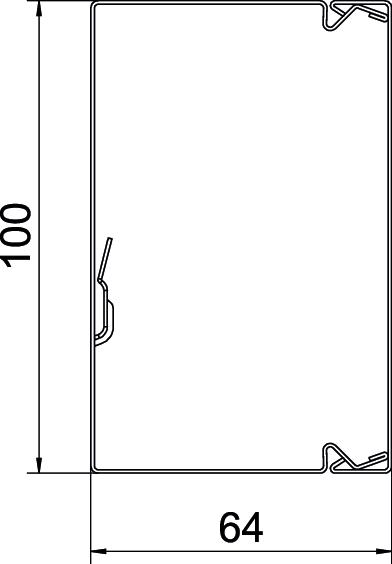

Dimension	60x100x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	64 mm
Length	2000 mm
Maintain electrical functions	yes

Material	Steel
Number of insertable partitions	1
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Usable cross-section	5676 mm²
Version, cable trunking cover	Loose
Width	100 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM60100FS	2000 mm	100 mm	64 mm	Strip galvanized	Steel	6247113	m	8 m
LKM60100RW	2000 mm	100 mm	64 mm	Strip galvanized / plastic coated	Steel	6248624	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV60	LKM SV60	6247466	piece	10 piece

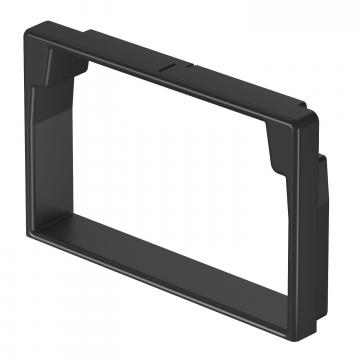

Edge protection ring KSR 60100, for LKM cable duct type 60100	LKM KSR60100	6249754	piece	5 piece

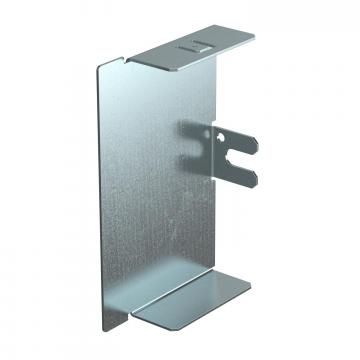

End piece, for cable duct type LKM 60100	LKM E60100FS	6248306	piece	10 piece

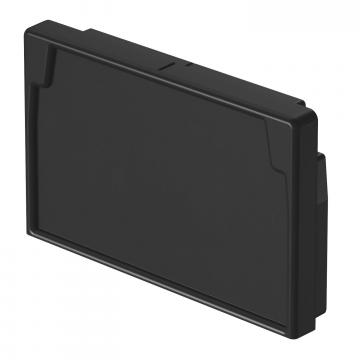

End piece, for cable trunking type LKM 60100	LKM EK60100	6249784	piece	5 piece
Partition LKM/TWS45	LKM TWS45	6249871	m	2 m
Partition LKM TWS55	LKM TWS55	6249876	m	32 m

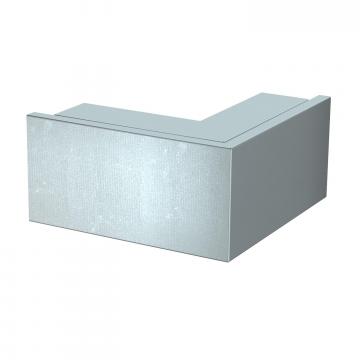

External corner, for cable duct type LKM 60100	LKM A60100FS	6248063	piece	1 piece

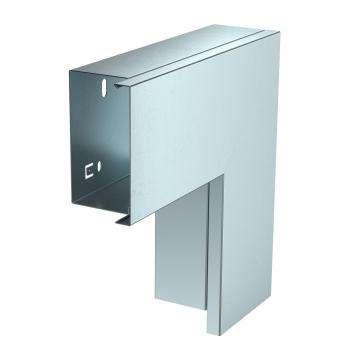

Flat angle, for cable duct type LKM 60100	LKM F60100FS	6248004	piece	1 piece

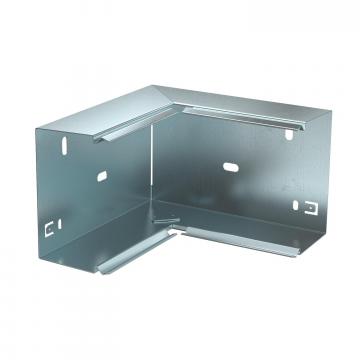

Internal corner, for cable duct type LKM 60100	LKM I60100FS	6248144	piece	1 piece

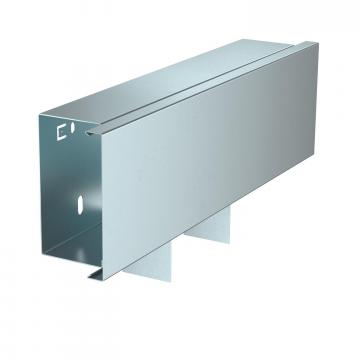

T piece for cable duct type LKM 60100	LKM T60100FS	6248209	piece	1 piece

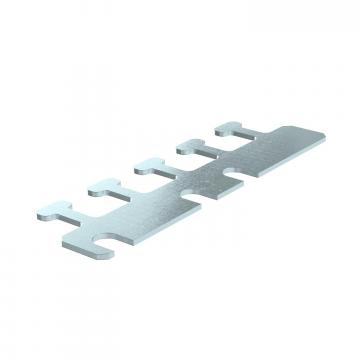

LKM cable bracket, duct width 100 mm	LKM Z100	6249922	piece	10 piece

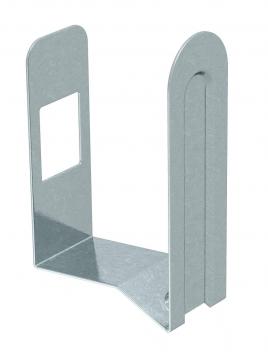

Trunking clamp, LKM, trunking width 100 mm	LKM K80	6249884	piece	20 piece

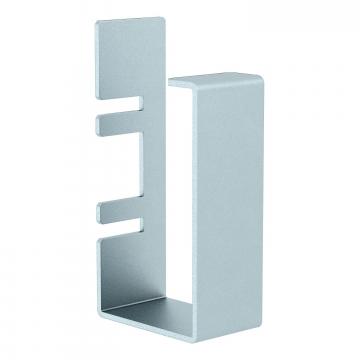

Duct clamp, LKM, for the maintenance of electrical function E30–E90, for LKM cable duct LKM 80080	LKM KF60100	6249881	piece	10 piece
