Cable eye stiffener A4

Item no. 5301184 | EAN 4012195901105

Item no. / Types

for cable diameter, min.

Product description

Product description

Cable eye stiffener to DIN 65457.

Technical data

Technical data

Dimension	10mm
for cable diameter, min.	10 mm
Material	Stainless steel

Surface	Bright, treated
Version for	Not insulated

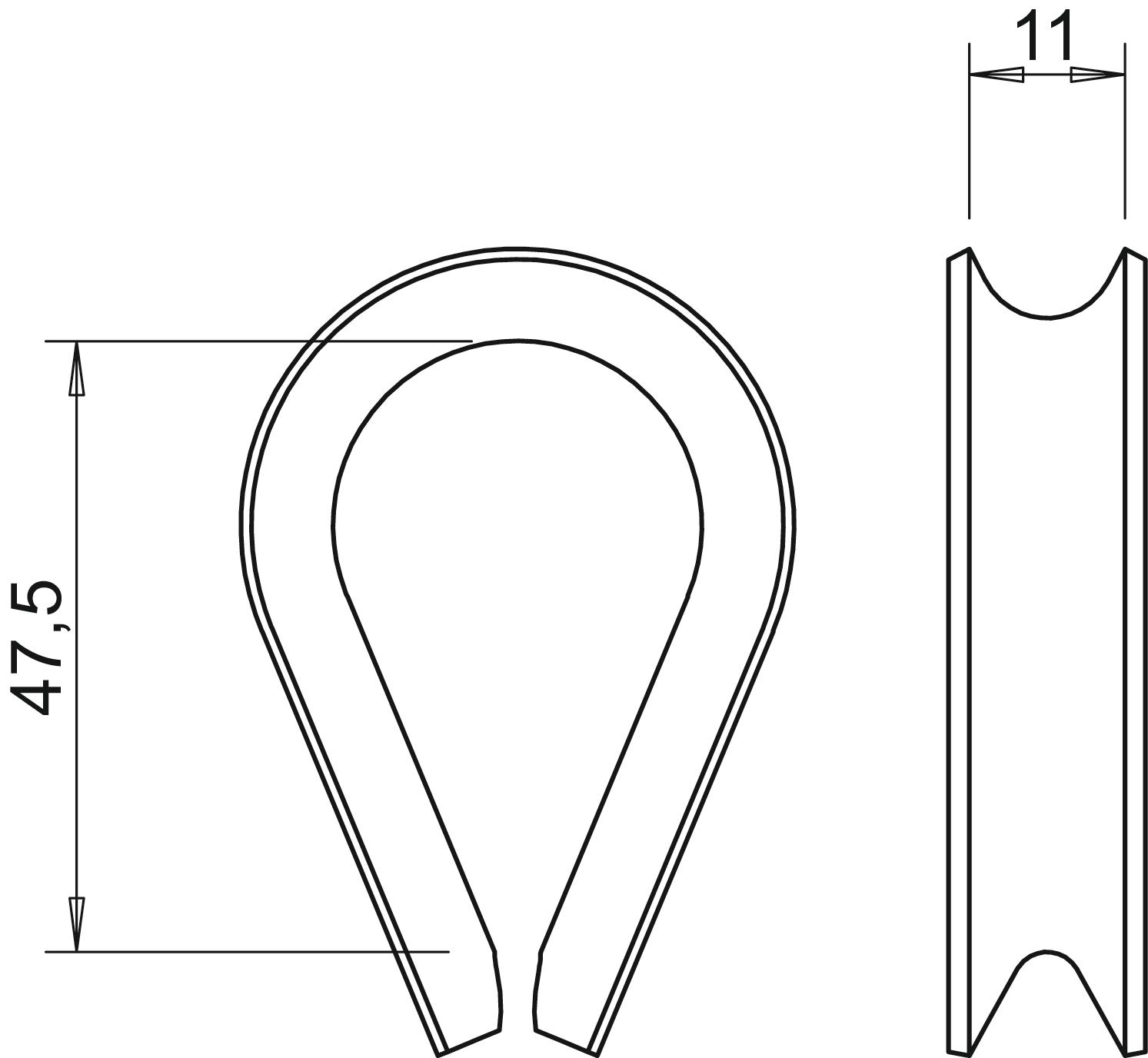

Dimensions

Dimension A	47,5 mm

Dimension B	11 mm

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
946 3 A4	3 mm	5301170	piece	25 piece
946 4 A4	4 mm	5301172	piece	25 piece
946 5 A4	5 mm	5301174	piece	25 piece
946 6 A4	6 mm	5301176	piece	25 piece
946 8 A4	8 mm	5301180	piece	10 piece
946 10 A4	10 mm	5301184	piece	10 piece

Downloads

Data sheet 946 10 A4 / 5301184 , 0.20MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 946 10 A4 / 5301184 , 0.06MB , pdf

Download

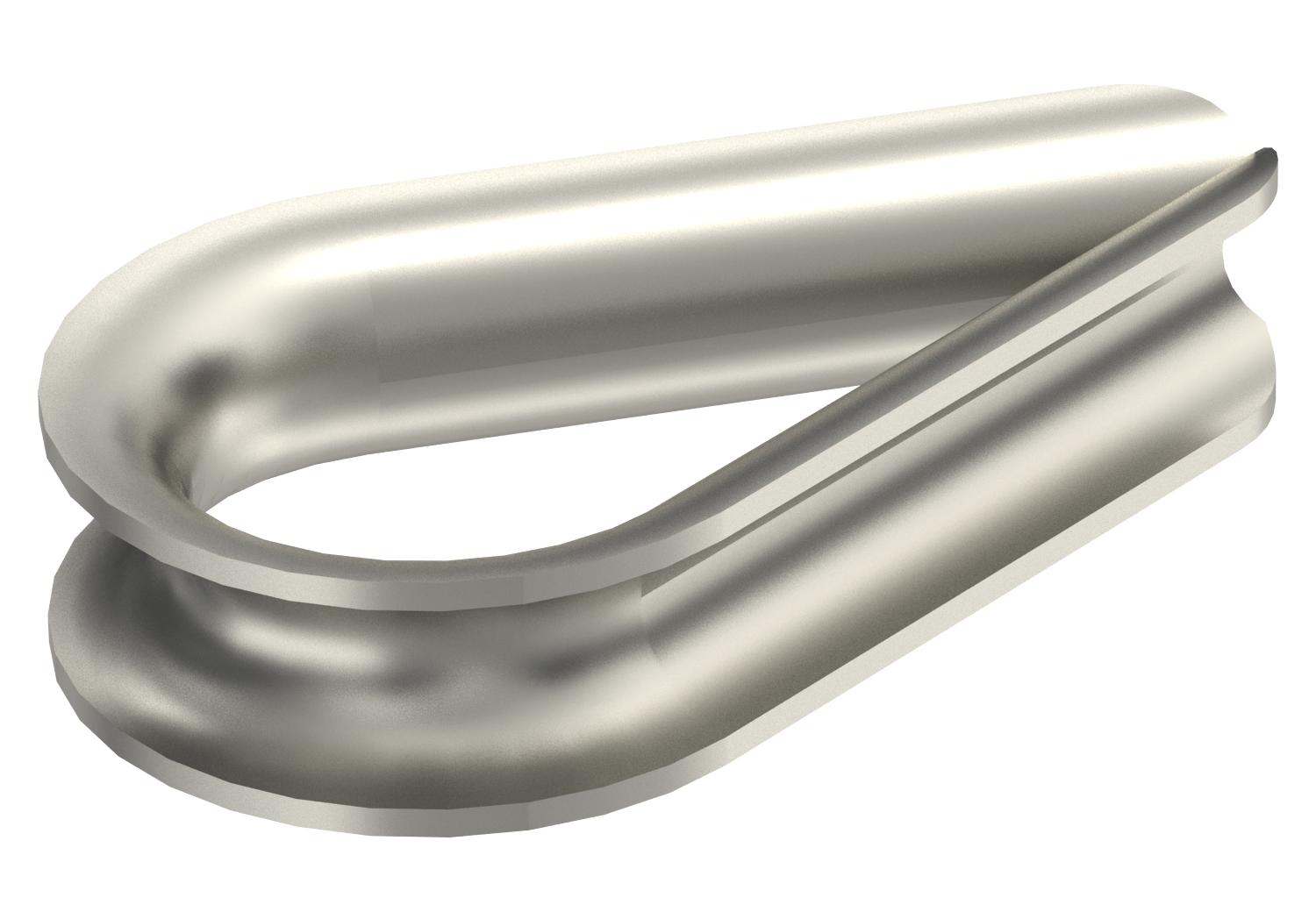

Product graphic 946 10 A4 / 5301184, 74.81 kB, jpg

Scale drawing 946 10 A4 / 5301184, 83.13 kB, jpg

946 10 A4 / 5301184
