Cable eye stiffener A4

Item no. 5301170 | EAN 4012195901020

Item no. / Types

for cable diameter, min.

Product description

Product description

Cable eye stiffener to DIN 65457.

Technical data

Technical data

Dimension	3mm
for cable diameter, min.	3 mm
Material	Stainless steel

Surface	Bright, treated
Version for	Not insulated

Dimensions

Dimension A	23,5 mm

Dimension B	3,5 mm

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
946 3 A4	3 mm	5301170	piece	25 piece
946 4 A4	4 mm	5301172	piece	25 piece
946 5 A4	5 mm	5301174	piece	25 piece
946 6 A4	6 mm	5301176	piece	25 piece
946 8 A4	8 mm	5301180	piece	10 piece
946 10 A4	10 mm	5301184	piece	10 piece

Downloads

Data sheet 946 3 A4 / 5301170 , 0.24MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 946 3 A4 / 5301170 , 0.06MB , pdf

Download

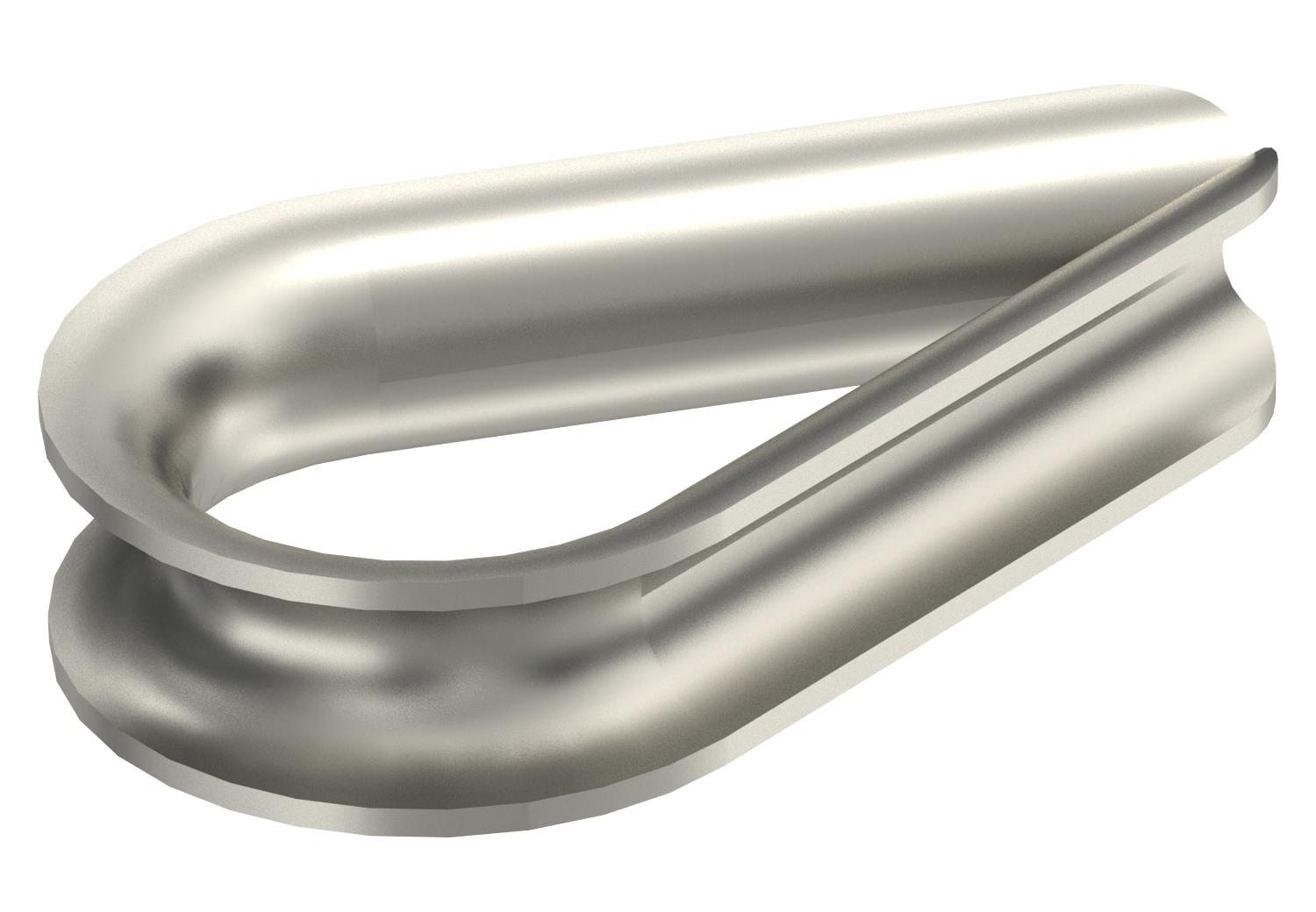

Product graphic 946 3 A4 / 5301170, 74.81 kB, jpg

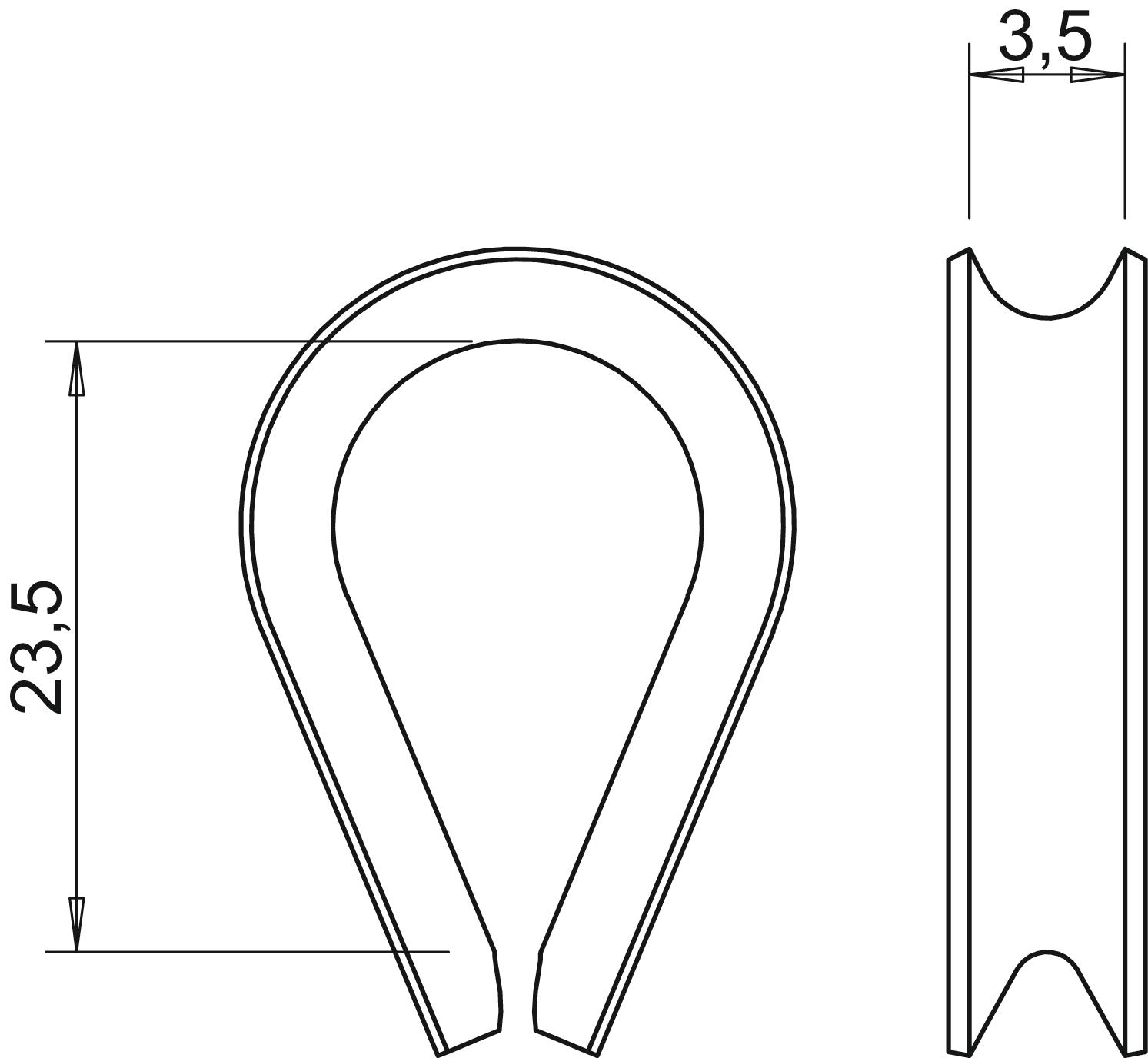

Scale drawing 946 3 A4 / 5301170, 84.99 kB, jpg

946 3 A4 / 5301170
