Cable eye stiffener A4

Item no. 5301174 | EAN 4012195901075

Item no. / Types

for cable diameter, min.

Product description

Product description

Cable eye stiffener to DIN 65457.

Technical data

Technical data

Dimension	5mm
Dimension A	30 mm
Dimension B	6 mm
for cable diameter, min.	5 mm

Material	Stainless steel
Surface	Bright, treated
Version for	Not insulated

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
946 3 A4	3 mm	5301170	piece	25 piece
946 4 A4	4 mm	5301172	piece	25 piece
946 5 A4	5 mm	5301174	piece	25 piece
946 6 A4	6 mm	5301176	piece	25 piece
946 8 A4	8 mm	5301180	piece	10 piece
946 10 A4	10 mm	5301184	piece	10 piece

Downloads

Data sheet 946 5 A4 / 5301174 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 946 5 A4 / 5301174 , 0.06MB , pdf

Download

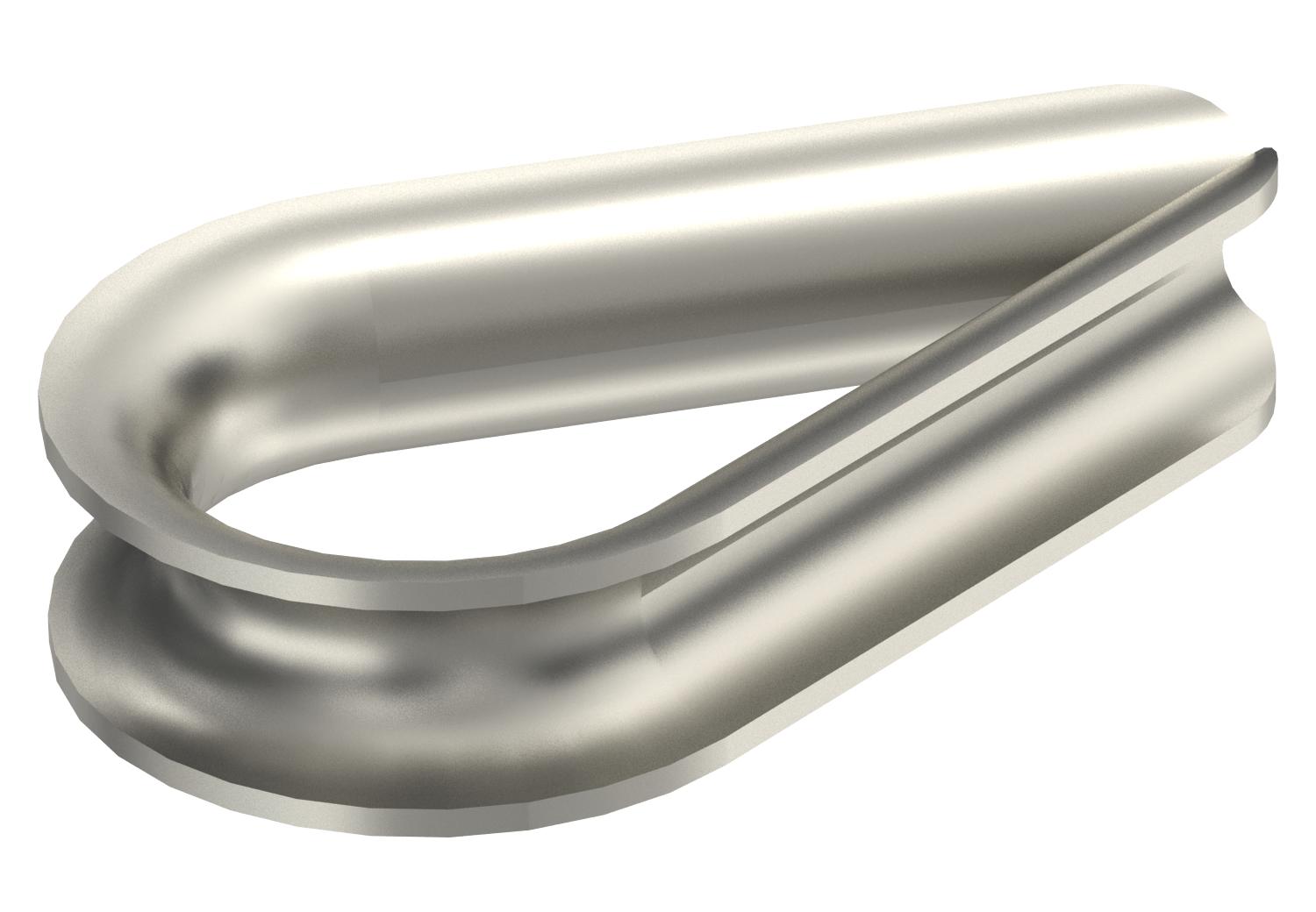

Product graphic 946 5 A4 / 5301174, 74.81 kB, jpg

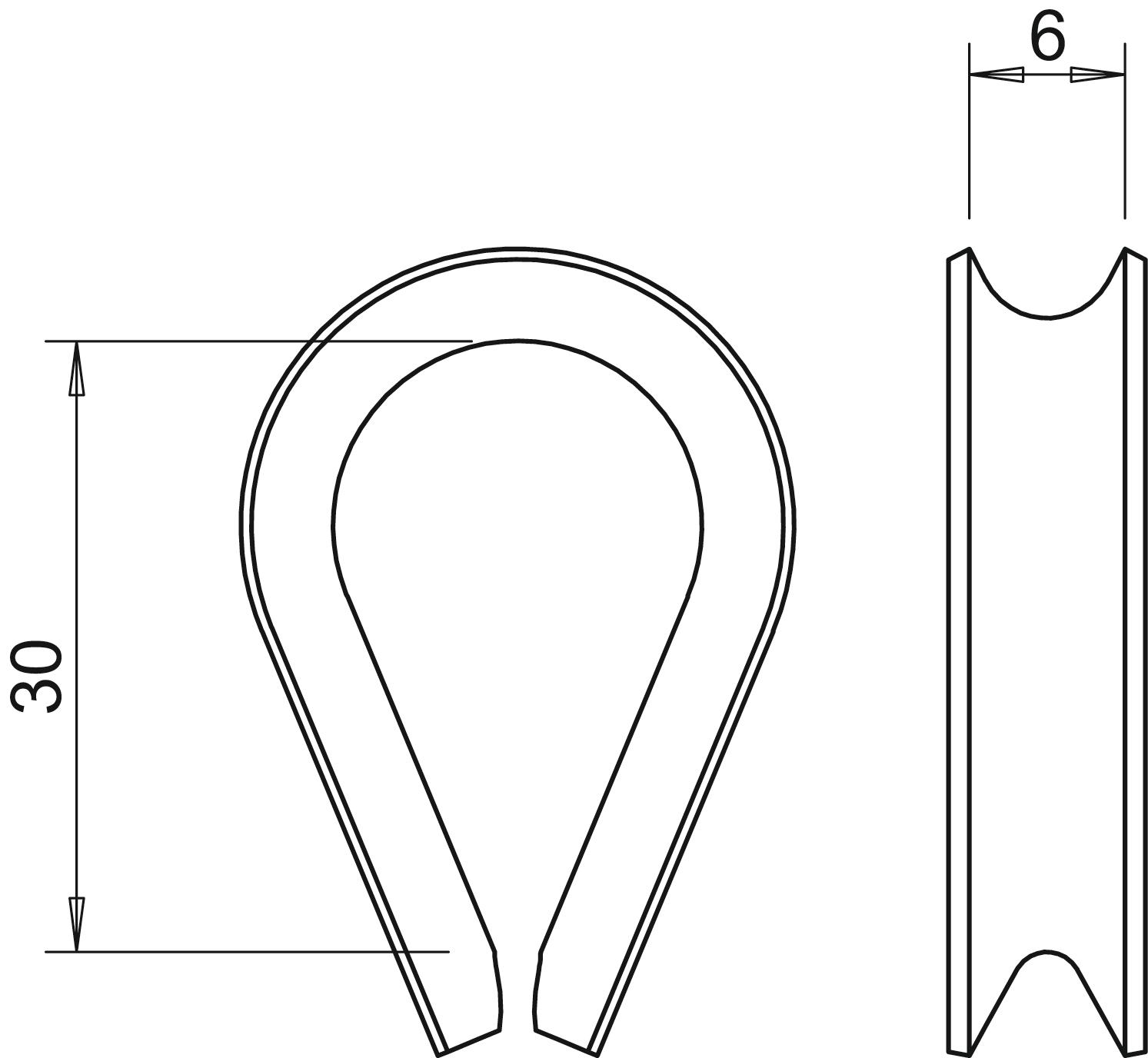

Scale drawing 946 5 A4 / 5301174, 82.73 kB, jpg
