Cable eye stiffener G 4

morepic-1

morepic-2

Cable eye stiffener G

Item no. 5301041 | EAN 4012195414018

Item no. / Types

for cable diameter, min.

Product description

Product description

Cable eye stiffener to DIN 65457.

Technical data

Technical data

Dimension	4mm
Dimension A	28,5 mm
Dimension B	5 mm

for cable diameter, min.	4 mm
Material	Steel
Surface	Electrogalvanized

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
946 5 G	5 mm	5301009	piece	25 piece
946 3 G	3 mm	5301033	piece	25 piece
946 4 G	4 mm	5301041	piece	25 piece
946 6 G	6 mm	5301068	piece	25 piece
946 8 G	8 mm	5301084	piece	10 piece
946 10 FT	10 mm	5301106	piece	10 piece

Downloads

Data sheet 946 4 G / 5301041 , 0.11MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 946 4 G / 5301041 , 0.06MB , pdf

Download

REACH Declaration of conformity 946 4 G / 5301041 , 0.12MB , pdf

Download

RoHS Declaration of conformity 946 4 G / 5301041 , 0.12MB , pdf

Download

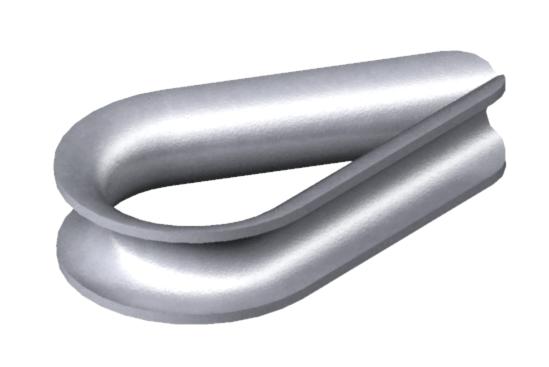

Product graphic 946 4 G / 5301041, 15.93 kB, jpg

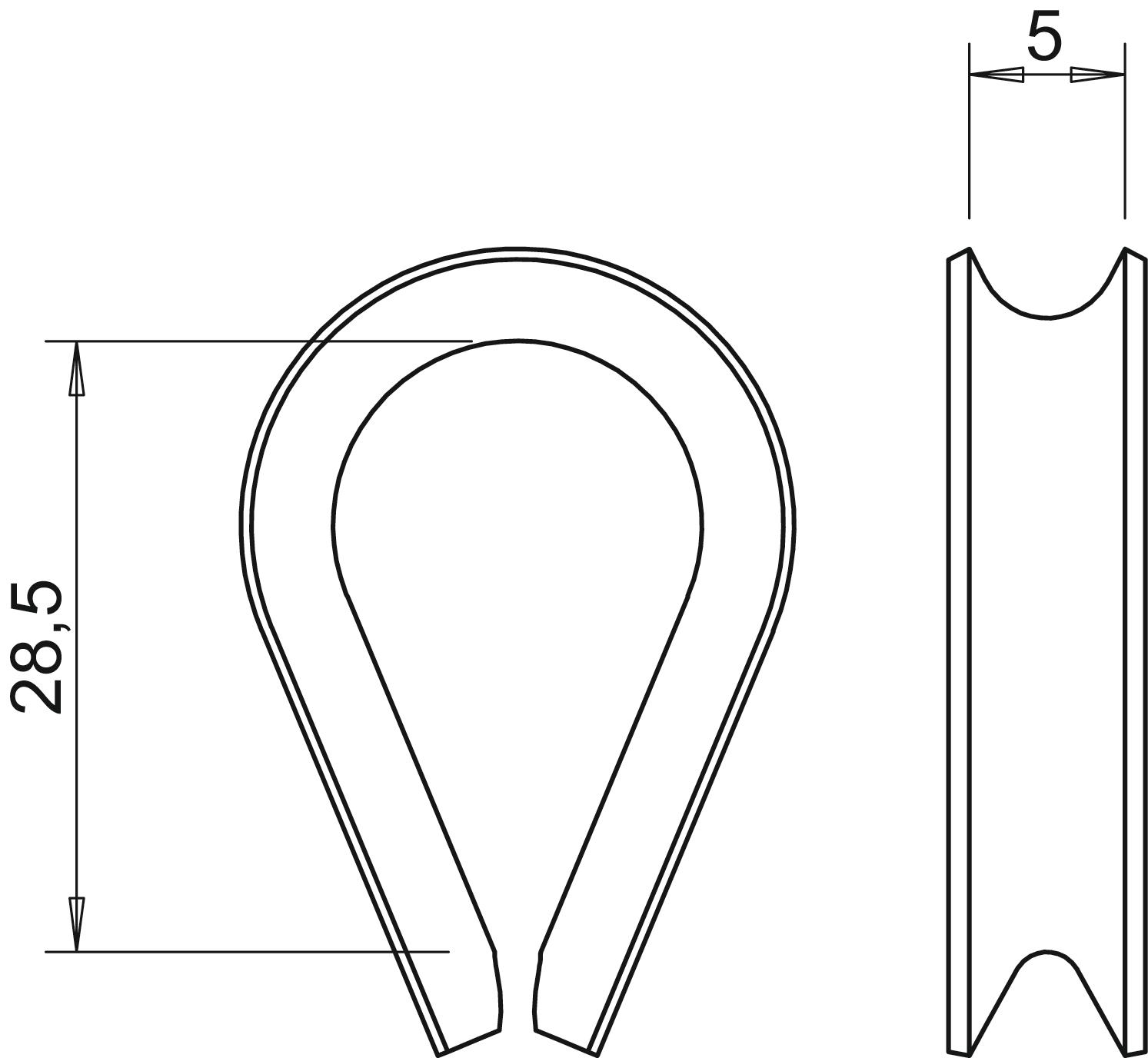

Scale drawing 946 4 G / 5301041, 83.98 kB, jpg

946 4 G / 5301041
