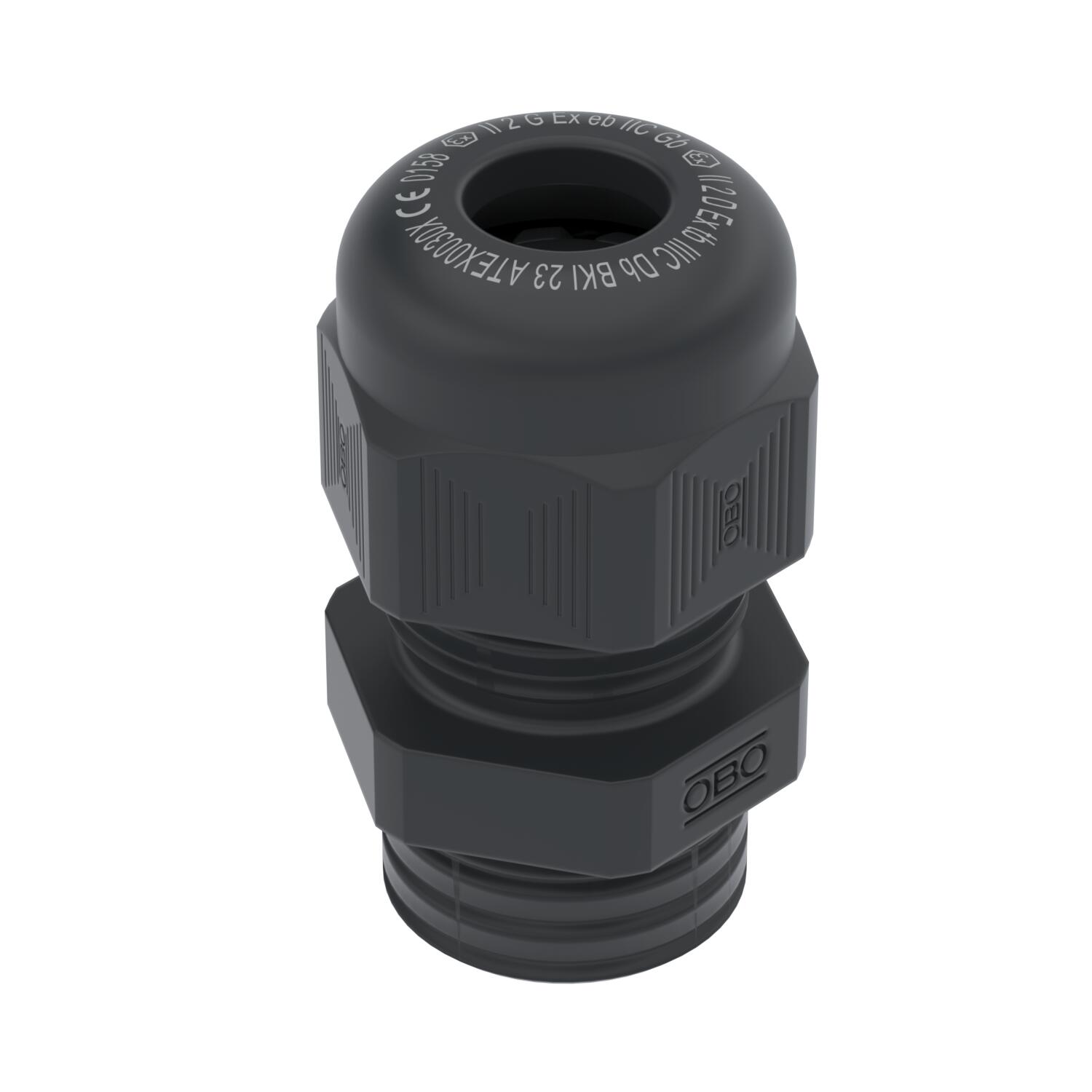

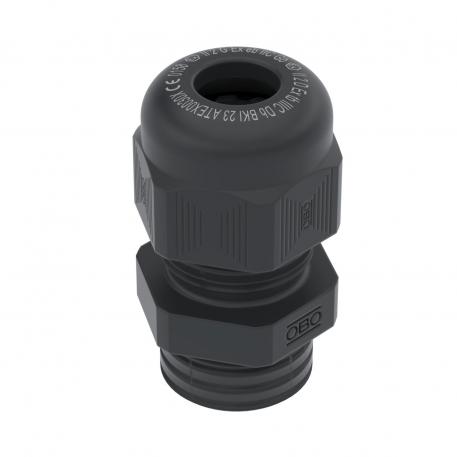

Cable gland, EX area, metric thread, black

Item no. 2050315 | EAN 4012195594857

no
Black
Product description

Product description

Cable gland with EU design type approval certificate for products and protection systems for use in accordance with the regulations in explosion-hazard area. Directive 2014/34/EU.

EU design type approval certificate number: BKI23ATEX0030 X.

With metric connecting thread to IEC 423.

Sealing ring of chloroprene/nitrile rubber, moulded sealing, so no connection thread sealing ring needed.

Protection IP 68 at 3 bar.
  • ATEX certificate for explosive areas
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Black
Dimension M16

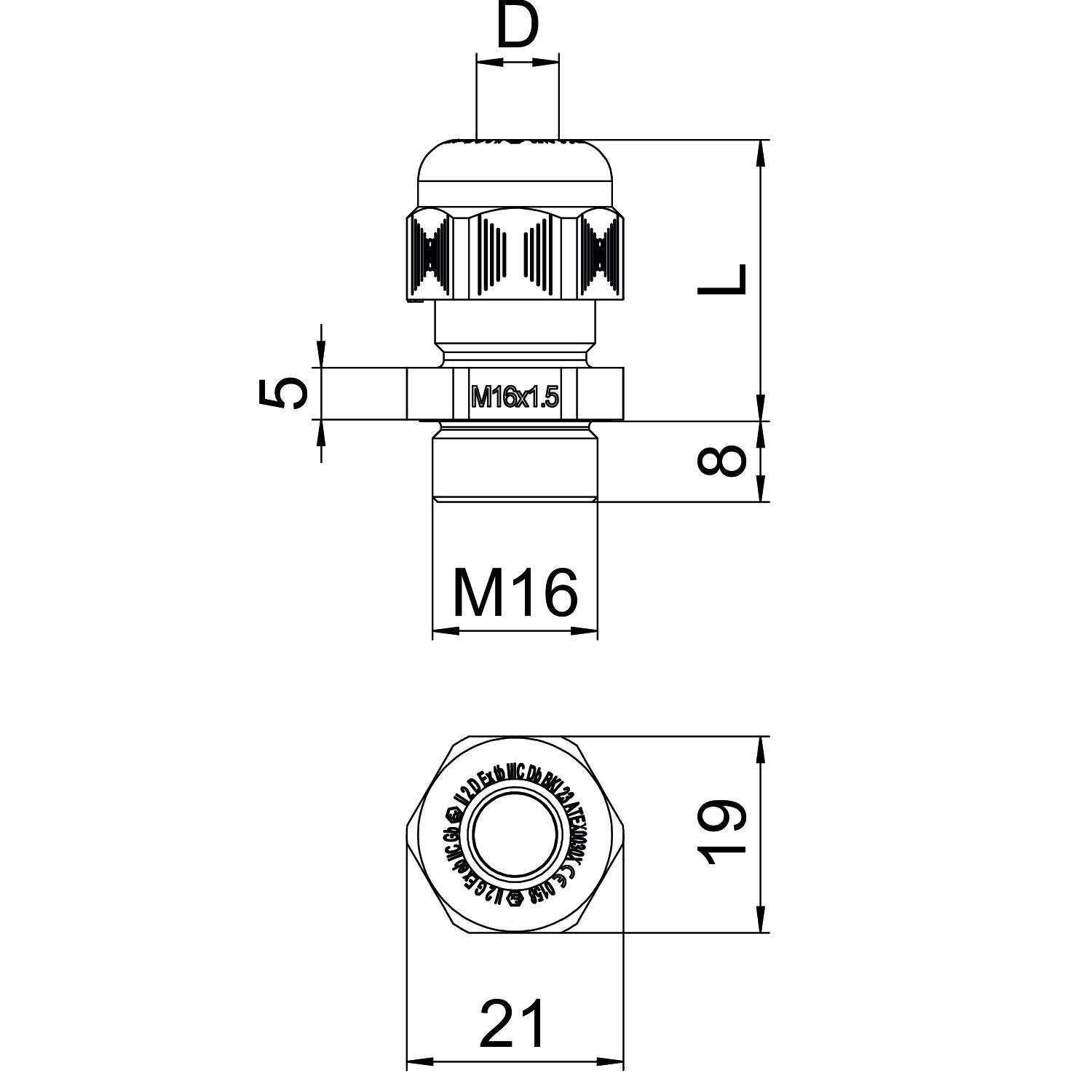

Dimension E 21 mm
Dimension G M16 mm
Dimension L max. 27 mm
Dimension L min. 21 mm
Dimension L1 8 mm
Dimension L2 5 mm
Dimension L3 15,5 mm
explosion-proof yes
Fibre-glass reinforced no
Flat cable gland no
For Ex zone yes
For Ex zone dust 21, 22
For Ex zone gas 1, 2
Halogen-free yes
Hexagonal corner dimension 21 mm
Impact-resistant no
Material Polyamide
Nominal thread size 16
Permitted temperature range, max. 40 °C
Permitted temperature range, min. -10 °C
Protection rating IP68
Sealing area D, max. 8 mm
Sealing area D, min. 5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread M16 x 1,5
Thread increase 1,5 mm
Thread length 8 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 2,75 Nm
Version for Straight
WAF 19
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
VTEC EX M16 SW M16 x 1,5 no Black 2050315
50 piece
VTEC EX M20 SW M20 x 1,5 no Black 2050323
50 piece
VTEC EX M25 SW M25 x 1,5 no Black 2050331
25 piece
VTEC EX M32 SW M32 x 1,5 no Black 2050358
20 piece
VTEC EX M40 SW M40 x 1,5 no Black 2050366
10 piece
VTEC EX M50 SW M50 x 1,5 no Black 2050374
5 piece
VTEC EX M63 SW M63 x 1,5 no Black 2050382
5 piece
