- Product description
-

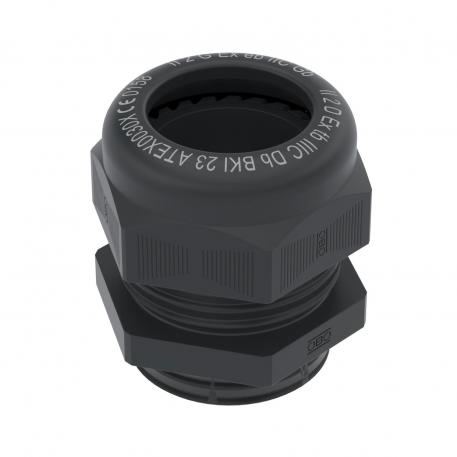

Product descriptionCable gland with EU design type approval certificate for products and protection systems for use in accordance with the regulations in explosion-hazard area. Directive 2014/34/EU.
EU design type approval certificate number: BKI23ATEX0030 X.
With metric connecting thread to IEC 423.
Sealing ring of chloroprene/nitrile rubber, moulded sealing, so no connection thread sealing ring needed.
Protection IP 68 at 3 bar.
- Technical data
-
Technical data

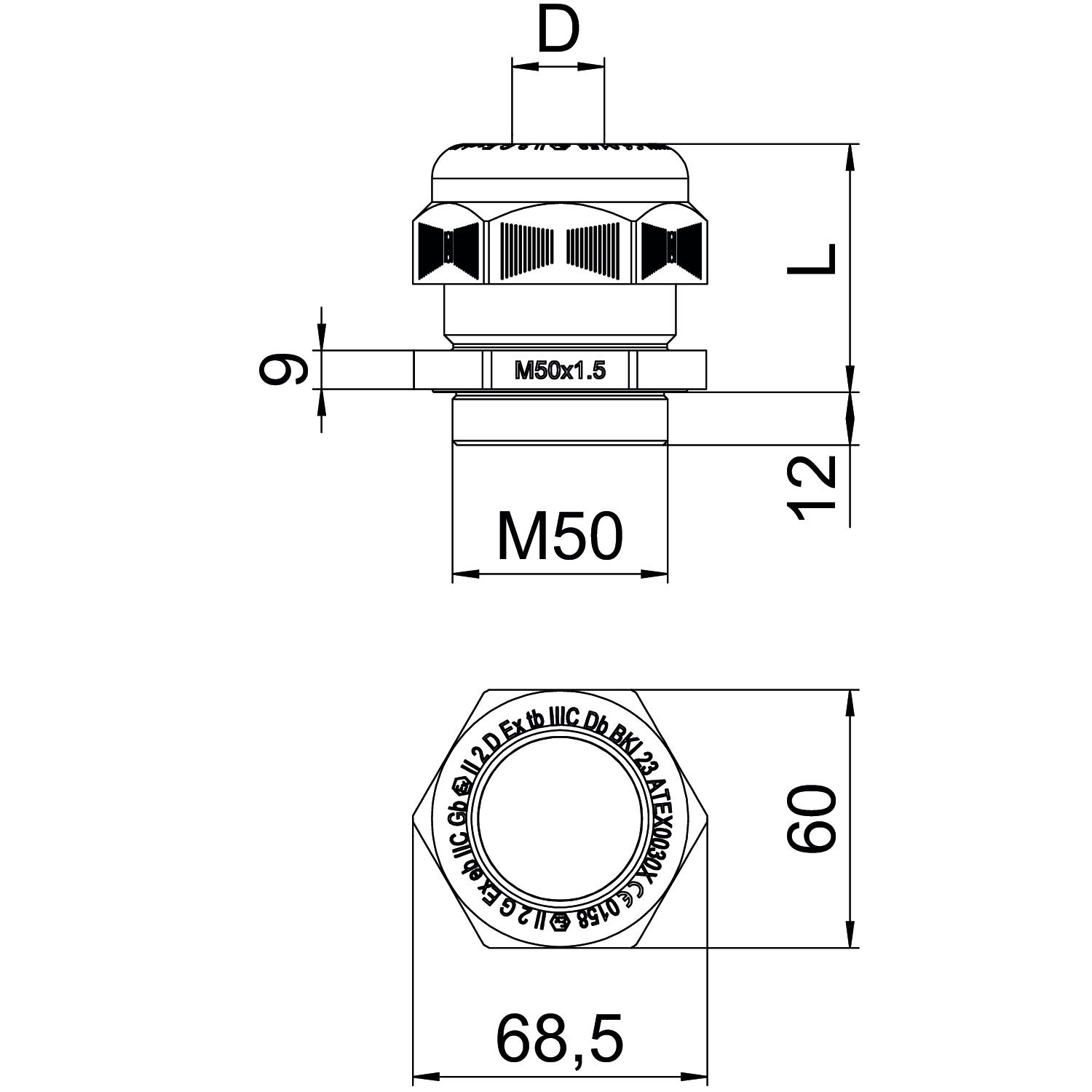

Bend protection no Colour Black Dimension M50 Dimension E 68,5 mm Dimension G M50 mm Dimension L max. 57 mm Dimension L min. 42 mm Dimension L1 13 mm Dimension L2 9 mm Dimension L3 32,5 mm explosion-proof yes Fibre-glass reinforced no Flat cable gland no For Ex zone yes For Ex zone dust 21, 22 For Ex zone gas 1, 2 Halogen-free yes Hexagonal corner dimension 68,5 mm Impact-resistant no Material Polyamide Nominal thread size 50 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 38 mm Sealing area D, min. 32 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread M50 x 1,5 Thread increase 1,5 mm Thread length 13 mm Thread type Metric Type of seal Sealing ring Unstable torque 17 Nm Version for Straight WAF 60 With locknut no - All types
-
All types
- Downloads
-
Data sheet VTEC EX M50 SW / 2050374 , 0.25MB , pdfEU declaration of conformity VTEC EX M50 SW / 2050374 , 2.92MB , pdfREACH Declaration of conformity VTEC EX M50 SW / 2050374 , 0.12MB , pdfRoHS Declaration of conformity VTEC EX M50 SW / 2050374 , 0.12MB , pdfCertificate VTEC EX M , 5.45MB , pdfMounting instructions VTEC EX M , 1.48MB , pdf
