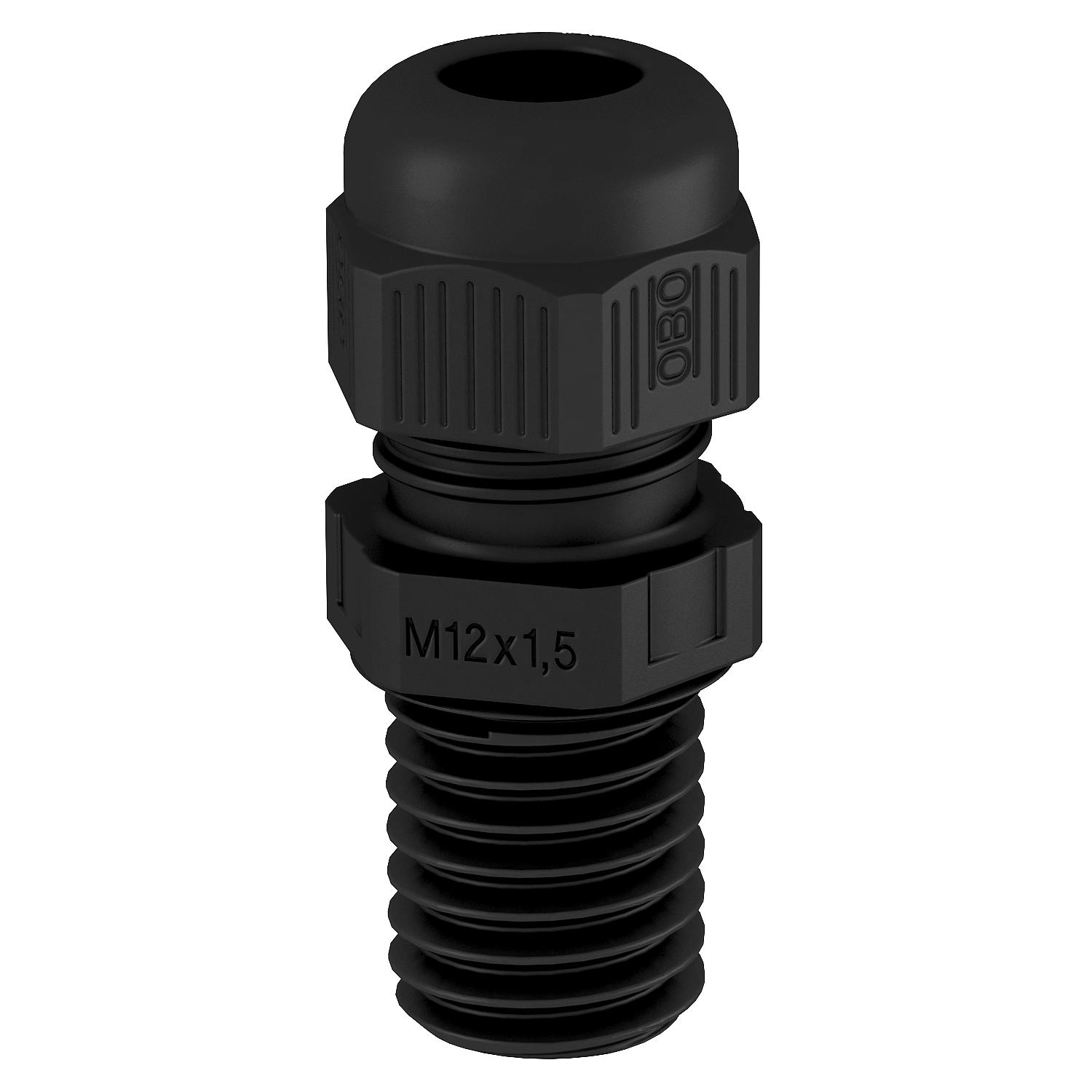

Cable gland, long metric thread, black | | M12 x 1,5 | no | Black

Cable gland, long metric thread, black

Item no. 2022964 | EAN 4012195004363

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Black

Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Technical data

Technical data

Bend protection	no
Colour	Black
Dimension	M12
Dimension E	16,5 mm
Dimension L max.	24 mm
Dimension L min.	17,5 mm
Dimension L1	15 mm
Dimension L2	5 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	16,5 mm
Impact-resistant	no
Material	Polyamide

Nominal thread size	12
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	7 mm
Sealing area D, min.	3,5 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M12 x 1,5
Thread increase	1,5 mm
Thread length	15 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	2 Nm
Version for	Straight
WAF	15
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC VM L12 SW	M12 x 1,5	no	Black	2022964	piece	50 piece
V-TEC VM L16 SW	M16 x 1,5	no	Black	2022966	piece	50 piece
V-TEC VM L20 SW	M20 x 1,5	no	Black	2022968	piece	50 piece
V-TEC VM L25 SW	M25 x 1,5	no	Black	2022970	piece	25 piece
V-TEC VM L32 SW	M32 x 1,5	no	Black	2022972	piece	20 piece
V-TEC VM L40 SW	M40 x 1,5	no	Black	2022974	piece	10 piece
V-TEC VM L50 SW	M50 x 1,5	no	Black	2022976	piece	5 piece
V-TEC VM L63 SW	M63 x 1,5	no	Black	2022978	piece	5 piece
