Product description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
- Technical data
-
Technical data

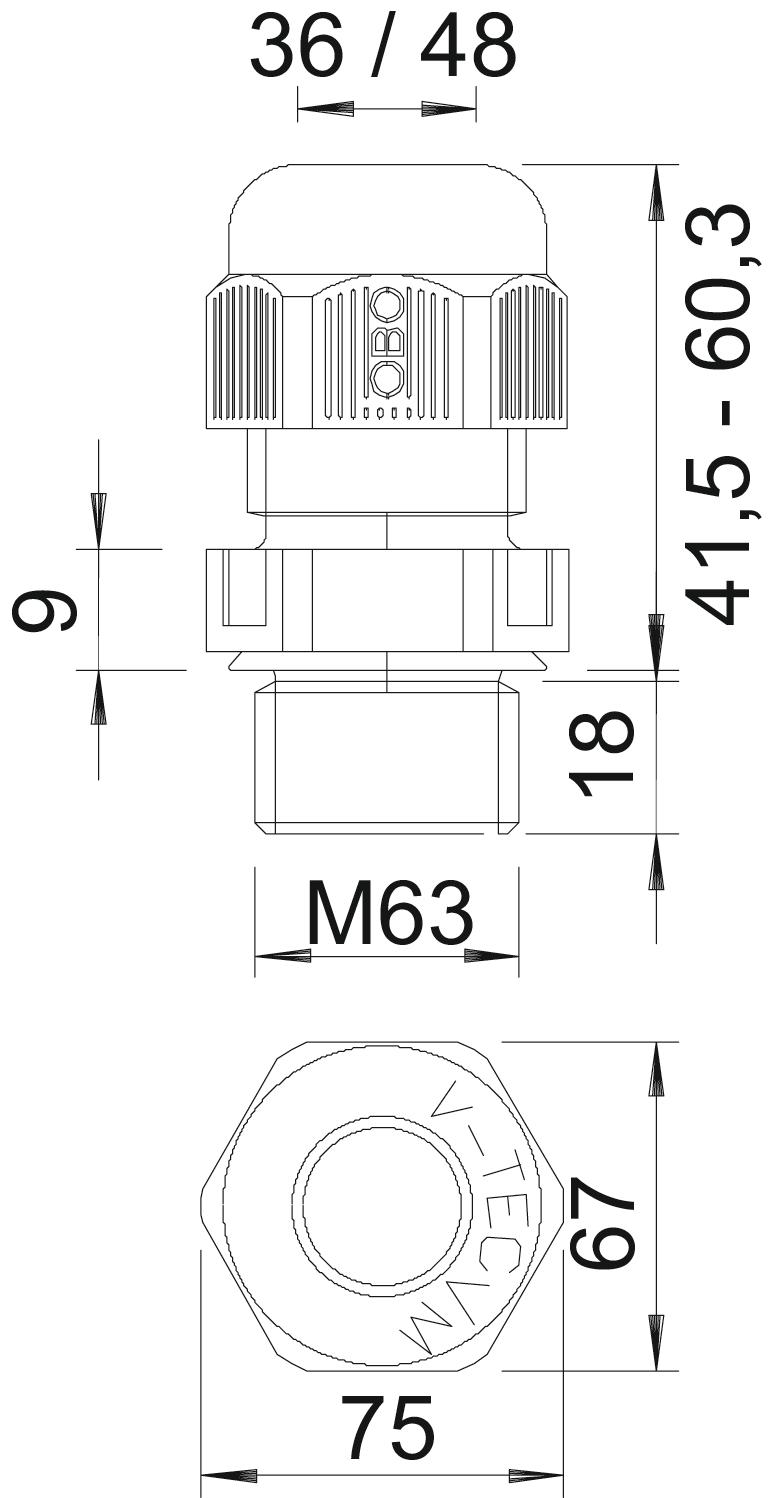

Bend protection no Colour Black Dimension M63 Dimension E 75 mm Dimension L max. 60,3 mm Dimension L min. 41,5 mm Dimension L1 18 mm Dimension L2 9 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 75 mm Impact-resistant no Material Polyamide Nominal thread size 63 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 48 mm Sealing area D, min. 36 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M63 x 1,5 Thread increase 1,5 mm Thread length 18 mm Thread type Metric Type of seal Sealing ring Unstable torque 12 Nm Version for Straight WAF 68 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM L63 SW / 2022978 , 0.29MB , pdfDeclaration of conformity V-TEC VM L63 SW / 2022978 , 0.11MB , pdfREACH Declaration of conformity V-TEC VM L63 SW / 2022978 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM L63 SW / 2022978 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdfLabel approval VDE symbol approval, V-TEC VM, V-TEC VML , 0.17MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdf
