Cable gland, metric thread, light grey
Item no. 2022370 | EAN 4012195874096
- Product description
-
Product description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Table column D: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: sealing range including strain relief and twist protection to VDE 0619
-
- Technical data
-
Technical data

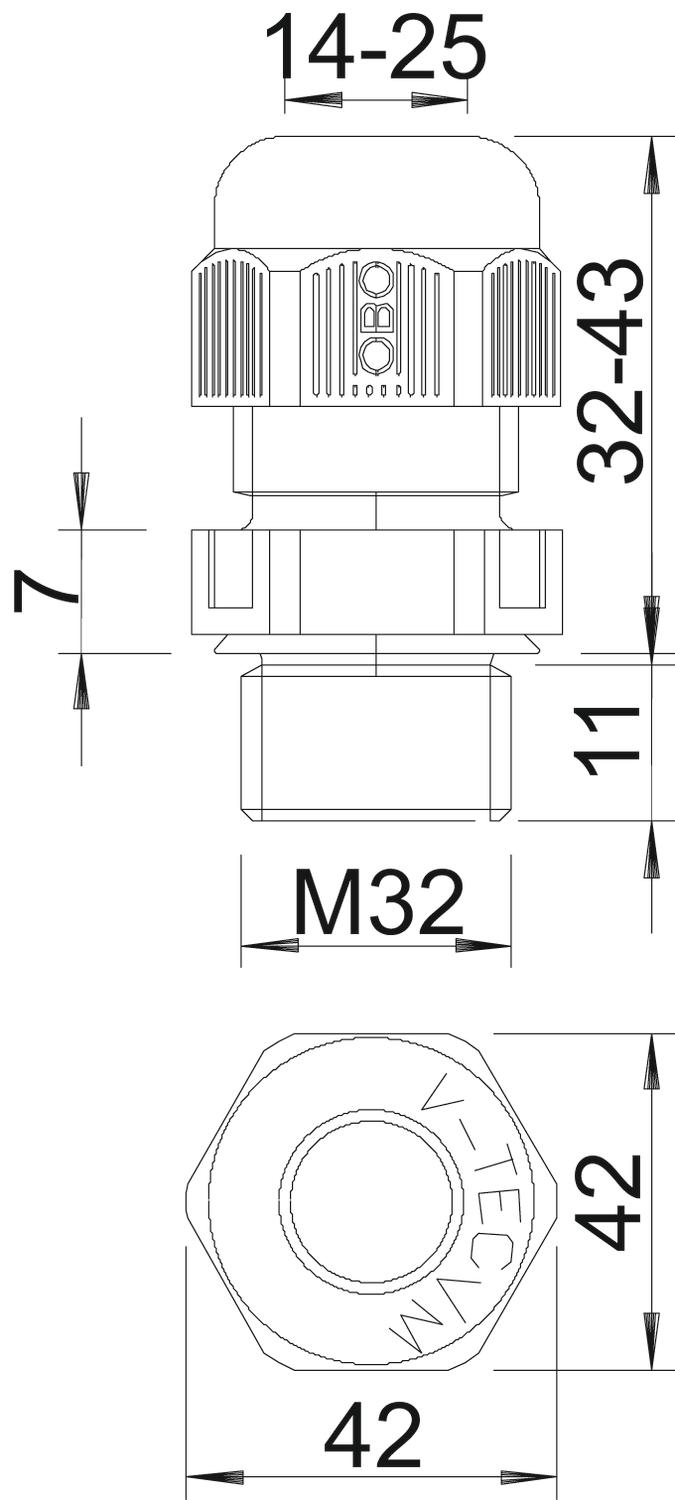

Bend protection no Colour Light grey; RAL 7035 Dimension M32 Dimension L max. 43 mm Dimension L min. 32 mm Dimension L1 11 mm Dimension L2 7 mm Dimension L3 24,5 mm Dimension L4 14 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free yes Impact-resistant no Material Polyamide Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 25 mm Sealing area D, min. 14 mm Sealing insert, multiple no Strain relief option yes Thread M32 x 1,5 Thread type Metric Type of seal Sealing ring Version for Straight WAF 42 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC M32 LGR / 2022370 , 0.28MB , pdfREACH Declaration of conformity V-TEC M32 LGR / 2022370 , 0.12MB , pdfRoHS Declaration of conformity V-TEC M32 LGR / 2022370 , 0.12MB , pdf
