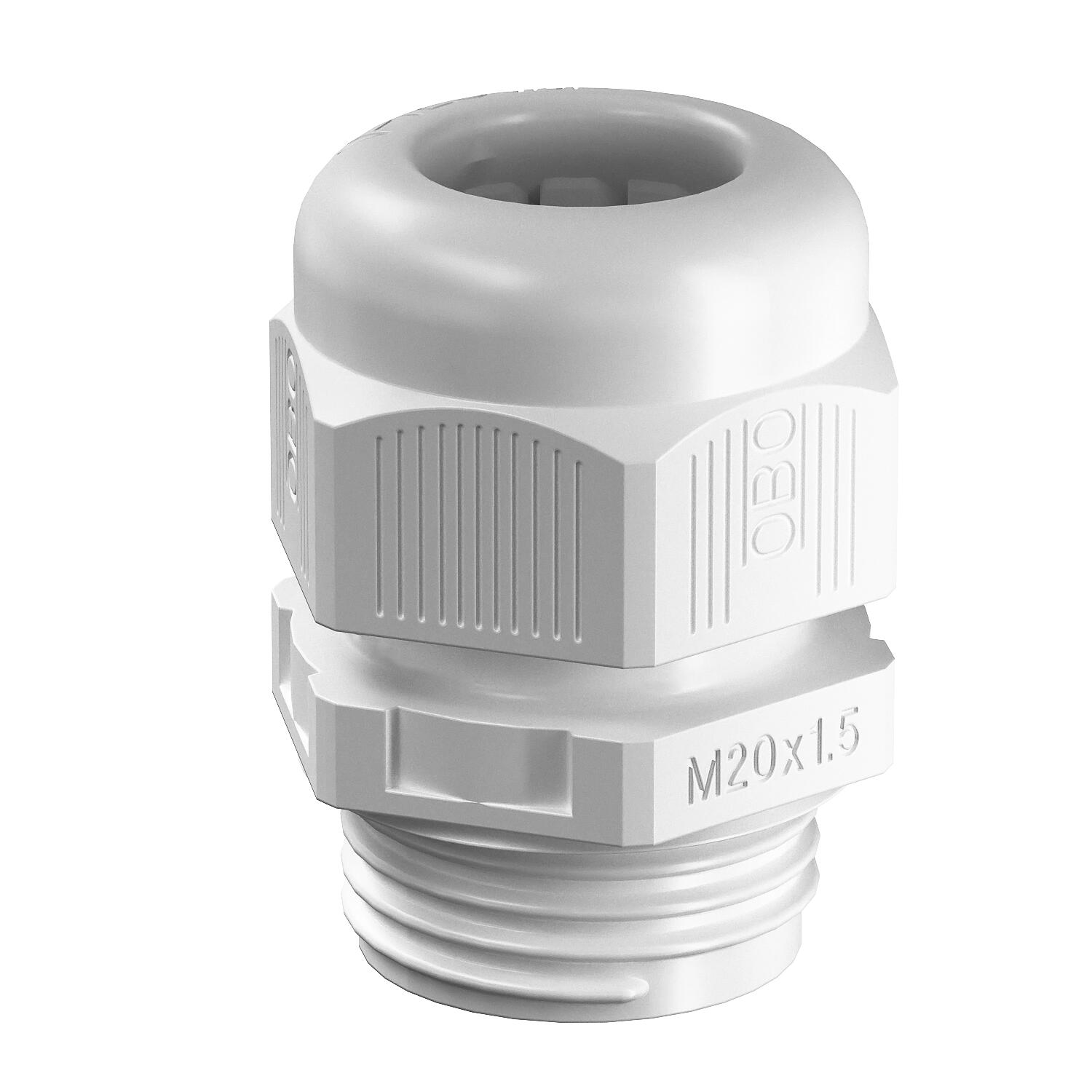

Cable gland, metric thread, pure white

Item no. 2022804 | EAN 4012195818939

2022804 / V-TEC VM20 RW
M20 x 1,5
no
Pure white; RAL 9010
Product description
Product description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Pure white; RAL 9010

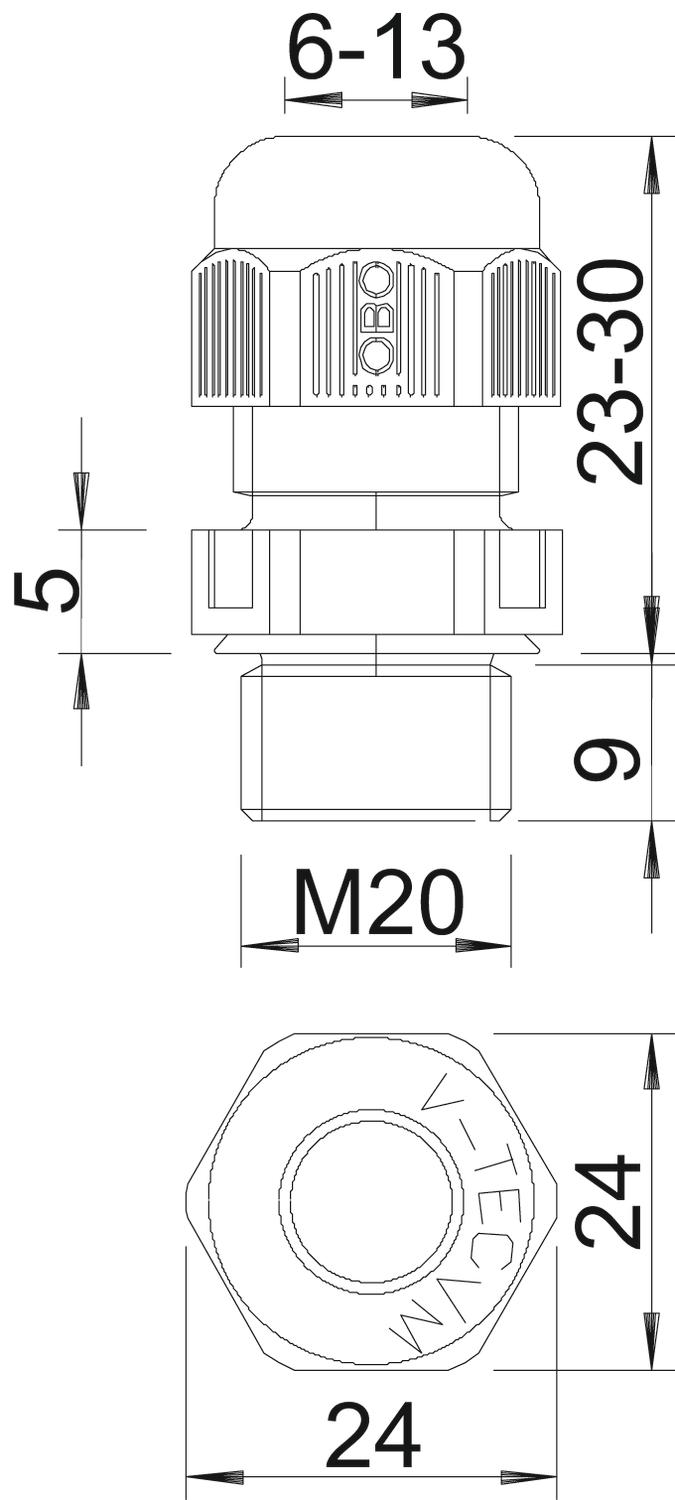

Dimension M20
Dimension L max. 30,5 mm
Dimension L min. 23,5 mm
Dimension L1 9 mm
Dimension L2 5 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size 20
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 13 mm
Sealing area D, min. 6 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M20 x 1,5
Thread increase 1,5 mm
Thread length 9 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 3,8 Nm
Version for Straight
WAF 24
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM20 RW M20 x 1,5 no Pure white; RAL 9010 2022804
50 piece
