Cable gland, metric thread, set with locknut, light grey

Item no. 2022762 | EAN 4012195860921

no
Light grey; RAL 7035
Product description

Product description

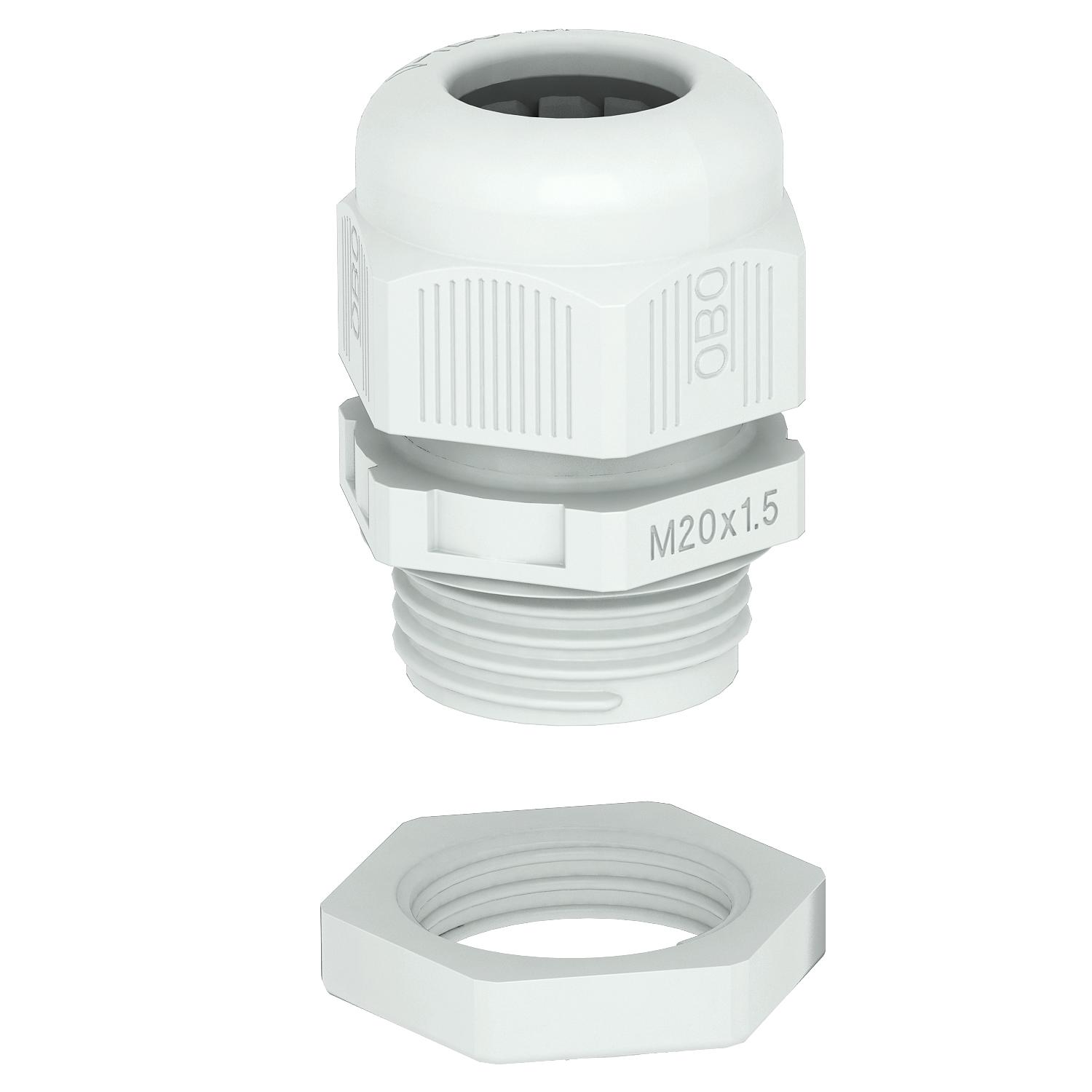

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Det Norske Veritas
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

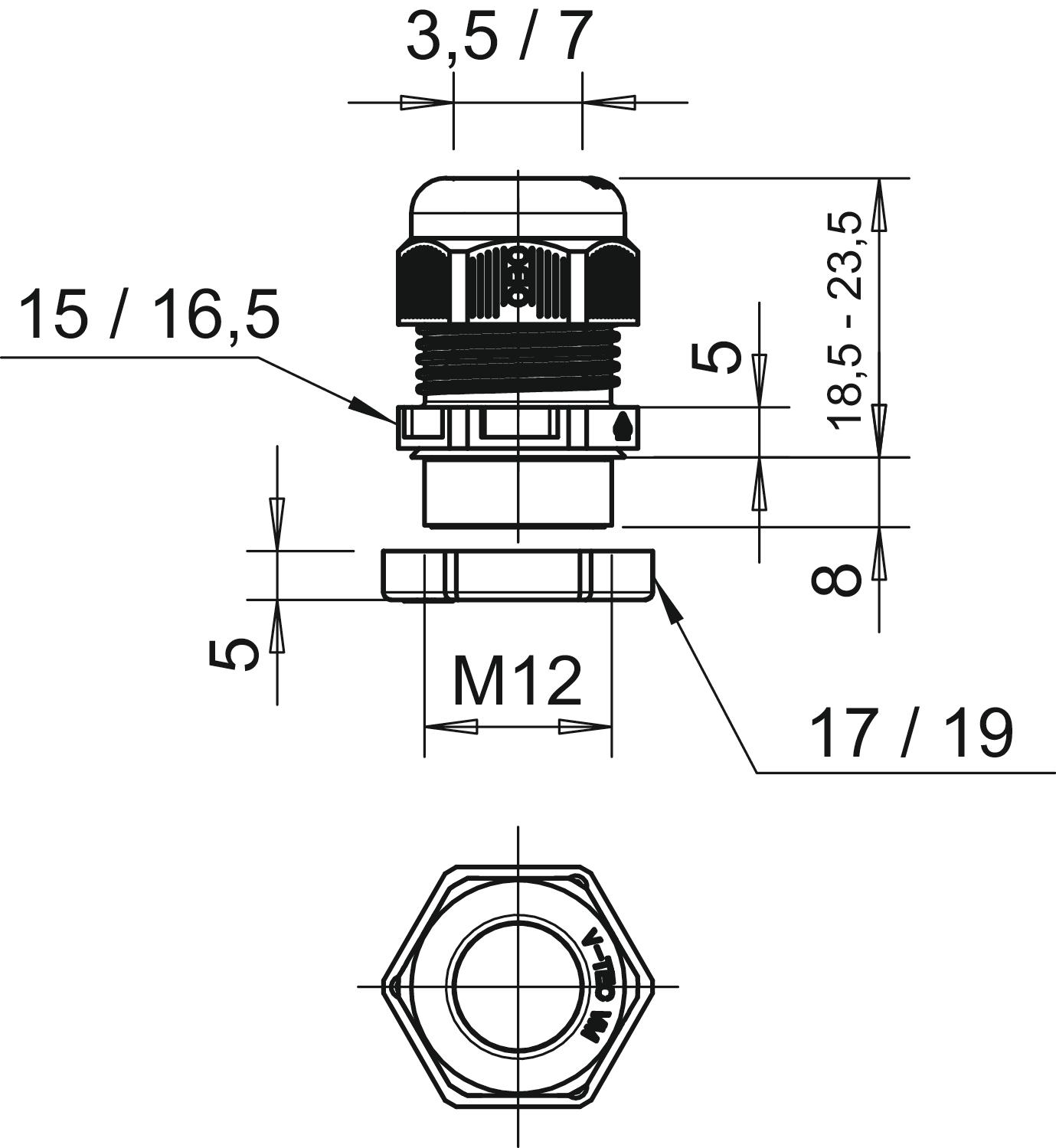

Dimension M12
Dimension E1 (mm) 16,5 mm
Dimension E2 19 mm
Dimension L max. 23,5 mm
Dimension L min. 18,5 mm
Dimension L1 8 mm
Dimension L2 5 mm
Dimension L3 5 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size 12
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 7 mm
Sealing area D, min. 3,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M12 x 1,5
Thread increase 1,5 mm
Thread length 8 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 2 Nm
Version for Straight
WAF 1 15 mm
WAF 2 17 mm
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM12+ LGR M12 x 1,5 no Light grey; RAL 7035 2022762
50 piece
V-TEC VM16+ LGR M16 x 1,5 no Light grey; RAL 7035 2022764
50 piece
V-TEC VM20+ LGR M20 x 1,5 no Light grey; RAL 7035 2022766
50 piece
V-TEC VM25+ LGR M25 x 1,5 no Light grey; RAL 7035 2022768
25 piece
V-TEC VM32+ LGR M32 x 1,5 no Light grey; RAL 7035 2022770
20 piece
V-TEC VM40+ LGR M40 x 1,5 no Light grey; RAL 7035 2022772
10 piece
V-TEC VM50+ LGR M50 x 1,5 no Light grey; RAL 7035 2022774
5 piece
V-TEC VM63+ LGR M63 x 1,5 no Light grey; RAL 7035 2022776
5 piece
