Cable gland, metric thread, set with locknut, light grey
Item no. 2022770 | EAN 4012195860969
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
-
- Technical data
-
Technical data

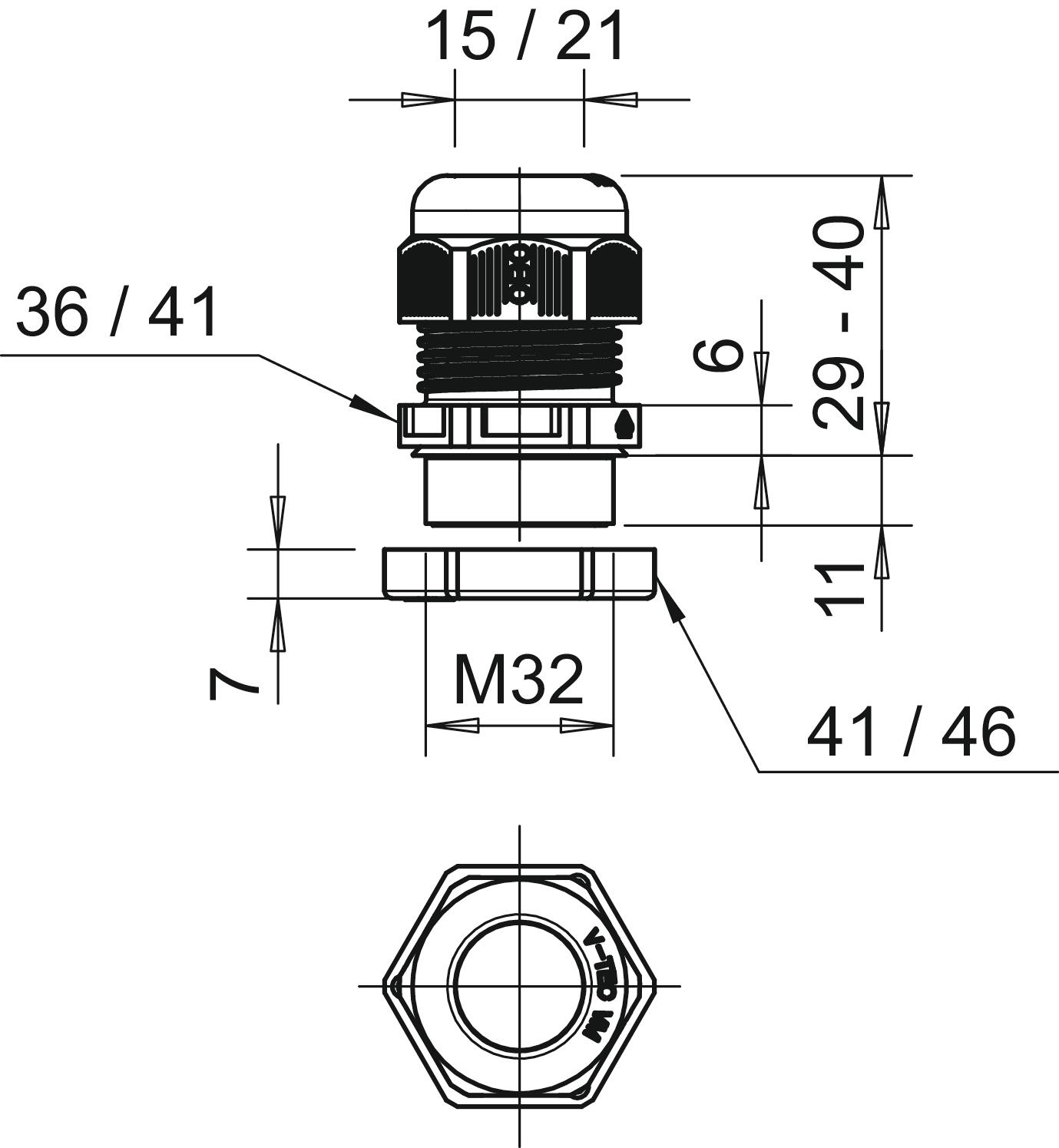

Bend protection no Colour Light grey; RAL 7035 Dimension M32 Dimension E1 (mm) 41 mm Dimension E2 46 mm Dimension L max. 40 mm Dimension L min. 29 mm Dimension L1 11 mm Dimension L2 6 mm Dimension L3 7 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polyamide Nominal thread size 32 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 21 mm Sealing area D, min. 15 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M32 x 1,5 Thread increase 1,5 mm Thread length 11 mm Thread type Metric Type of seal Sealing ring Unstable torque 7,5 Nm Version for Straight WAF 1 36 mm WAF 2 41 mm With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM32+ LGR / 2022770 , 0.24MB , pdfEU declaration of conformity V-TEC VM32+ LGR / 2022770 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM32+ LGR / 2022770 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM32+ LGR / 2022770 , 0.12MB , pdfLabel approval UL certificate V-TEC VM , 0.04MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
