- Product description
-
Product description

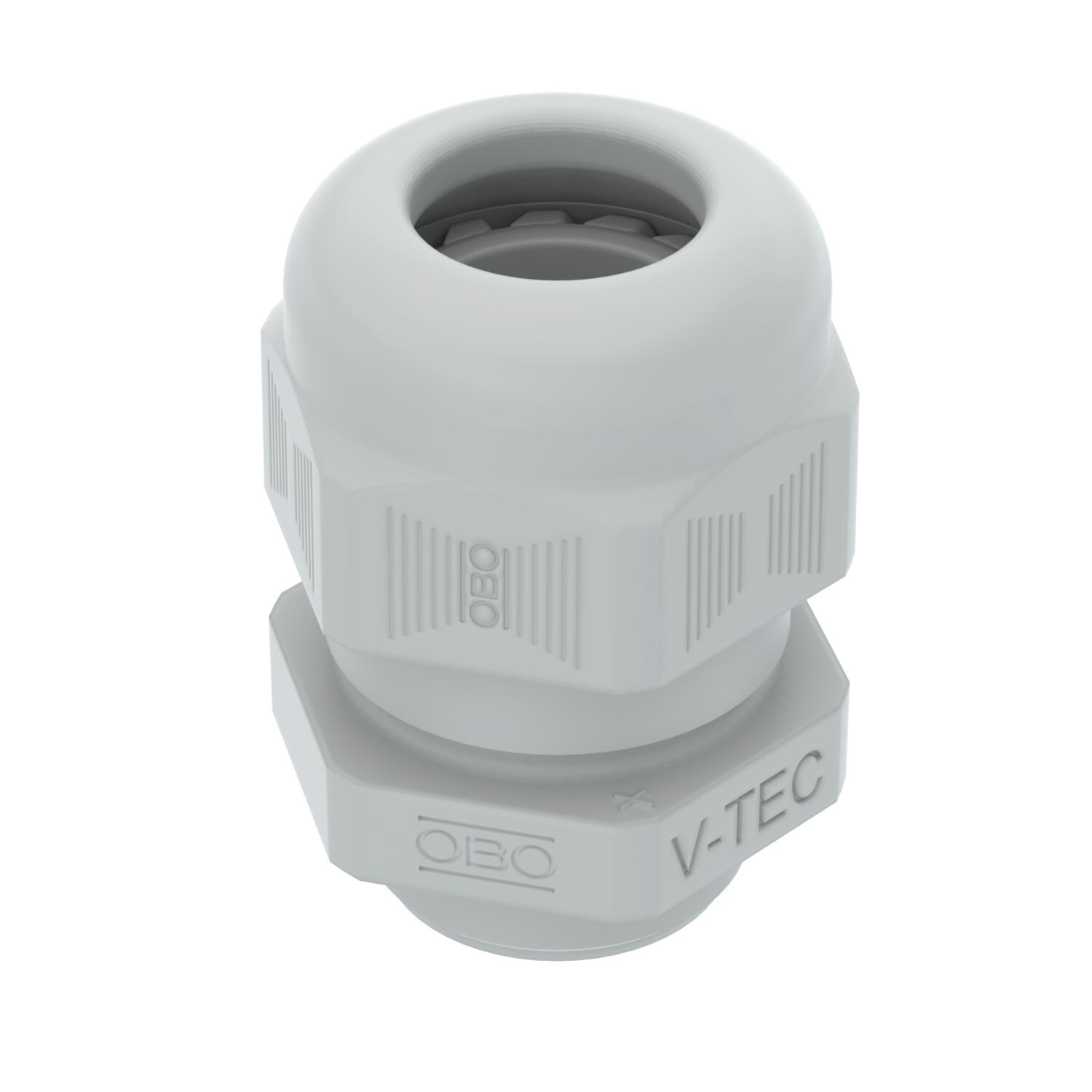

Cable gland with short metric connection thread in cap nut design, suitable for junction boxes with metric connection thread. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, thus no connection thread sealing ring required, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar 1 h. Temperature range –20 °C to +65 °C.
Table column D: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: sealing range including strain relief and twist protection to VDE 0619
- Technical data
-
Technical data

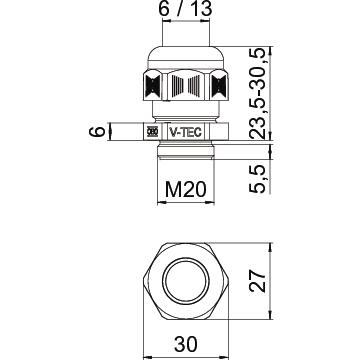

Bend protection no Colour Light grey; RAL 7035 Dimension M20 Dimension L max. 33 mm Dimension L min. 25 mm Dimension L1 7 mm Dimension L2 6 mm Dimension L3 19 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 27 mm Impact-resistant no Material Polyamide Nominal thread size 20 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 14 mm Sealing area D, min. 7 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M20 x 1,5 Thread increase 1,5 mm Thread length 7 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 27 With locknut no - All types
- Downloads
-
Data sheet V-TEC M KA M20NL / 2024880 , 0.16MB , pdfMounting instructions Mounting instructions, V-TEC M KA M20 , 2.00MB , pdf
English
