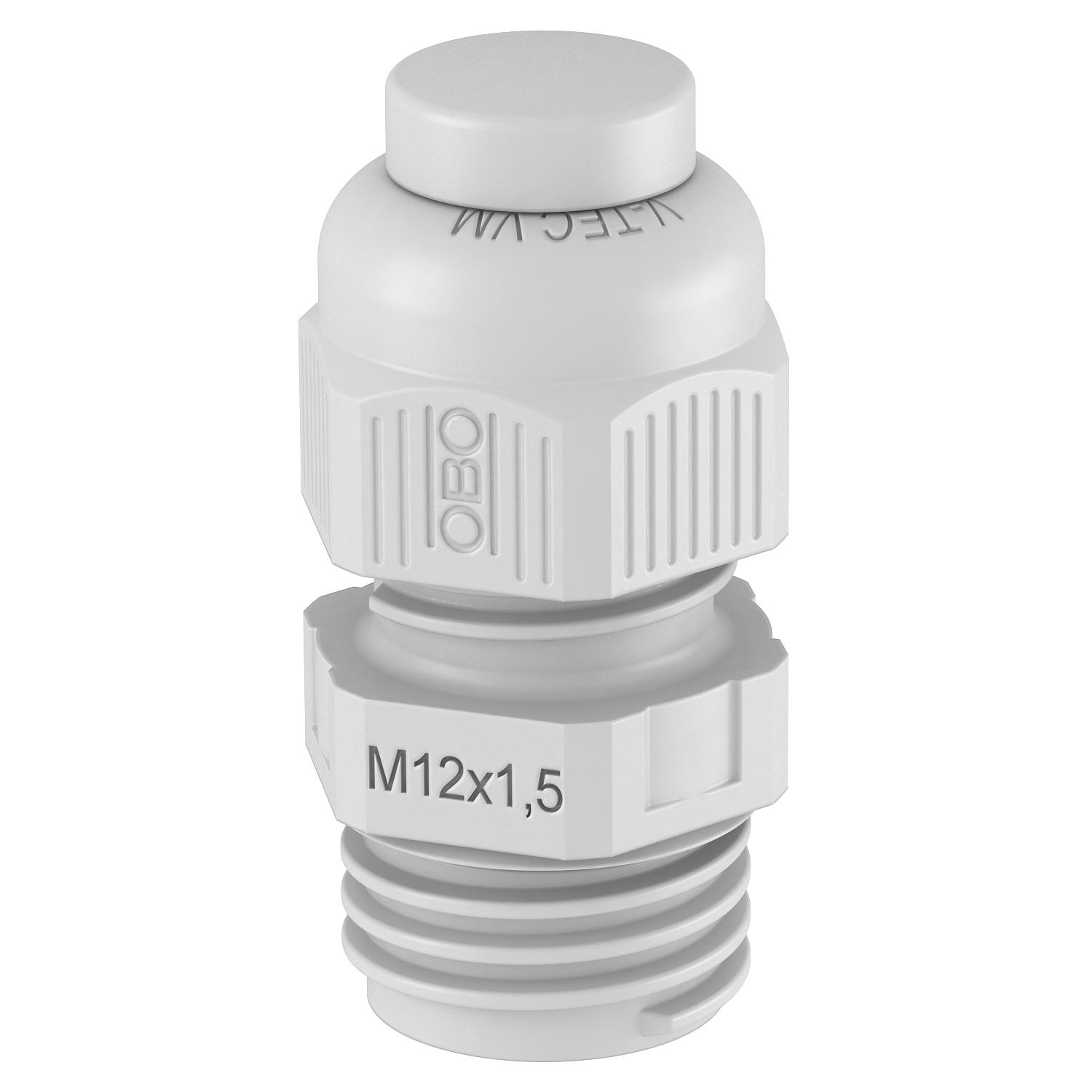

Cable gland, metric thread, with screw plug, light grey

Item no. 2023040 | EAN 4012196474417

no
Light grey; RAL 7035
Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

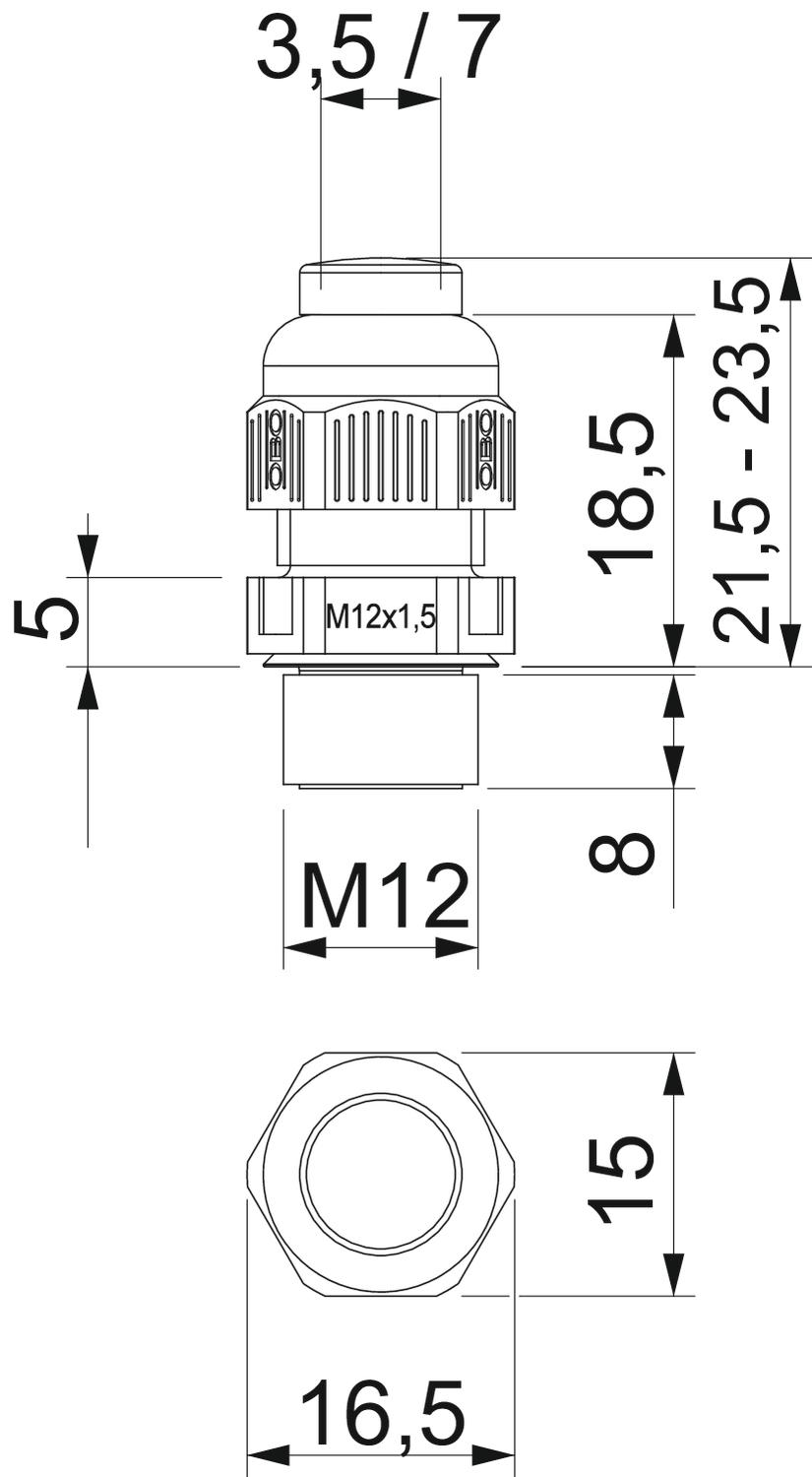

Dimension M12
Dimension E 16,5 mm
Dimension L max. 23,5 mm
Dimension L min. 21,5 mm
Dimension L1 8 mm
Dimension L2 5 mm
Dimension L3 18,5 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 16,5 mm
Hexagonal corner dimension 16,5 mm
Impact-resistant no
Length 21,5 mm
Material Polyamide
Nominal thread size 12
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 7 mm
Sealing area D, min. 3,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M12 x 1,5
Thread increase 1,5 mm
Thread length 8 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 2 Nm
Version for Straight
WAF 15
WAF 1 15 mm
Width 15 mm
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM12VS LGR M12 x 1,5 no Light grey; RAL 7035 2023040
50 piece
V-TEC VM16VS LGR M16 x 1,5 no Light grey; RAL 7035 2023042
50 piece
V-TEC VM20VS LGR M20 x 1,5 no Light grey; RAL 7035 2023044
50 piece
V-TEC VM25VS LGR M25 x 1,5 no Light grey; RAL 7035 2023046
25 piece
V-TEC VM32VS LGR M32 x 1,5 no Light grey; RAL 7035 2023048
20 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, metric thread, light grey Locknut, metric thread, light grey 116 M12 LGR PA 2048906
100 piece
