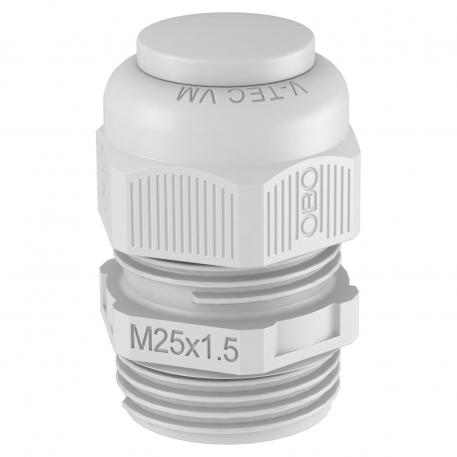

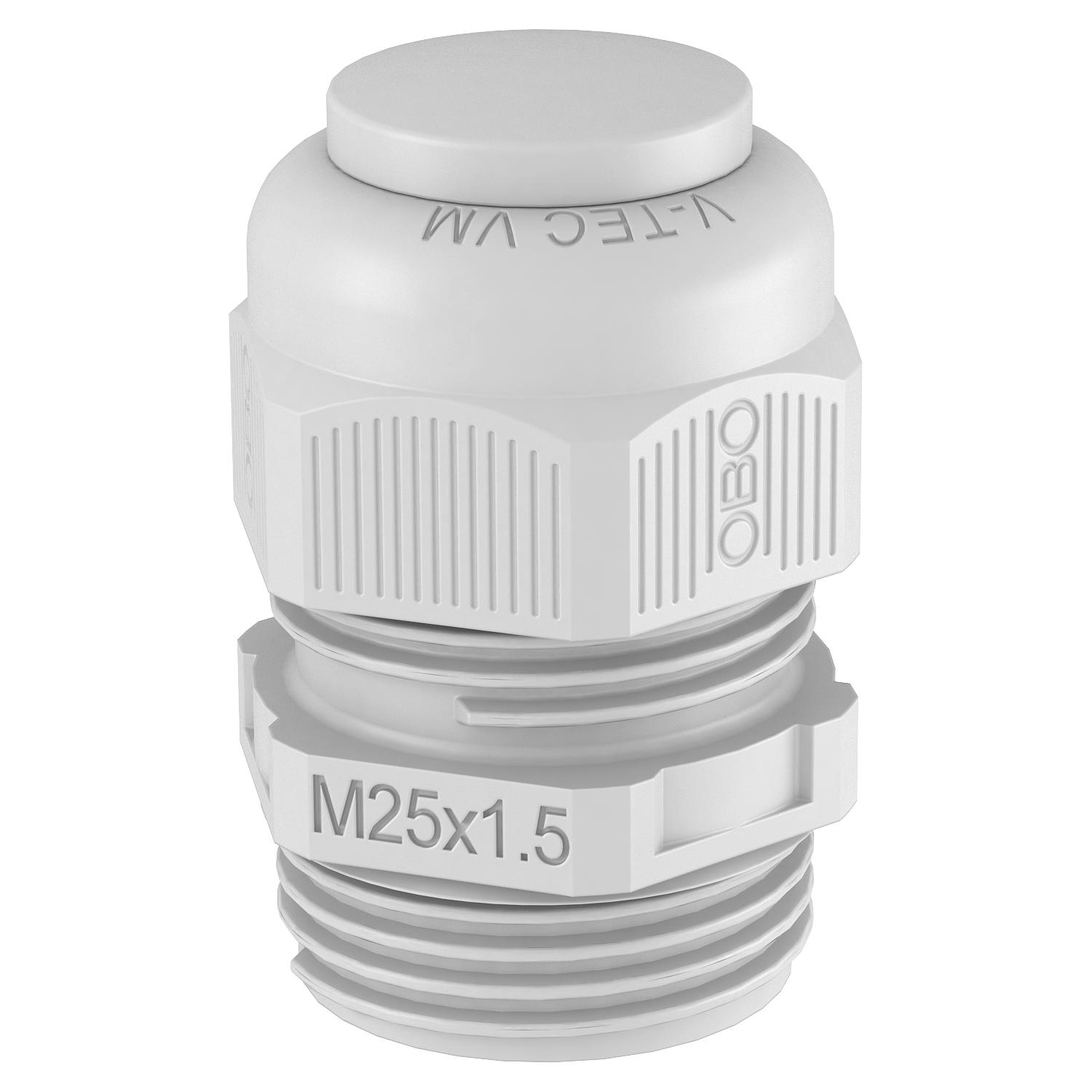

Cable gland, metric thread, with screw plug, light grey
Item no. 2023046 | EAN 4012196474462
- Product description
-
Product description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

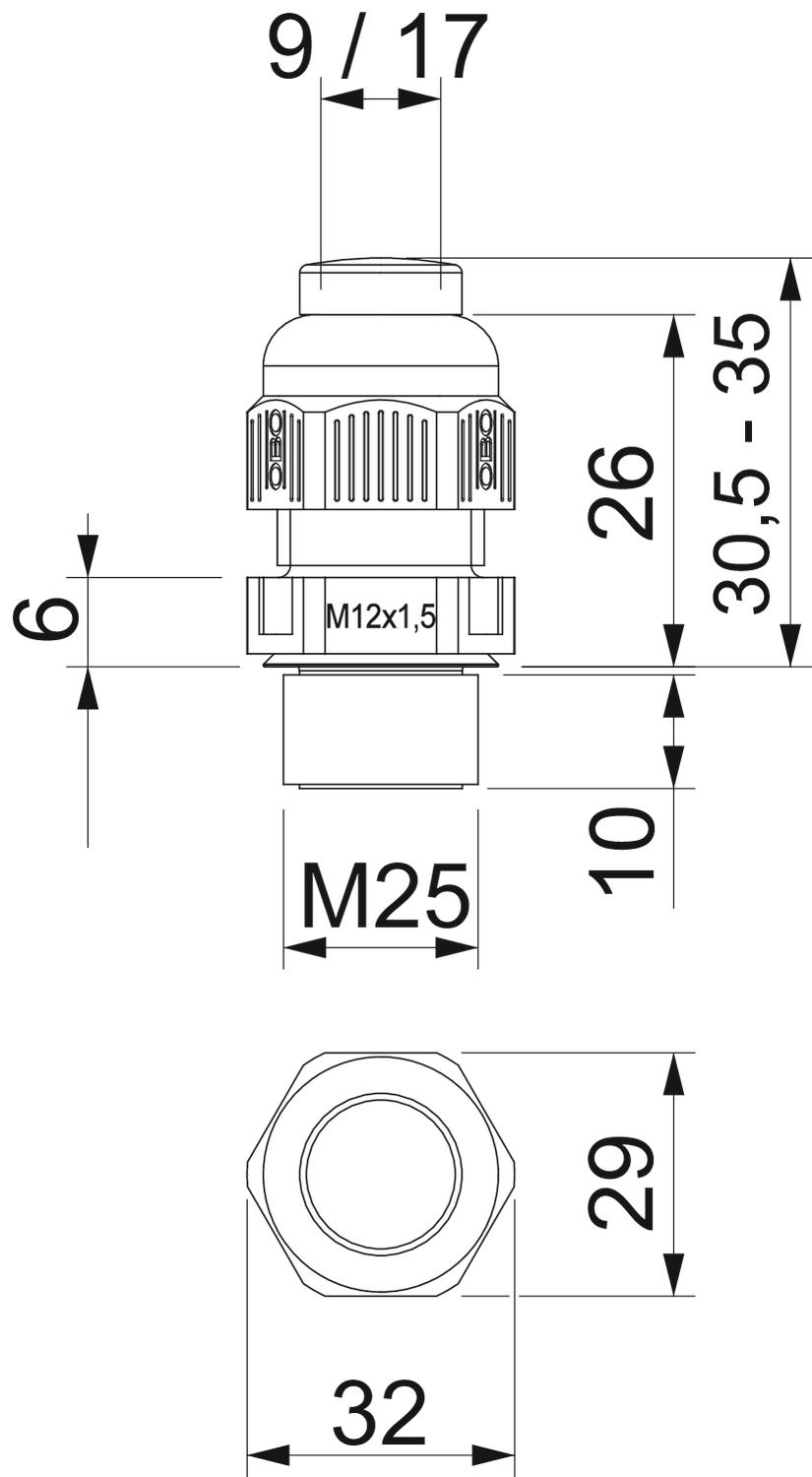

Bend protection no Colour Light grey; RAL 7035 Dimension M25 Dimension E 32 mm Dimension L max. 35 mm Dimension L min. 30,5 mm Dimension L1 10 mm Dimension L2 6 mm Dimension L3 26 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 32 mm Hexagonal corner dimension 32 mm Impact-resistant no Length 30,5 mm Material Polyamide Nominal thread size 25 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 17 mm Sealing area D, min. 9 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M25 x 1,5 Thread increase 1,5 mm Thread length 10 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 29 WAF 1 29 mm Width 29 mm With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, metric thread, light grey
116 M25 LGR PA 2048930 100 piece - Downloads
-
Data sheet V-TEC VM25VS LGR / 2023046 , 0.27MB , pdfDeclaration of conformity V-TEC VM25VS LGR / 2023046 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM25VS LGR / 2023046 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM25VS LGR / 2023046 , 0.12MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdfLabel approval UL certificate V-TEC VM , 0.04MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
