- Product description
-
Product description

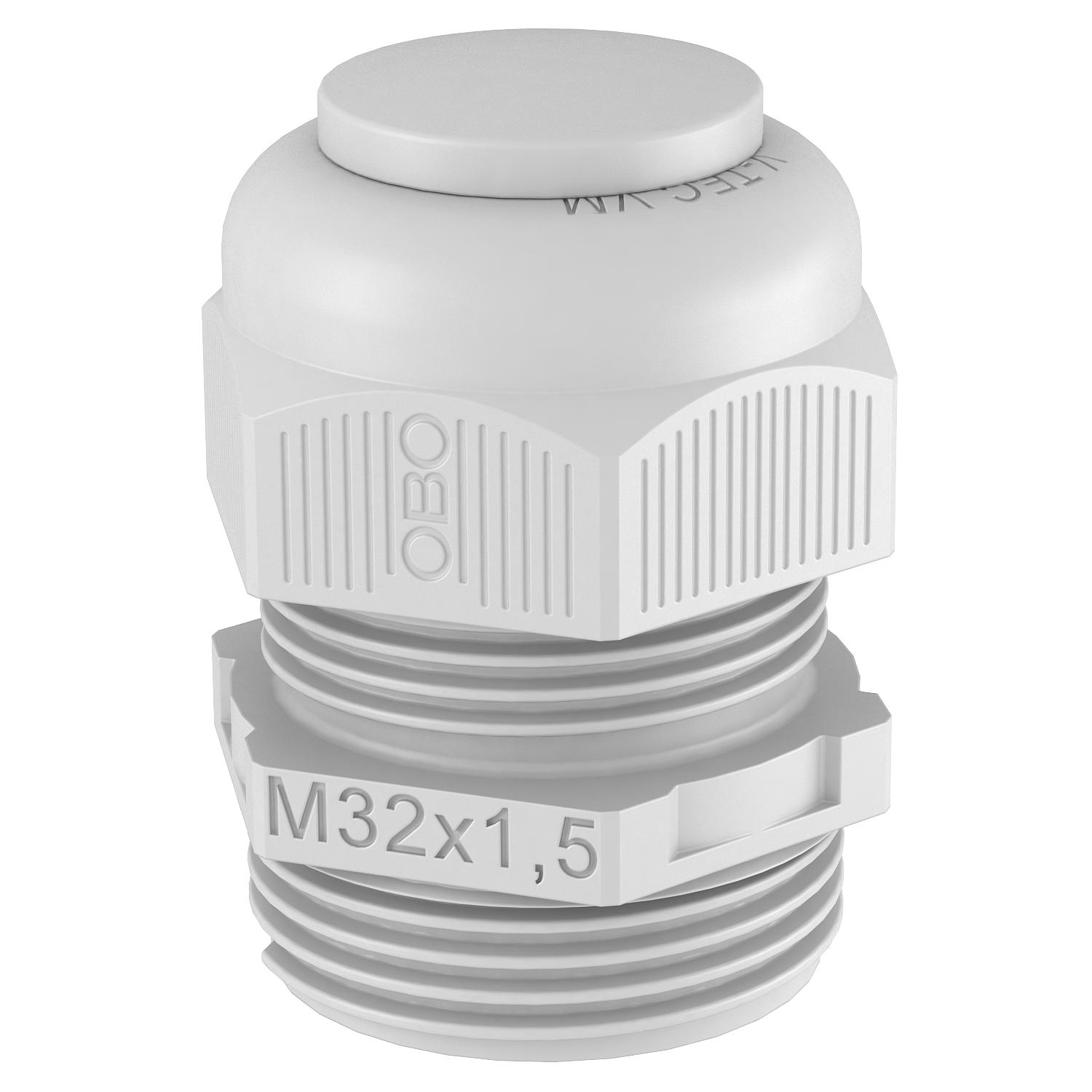

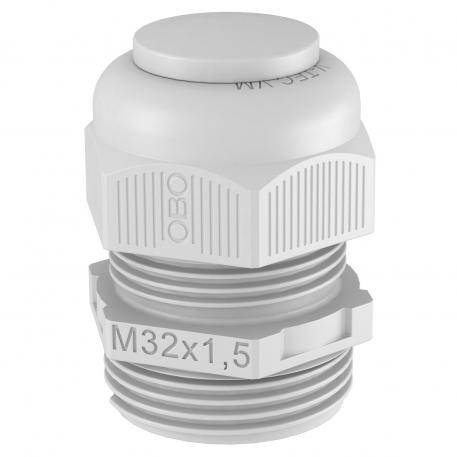

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension M32 Dimension E 41 mm Dimension L max. 40 mm Dimension L min. 29 mm Dimension L1 11 mm Dimension L2 6 mm Dimension L3 29 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 41 mm Hexagonal corner dimension 41 mm Impact-resistant no Length 29 mm Material Polyamide Nominal thread size 32 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 21 mm Sealing area D, min. 15 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M32 x 1,5 Thread increase 1,5 mm Thread length 11 mm Thread type Metric Type of seal Sealing ring Unstable torque 7,5 Nm Version for Straight WAF 36 WAF 1 36 mm Width 36 mm With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM32VS LGR / 2023048 , 0.27MB , pdfDeclaration of conformity V-TEC VM32VS LGR / 2023048 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM32VS LGR / 2023048 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM32VS LGR / 2023048 , 0.12MB , pdfLabel approval VDE symbol approval, V-TEC VM , 0.17MB , pdfLabel approval UL certificate V-TEC VM , 0.04MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
