- Product description
-
Product descriptionCable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Table column D: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: Sealing range including strain relief and twist protection to VDE 0619
- Technical data
-
Technical data

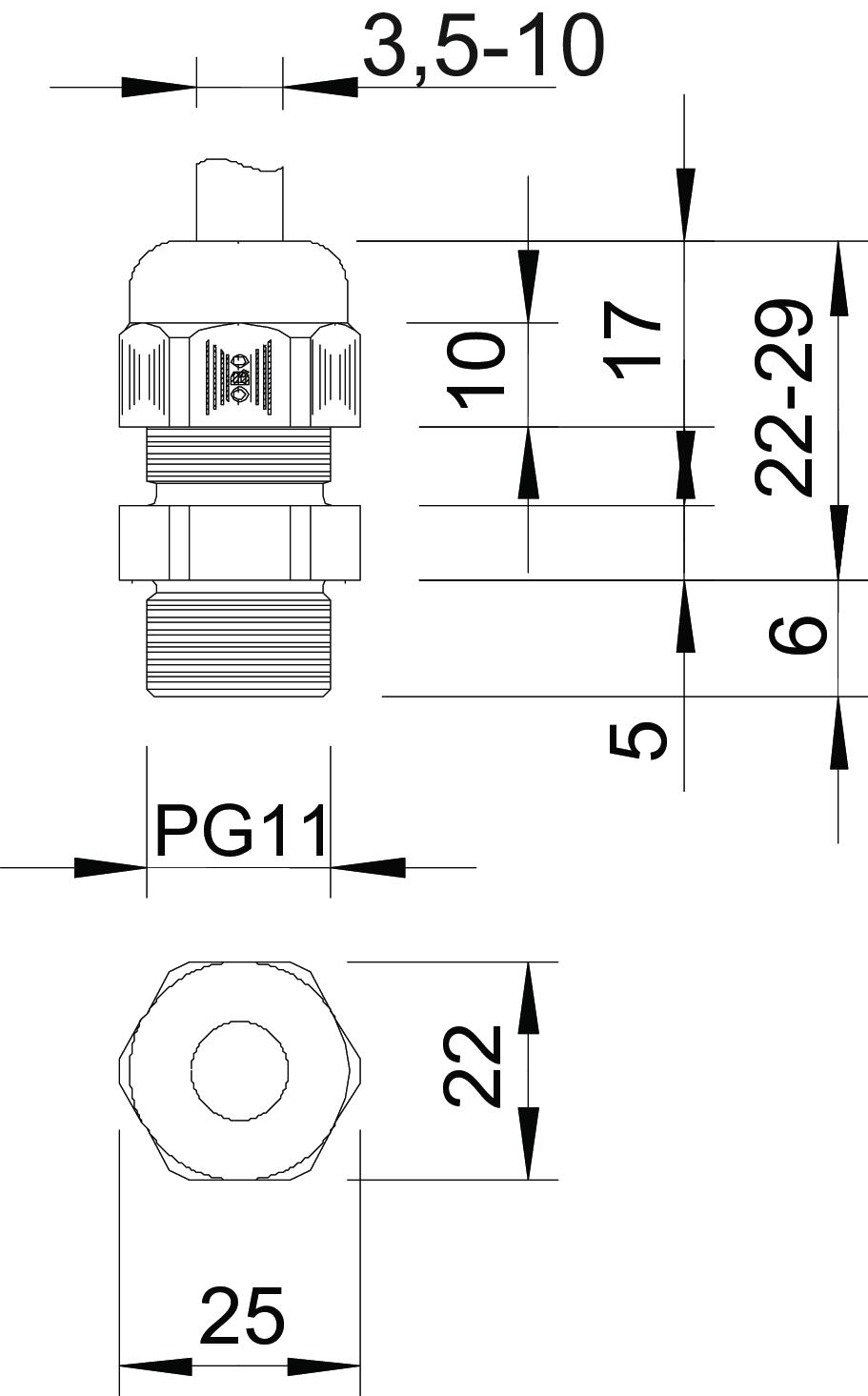

Bend protection no Colour Pure white; RAL 9010 Dimension PG11 Dimension E 25 mm Dimension L max. 29 mm Dimension L min. 22 mm Dimension L1 8 mm Dimension L2 5 mm Dimension L3 17 mm Dimension L4 10 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polyamide Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 10 mm Sealing area D, min. 3,5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 11 Thread increase 1,41 mm Thread length 8 mm Thread type PG Type of seal Sealing ring Unstable torque 2,5 Nm Version for Straight WAF 22 With locknut no - All types
- Downloads
-
Data sheet V-TEC PG11 RW / 2022575 , 0.27MB , pdfEU declaration of conformity V-TEC PG11 RW / 2022575 , 0.06MB , pdfUK Declaration of Conformity V-TEC PG11 RW / 2022575 , 0.09MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdf
