Product description

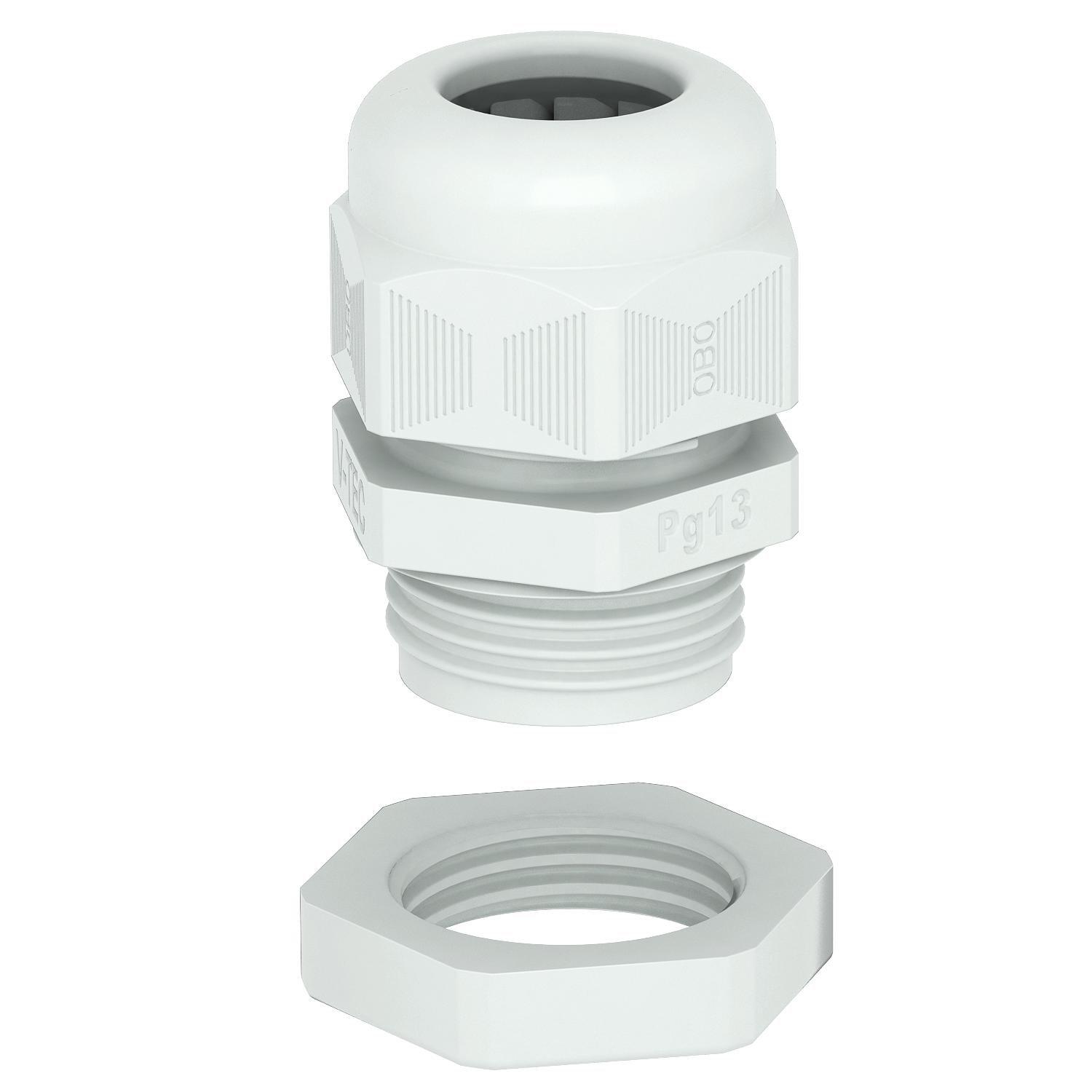

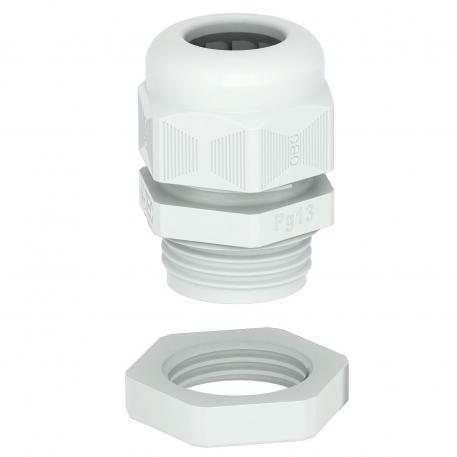

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
Table column D1: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: Sealing range including strain relief and twist protection to VDE 0619
- Technical data
-
Technical data

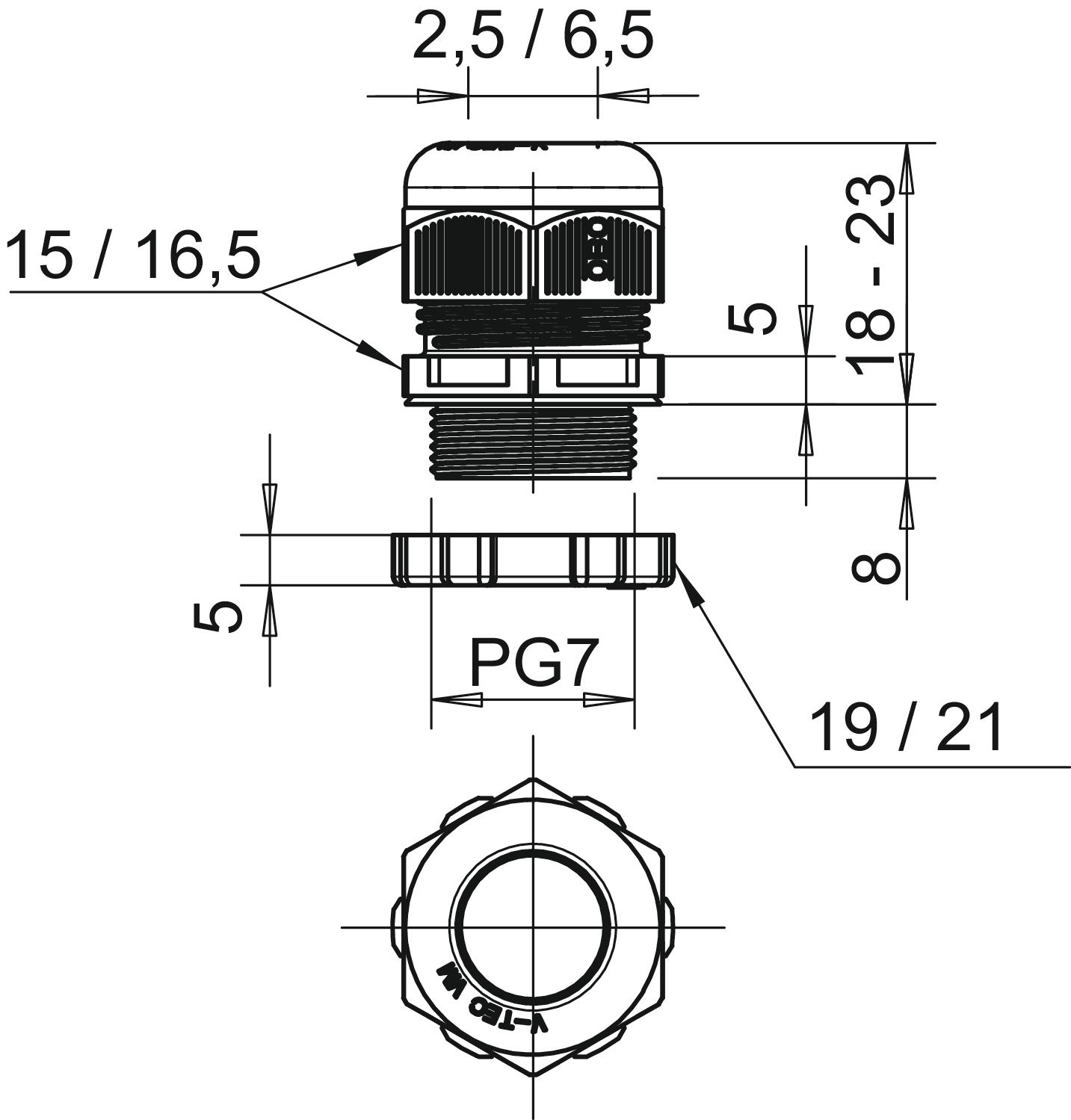

Bend protection no Colour Light grey; RAL 7035 Dimension PG7 Dimension E1 (mm) 16,5 mm Dimension E2 21 mm Dimension L max. 23 mm Dimension L min. 18 mm Dimension L1 8 mm Dimension L2 5 mm Dimension L3 5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 16,5 mm Impact-resistant no Material Polyamide Nominal thread size 7 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 6,5 mm Sealing area D, min. 2,5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 7 Thread increase 1,5 mm Thread length 8 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 15 mm WAF 2 19 mm With locknut yes - All types
-
All types
- Downloads
-
Data sheet V-TEC PG7+ LGR / 2024655 , 0.23MB , pdfDeclaration of conformity V-TEC PG7+ LGR / 2024655 , 0.06MB , pdfREACH Declaration of conformity V-TEC PG7+ LGR / 2024655 , 0.12MB , pdfRoHS Declaration of conformity V-TEC PG7+ LGR / 2024655 , 0.12MB , pdf
