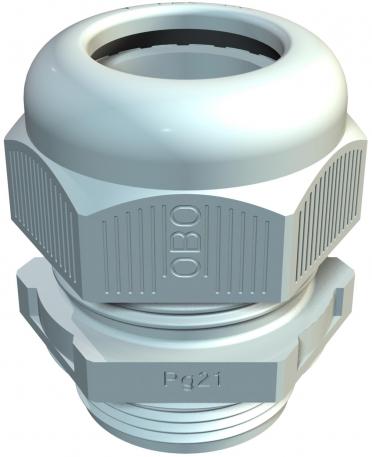

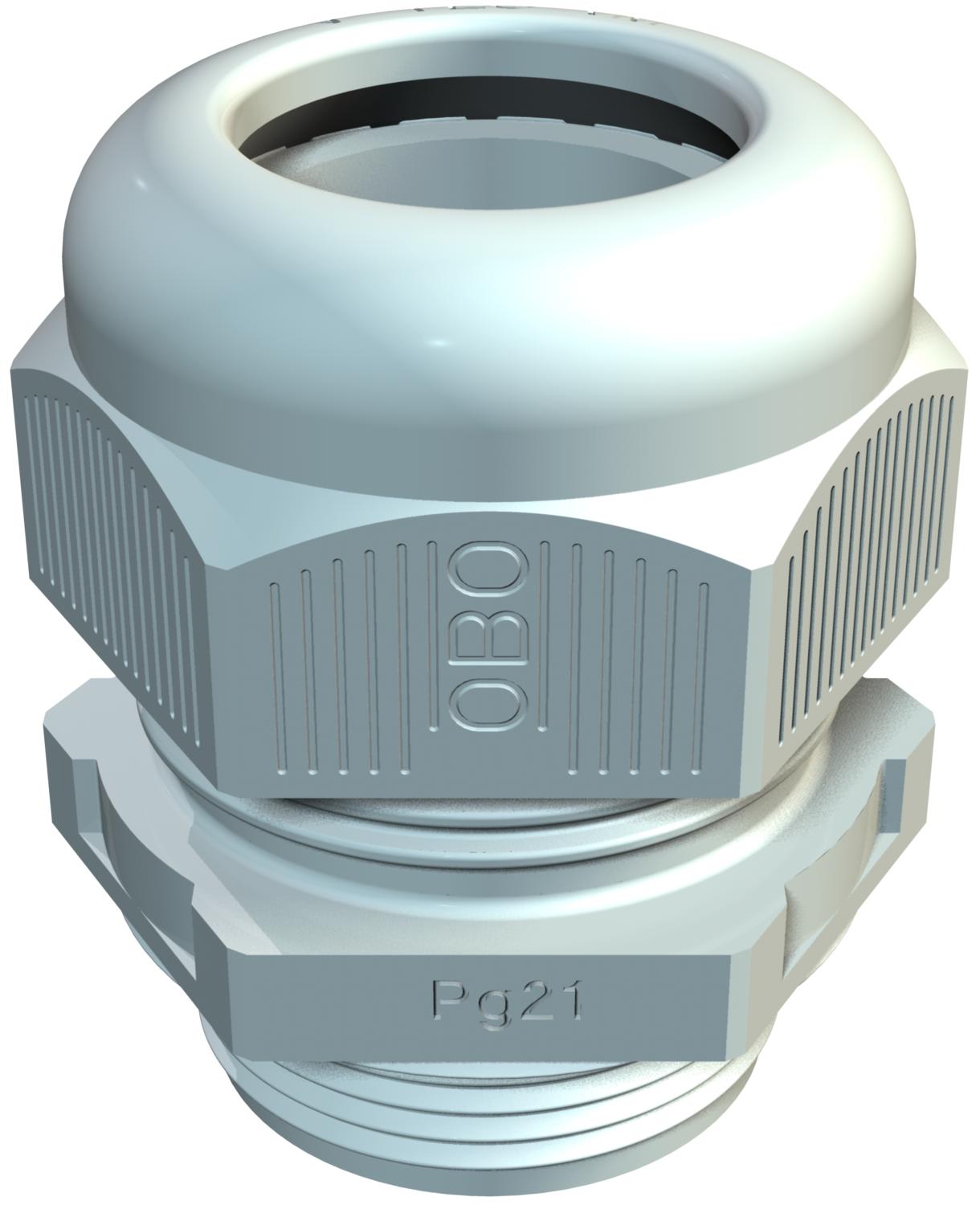

Cable gland, PG thread, silver grey
Item no. 2022699 | EAN 4012195161172
- Product description
-
Product description
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

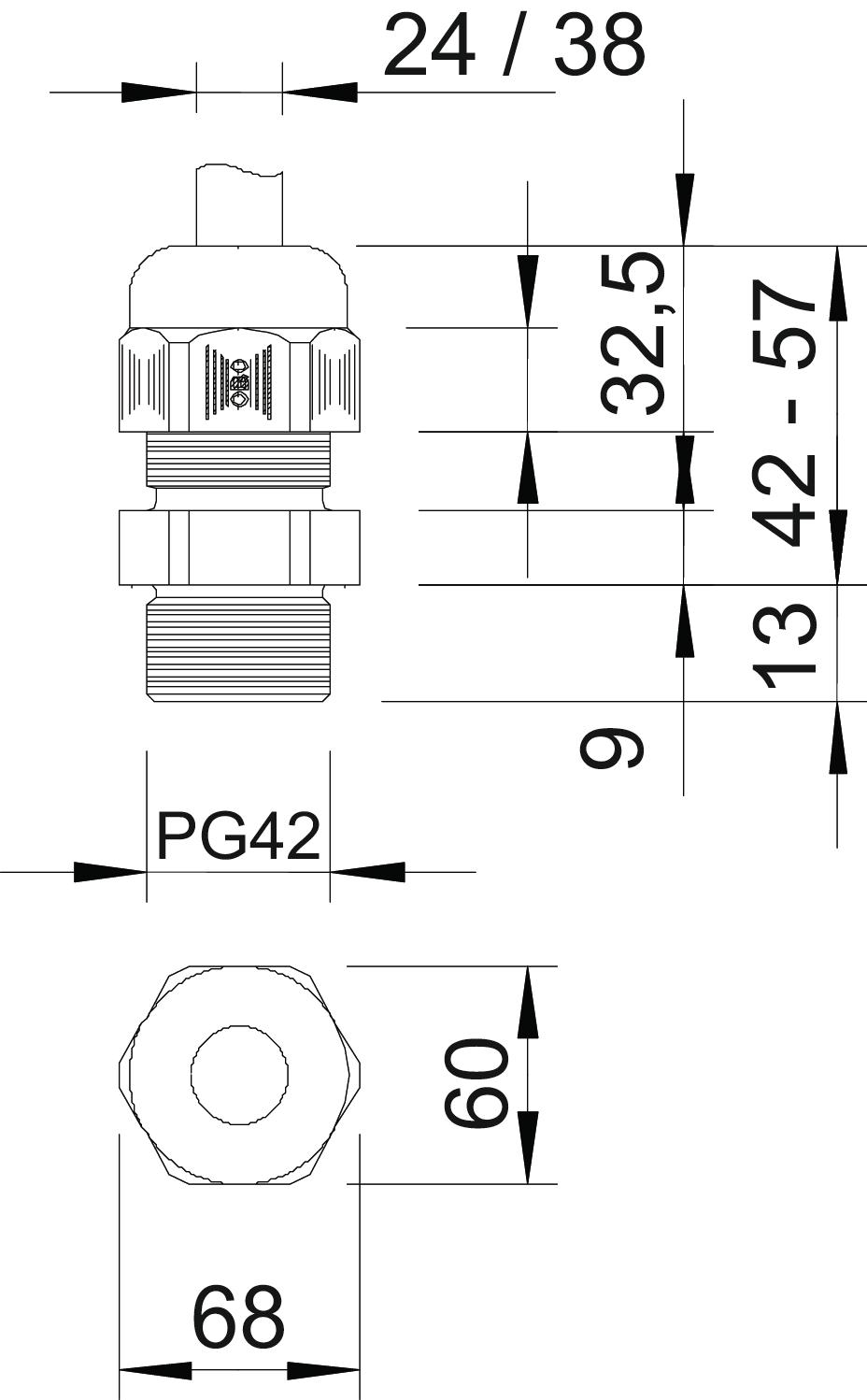

Bend protection no Colour Silver grey; RAL 7001 Dimension PG42 Dimension E 68 mm Dimension L max. 57 mm Dimension L min. 42 mm Dimension L1 13 mm Dimension L2 9 mm Dimension L3 32,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 68,5 mm Impact-resistant no Material Polyamide Nominal thread size 42 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 38 mm Sealing area D, min. 24 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 42 Thread increase 1,41 mm Thread length 13 mm Thread type PG Type of seal Sealing ring Unstable torque 5 Nm Version for Straight WAF 60 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU

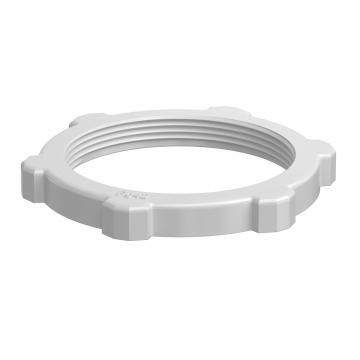

Locknut, PG thread
116 PG42 2043424 25 piece - Downloads
-
Data sheet V-TEC PG42 SGR / 2022699 , 0.29MB , pdfDeclaration of conformity V-TEC PG42 SGR / 2022699 , 0.06MB , pdfREACH Declaration of conformity V-TEC PG42 SGR / 2022699 , 0.12MB , pdfRoHS Declaration of conformity V-TEC PG42 SGR / 2022699 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdf
