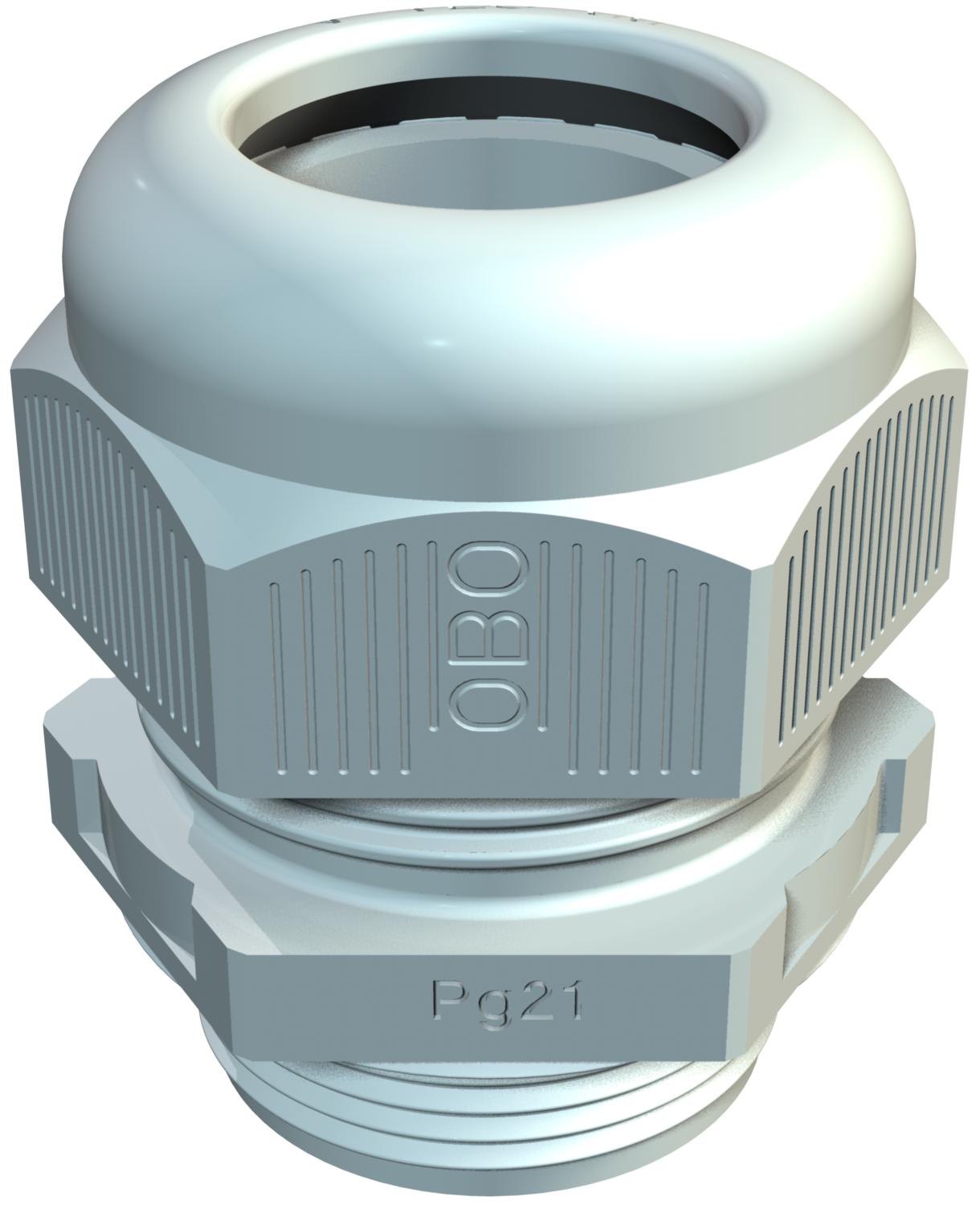

Cable gland, PG thread, silver grey

Item no. 2022605 | EAN 4012195160694

no
Silver grey; RAL 7001
Product description

Product description

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Silver grey; RAL 7001

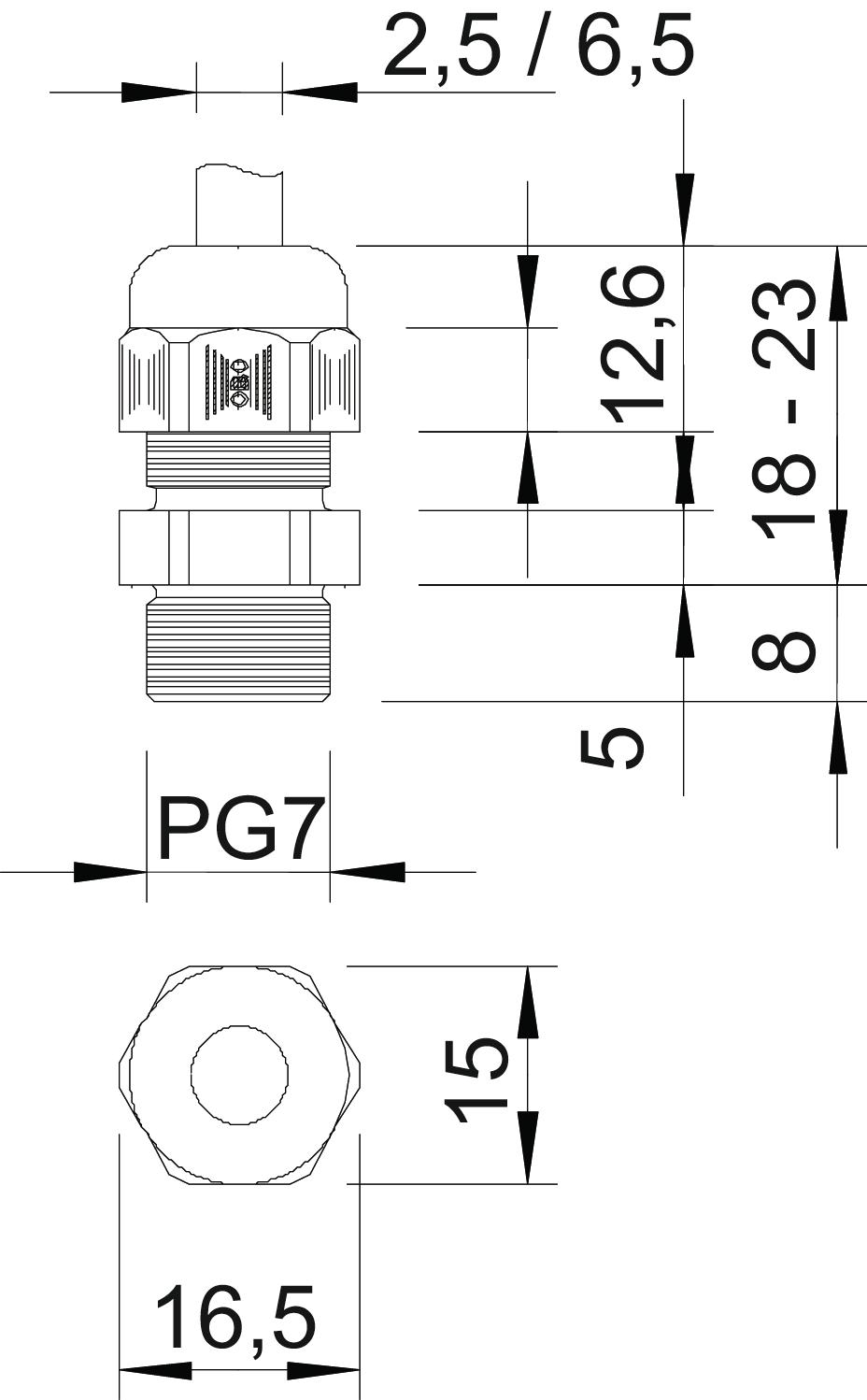

Dimension PG7
Dimension E 16,5 mm
Dimension L max. 23 mm
Dimension L min. 18 mm
Dimension L1 8 mm
Dimension L2 5 mm
Dimension L3 12,6 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 16,5 mm
Impact-resistant no
Material Polyamide
Nominal thread size 7
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 6,5 mm
Sealing area D, min. 2,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread Pg 7
Thread increase 1,41 mm
Thread length 8 mm
Thread type PG
Type of seal Sealing ring
Unstable torque 1,67 Nm
Version for Straight
WAF 15
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC PG7 SGR Pg 7 no Silver grey; RAL 7001 2022605
50 piece
V-TEC PG9 SGR Pg 9 no Silver grey; RAL 7001 2022613
50 piece
V-TEC PG11 SGR Pg 11 no Silver grey; RAL 7001 2022621
50 piece
V-TEC PG13.5 SGR Pg 13,5 no Silver grey; RAL 7001 2022648
50 piece
V-TEC PG16 SGR Pg 16 no Silver grey; RAL 7001 2022656
25 piece
V-TEC PG21 SGR Pg 21 no Silver grey; RAL 7001 2022664
25 piece
V-TEC PG29 SGR Pg 29 no Silver grey; RAL 7001 2022672
20 piece
V-TEC PG36 SGR Pg 36 no Silver grey; RAL 7001 2022680
10 piece
V-TEC PG42 SGR Pg 42 no Silver grey; RAL 7001 2022699
5 piece
V-TEC PG48 SGR Pg 48 no Silver grey; RAL 7001 2022702
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

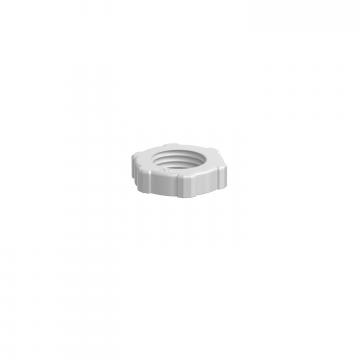

Locknut, PG thread Locknut, PG thread 116 PG 7 2043076
100 piece
