Cable gland with locknut as a set
Item no. 7205660 | EAN 4012196028238
- Product description
-
Product descriptionRobust cap nut cable gland with metric connecting thread to IEC 423, including pre-mounted locknut.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
- Technical data
-
Technical data

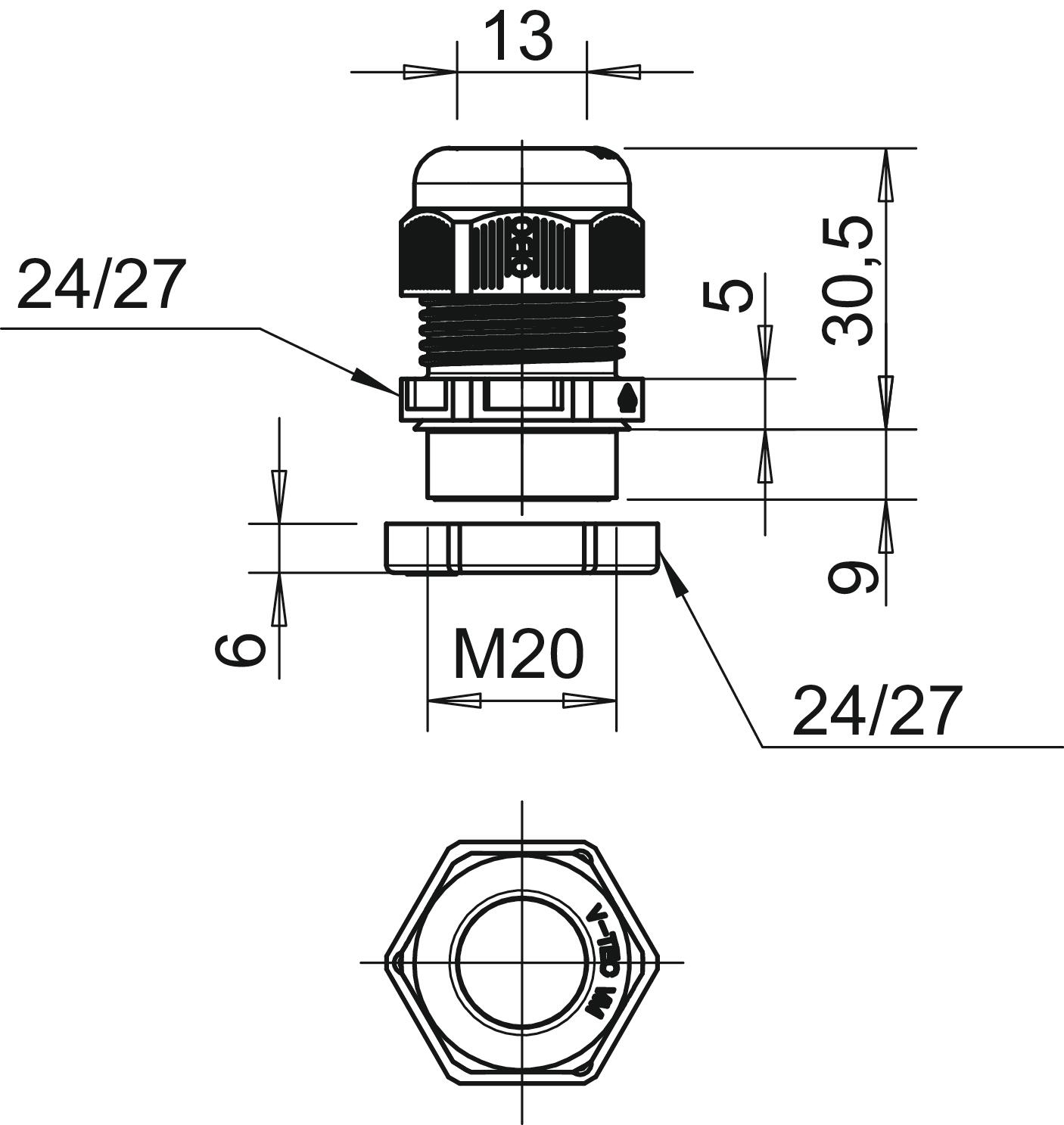

Bend protection no Colour Pastel orange; RAL 2003 Dimension M20 Dimension E 27 mm Dimension E1 (mm) 27 mm Dimension E2 27 mm Dimension G M20 x 1,5 mm Dimension L max. 30,5 mm Dimension L min. 23,5 mm Dimension L1 9 mm Dimension L2 5 mm Dimension L3 6 mm Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polyamide Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 13 mm Sealing area D, min. 6 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M20 x 1,5 Thread increase 1,5 mm Thread length 9 mm Thread type Metric Unstable torque 3,8 Nm WAF 24 WAF 1 24 mm WAF 2 24 mm With locknut yes - All types
-
All types
- Downloads
-
Data sheet V-TEC VM20+ OR / 7205660 , 0.18MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity V-TEC VM20+ OR / 7205660 , 0.13MB , pdfREACH Declaration of conformity V-TEC VM20+ OR / 7205660 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM20+ OR / 7205660 , 0.12MB , pdfNo invitation to tender text is available for this product.
