Cable ladder LCIS 60, 3 m C30 FT

Item no. 6209723 | EAN 4012196431748

3000 mm
1.5 mm
no
Product description
Product description

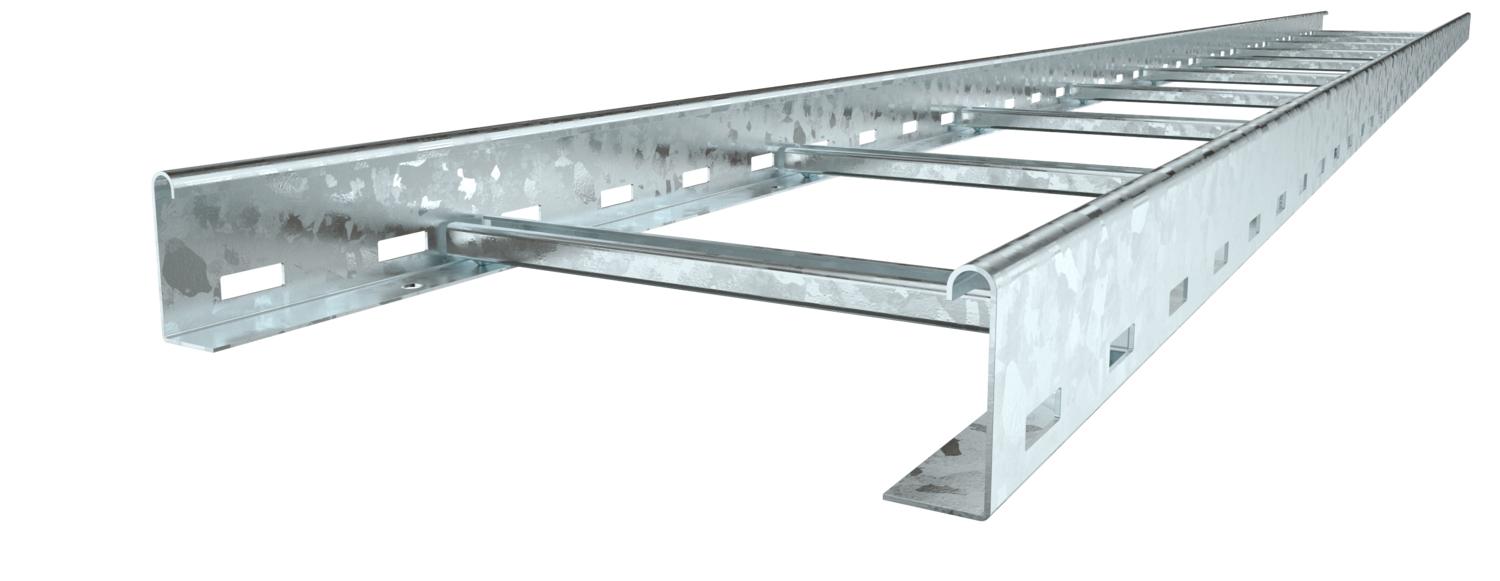

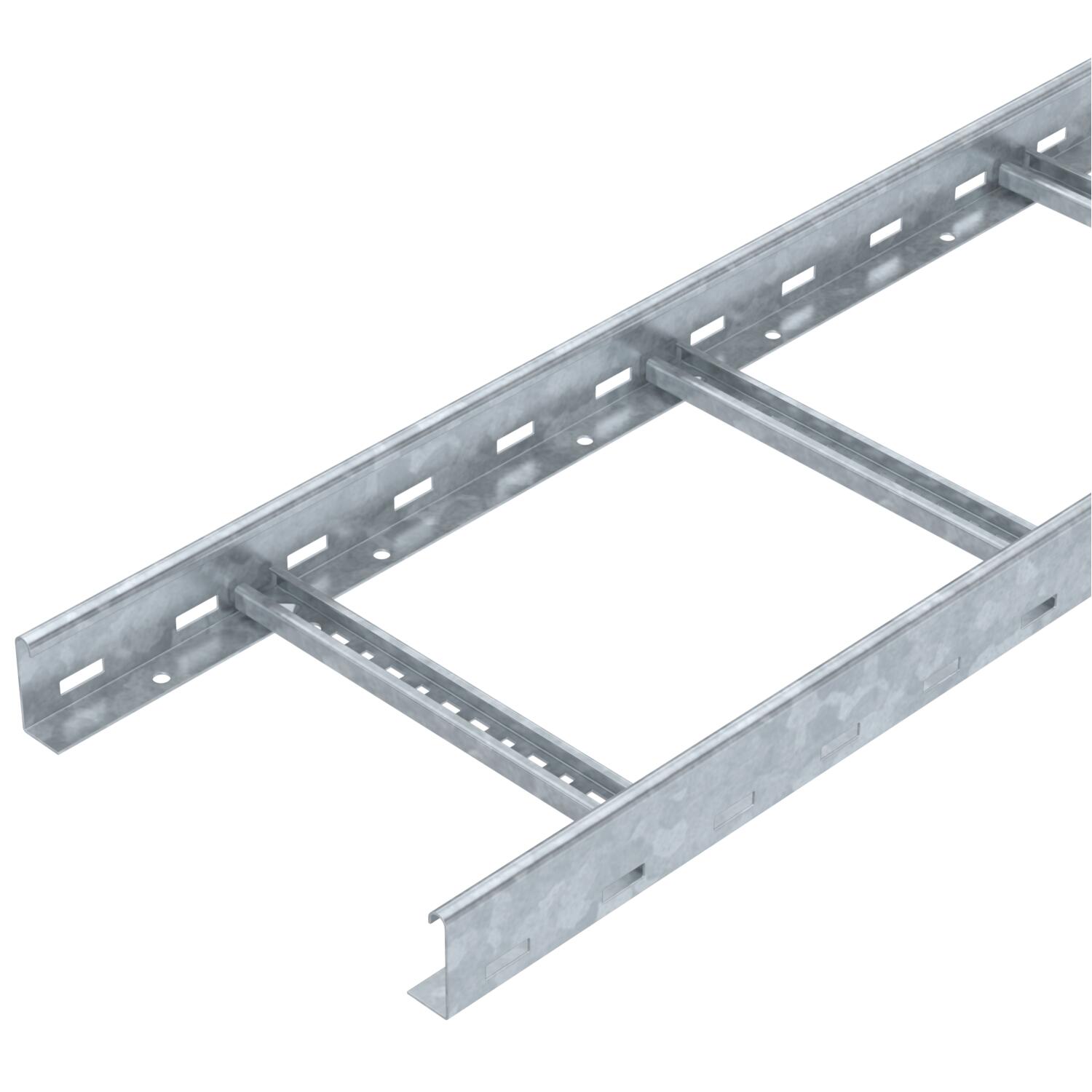

Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H....
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
Technical data

Technical data

Colour zinc
CO₂ Footprint (GWP) Cradle-to-Gate 6,9488 kg CO₂e / 1 Meter

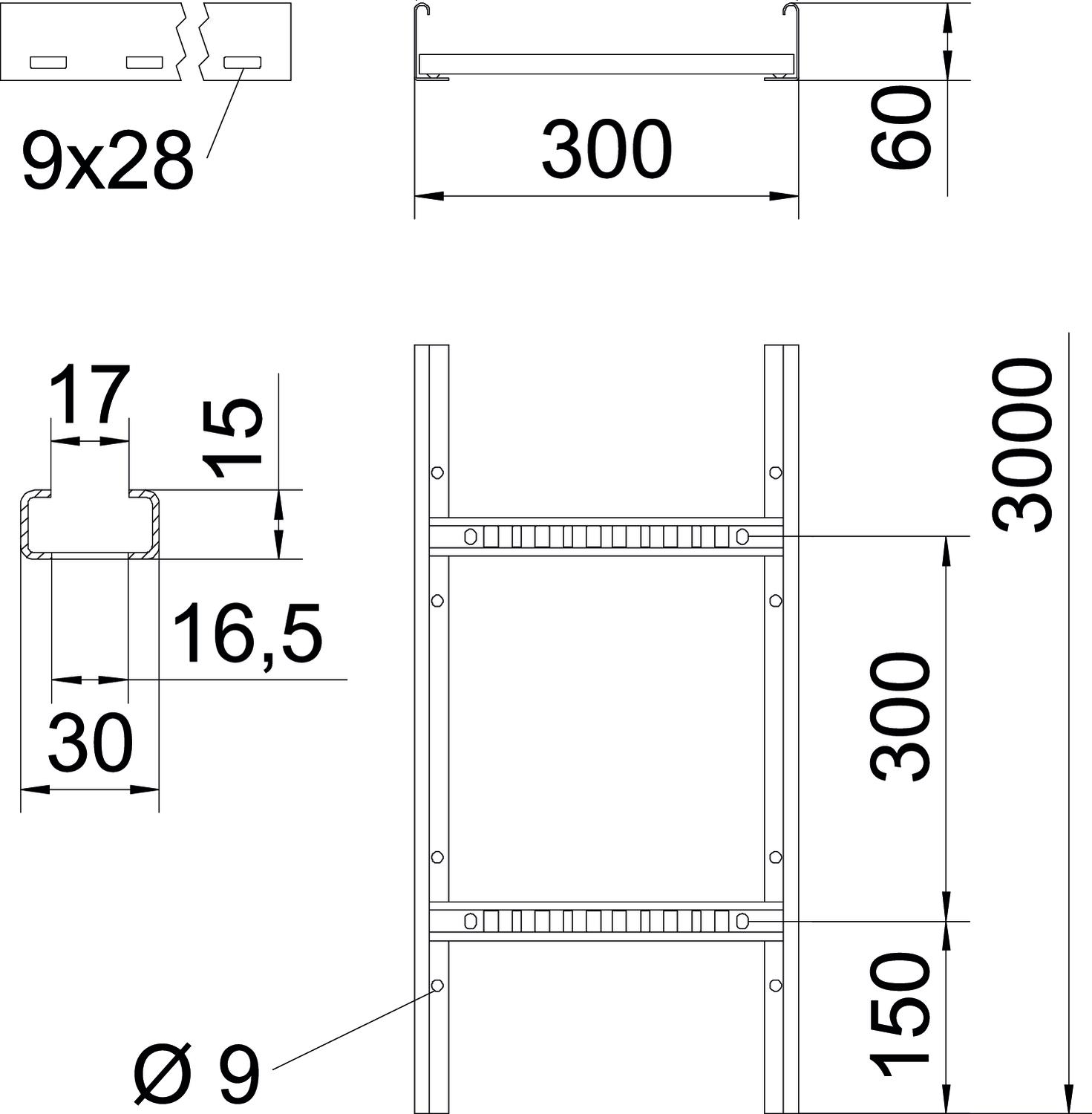

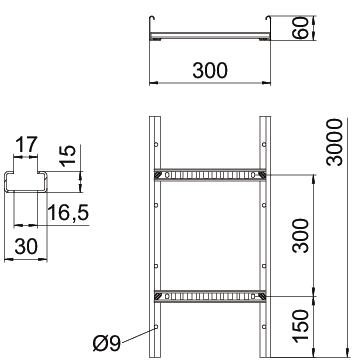

Dimension 60x300x3000
Dimension B 300 mm
Fastening of rung Welded
Height 60 mm
Length 3000 mm
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rung distance 300 mm
Rung slot dimension 17,00
Rustproof steel, pickled no
Side perforation yes
Side rail version Flat profile
Support spacing 1.5 m 3,3 kN/m
Support spacing 2.0 m 2 kN/m
Support spacing 2.5 m 1,3 kN/m
Support spacing 3.0 m 1 kN/m
Support spacing 3.5 m 0,78 kN/m
Support spacing 4.0 m 0,4 kN/m
Surface Hot-dip galvanised
Usable cross-section 12000 mm²
Usable cross-section 120 cm²
Version of the rungs Profile perforated
Wide-span version no
Width 300 mm

Technical data

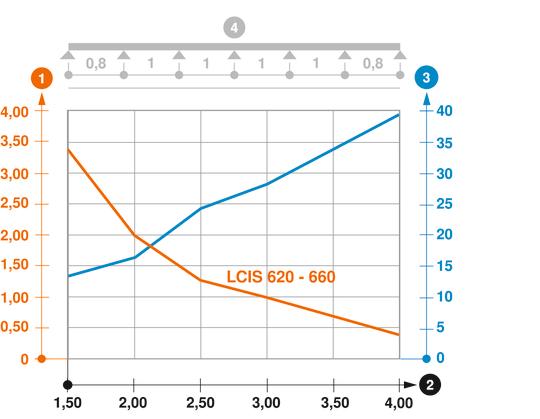

Load diagram, cable ladder, type LCIS 60

Load diagram, cable ladder, type LCIS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Maintain electrical functions Item no. Quantity SSU
LCIS 620 3 FT 3000 mm 200 mm 1.5 mm no 6209721
3 m
LCIS 630 3 FT 3000 mm 300 mm 1.5 mm no 6209723
3 m
LCIS 640 3 FT 3000 mm 400 mm 1.5 mm no 6209725
3 m
LCIS 650 3 FT 3000 mm 500 mm 1.5 mm no 6209727
3 m
LCIS 660 3 FT 3000 mm 600 mm 1.5 mm no 6209729
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU

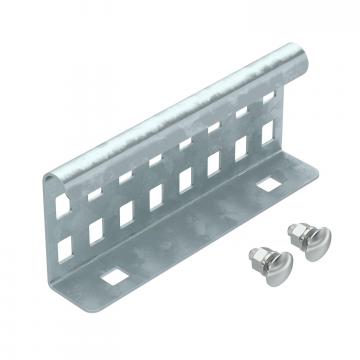

Straight connector FT Straight connector FT LVG 60 FT 6208843
10 piece

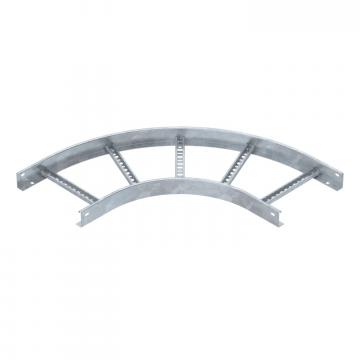

90° bend 60 FT 90° bend 60 FT LB 90 630 R3 FT 6225064
1 piece

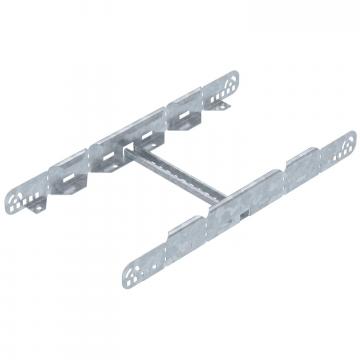

Multifunctional connector FT Multifunctional connector FT LMFV 630 FT 6225732
1 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 300 FT 6051383
3 m
Barrier strip 45 DD Barrier strip 45 DD TSG 45 DD 6062321
3 m

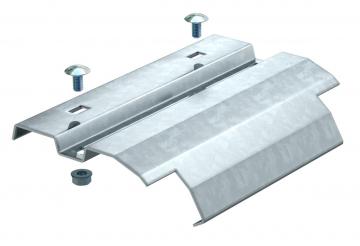

Drop-out plate FT Drop-out plate FT LAB 30 FT 6220444
25 piece

Mounting accessories

Products Types Item no. Quantity SSU
Protective cap 60 Protective cap 60 SKH 60 OR 6222537
40 Pair
Clamping piece for separating retainer fastening A2 Clamping piece for separating retainer fastening A2 KS KL A2 6062284
30 piece
