Cable ladder LCIS 60, 6 m C30 A4 6000 | 500 | 1.5 | no

Cable ladder LCIS 60, 6 m C30 A4

Item no. 6207208 | EAN 4012196431991

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

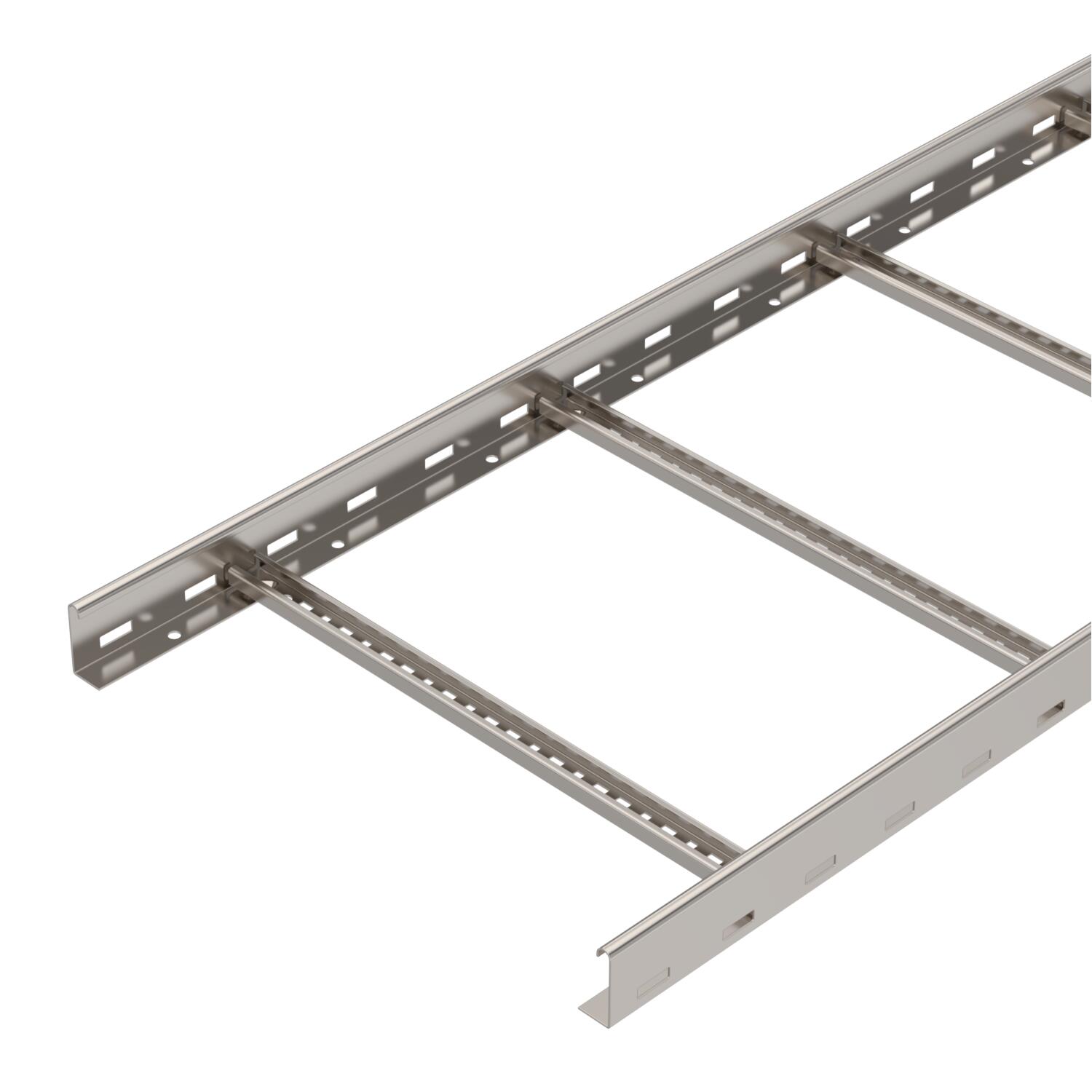

Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

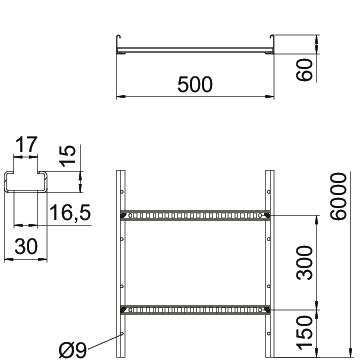

Dimension	60x500x6000
Dimension B	500 mm
Fastening of rung	Welded
Height	60 mm
Length	6000 ft
Length	6000 mm
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	yes
Side perforation	yes

Side rail version	Flat profile
Support spacing 1.5 m	3,3 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,3 kN/m
Support spacing 3.0 m	1 kN/m
Support spacing 3.5 m	0,78 kN/m
Support spacing 4.0 m	0,4 kN/m
Surface	Bright, treated
Usable cross-section	200 cm²
Usable cross-section	20000 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	500 mm

Technical data

Load diagram, cable ladder, type LCIS 60

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 620 6 A4	6000 mm	200 mm	1.5 mm	no	6207202	m	6 m
LCIS 630 6 A4	6000 mm	300 mm	1.5 mm	no	6207204	m	6 m
LCIS 640 6 A4	6000 mm	400 mm	1.5 mm	no	6207206	m	30 m
LCIS 650 6 A4	6000 mm	500 mm	1.5 mm	no	6207208	m	6 m
LCIS 660 6 A4	6000 mm	600 mm	1.5 mm	no	6207210	m	6 m
