Cable ladder LCIS 60, 6 m C30 A4

Item no. 6207210 | EAN 4012196432004

6000 mm
1.5 mm
no
Product description

Product description

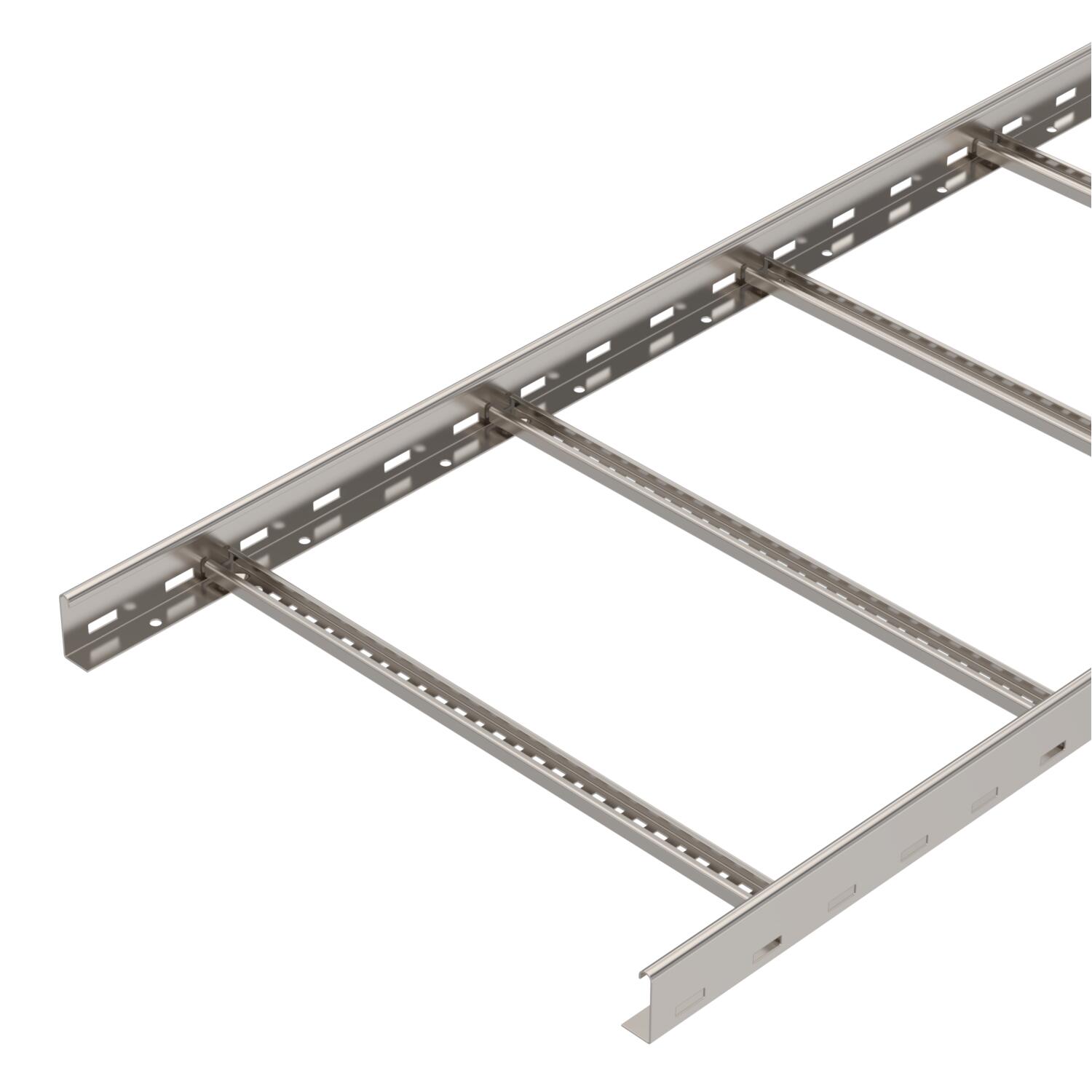

Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
Technical data

Technical data

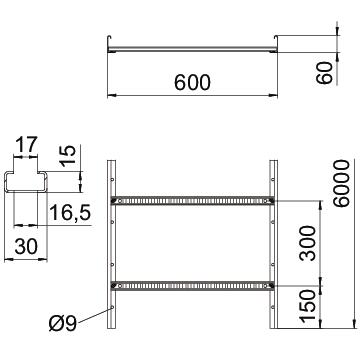

Dimension 60x600x6000
Dimension B 600 mm
Fastening of rung Welded
Height 60 mm
Length 6000 mm
Length 6000 ft
Maintain electrical functions no
Material Stainless steel
Rail thickness 1,5 mm
Rung distance 300 mm
Rung slot dimension 16,50
Rustproof steel, pickled yes
Side perforation yes
Side rail version Flat profile
Support spacing 1.5 m 3,3 kN/m
Support spacing 2.0 m 2 kN/m
Support spacing 2.5 m 1,3 kN/m
Support spacing 3.0 m 1 kN/m
Support spacing 3.5 m 0,78 kN/m
Support spacing 4.0 m 0,4 kN/m
Surface Bright, treated
Usable cross-section 24000 mm²
Usable cross-section 240 cm²
Version of the rungs Profile perforated
Wide-span version no
Width 600 mm

Technical data

Load diagram, cable ladder, type LCIS 60

Load diagram, cable ladder, type LCIS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Maintain electrical functions Item no. Quantity SSU
LCIS 620 6 A4 6000 mm 200 mm 1.5 mm no 6207202
6 m
LCIS 630 6 A4 6000 mm 300 mm 1.5 mm no 6207204
6 m
LCIS 640 6 A4 6000 mm 400 mm 1.5 mm no 6207206
30 m
LCIS 650 6 A4 6000 mm 500 mm 1.5 mm no 6207208
6 m
LCIS 660 6 A4 6000 mm 600 mm 1.5 mm no 6207210
6 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector A4 Straight connector A4 LVG 60 A4 6208835
10 piece
90° bend 60 A4 90° bend 60 A4 LB 90 660 R3 A4 6225110
1 piece
Separating retainer 45 A4 Separating retainer 45 A4 TSG 45 A4 6062028
3 m

Mounting accessories

Products Types Item no. Quantity SSU
Protective cap 60 Protective cap 60 SKH 60 OR 6222537
40 Pair
Clamping piece for separating retainer fastening A2 Clamping piece for separating retainer fastening A2 KS KL A2 6062284
30 piece
Downloads

Download

Download

Download

Download
Download

LCIS 660 6 A4 / 6207210
Download
