Cable ladder LG 110, 6 m VS FT

Item no. 6216465 | EAN 4012195065371

6000 mm
1.5 mm
no
Steel
Hot-dip galvanised
Product description
Product description

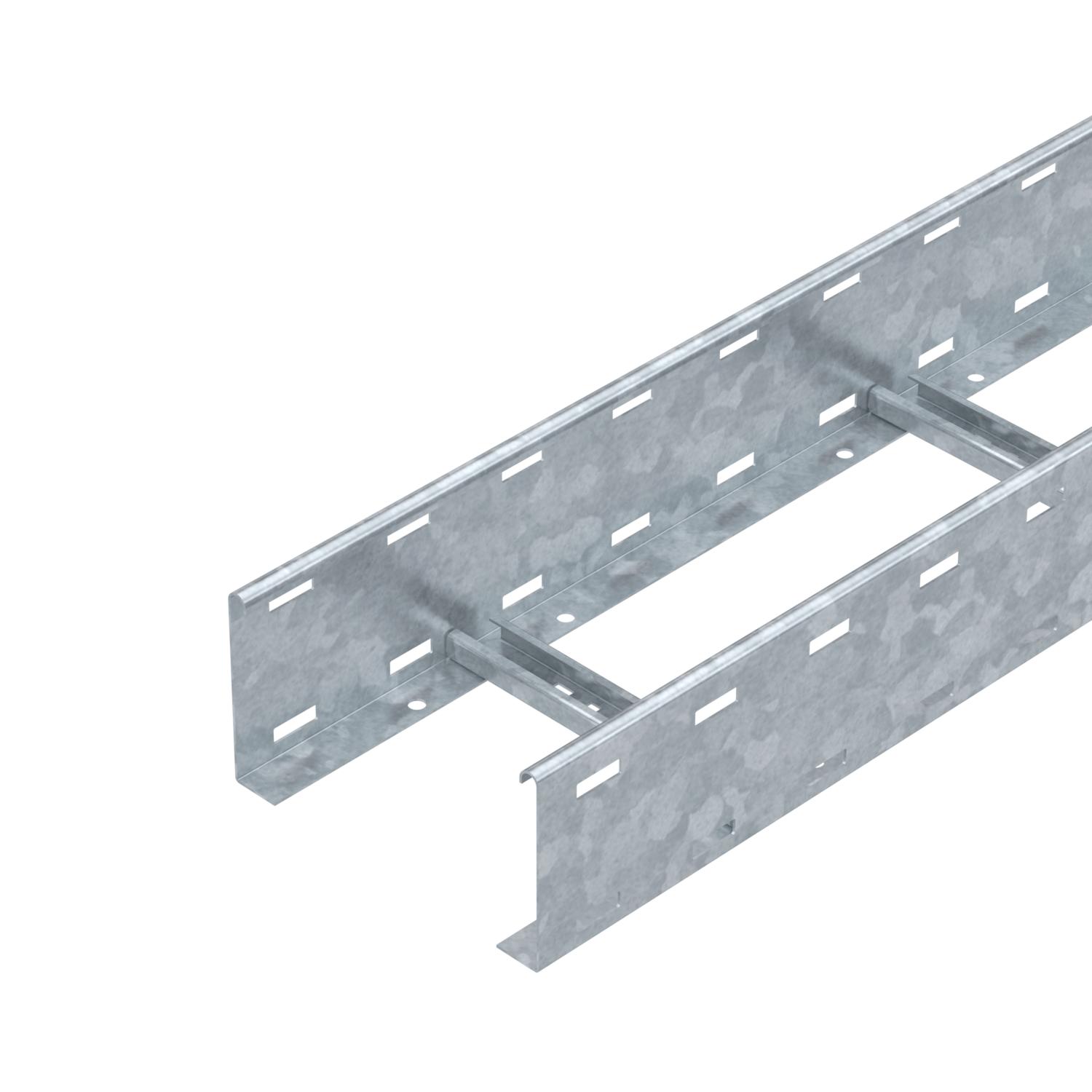

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc
CO₂ Footprint (GWP) Cradle-to-Gate 8,9686 kg CO₂e / 1 Meter
Dimension 110x200x6000
Dimension 110x200x6000
Dimension B 200 mm
Fastening of rung Blind riveted
Height 110 mm
Length 6000 mm
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rung distance 300 mm
Rung slot dimension 16,50
Rustproof steel, pickled no
Side perforation yes
Side rail version Flat profile
Support spacing 2.0 m 3,1 kN/m
Support spacing 2.5 m 2 kN/m
Support spacing 3.0 m 1,4 kN/m
Support spacing 3.5 m 0,9 kN/m
Support spacing 4.0 m 0,65 kN/m
Support spacing 4.5 m 0,5 kN/m
Support spacing 5.0 m 0,5 kN/m
Surface Hot-dip galvanised
Usable cross-section 188 cm²
Usable cross-section 18800 mm²
Version of the rungs Profile perforated
Wide-span version no
Width 200 mm

Technical data

Load diagram, cable ladder, type LG 110 VS

Load diagram, cable ladder, type LG 110 VS
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Maintain electrical functions Material Surface Item no. Quantity SSU
LG 112 VS 6 FT 6000 mm 200 mm 1.5 mm no Steel Hot-dip galvanised 6216465
6 m

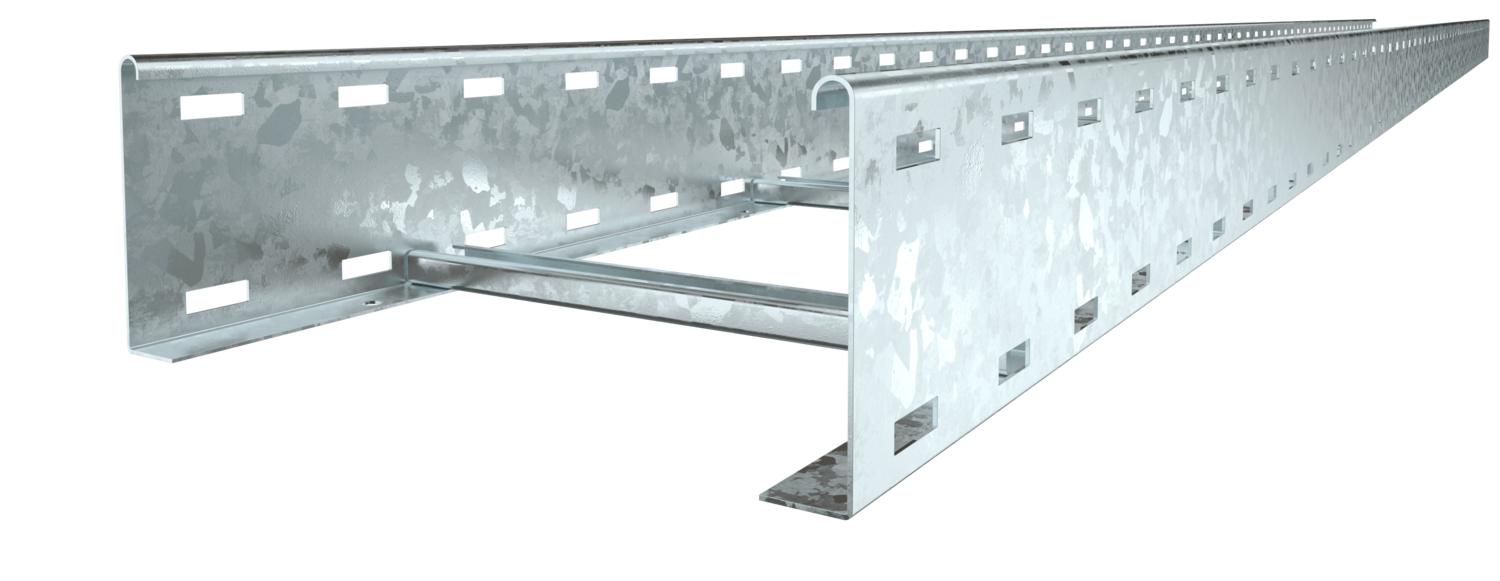

LG 113 VS 6 FT 6000 mm 300 mm 1.5 mm no Steel Hot-dip galvanised 6216468
6 m
LG 114 VS 6 FT 6000 mm 400 mm 1.5 mm no Steel Hot-dip galvanised 6216471
6 m
LG 115 VS 6 FT 6000 mm 500 mm 1.5 mm no Steel Hot-dip galvanised 6216474
6 m
LG 116 VS 6 FT 6000 mm 600 mm 1.5 mm no Steel Hot-dip galvanised 6216477
6 m
Accessories

System accessories

Products Types Item no. Quantity SSU

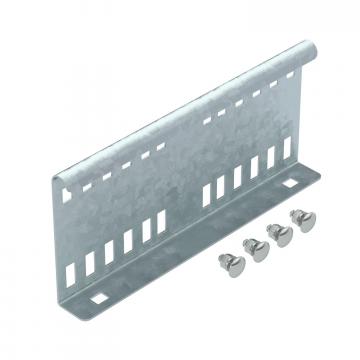

Straight connector FT Straight connector FT LVG 110 FT 6216548
10 piece
Multifunctional connector FT Multifunctional connector FT LMFV 1120 FT 6225770
1 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 200 FT 6051367
3 m
Barrier strip 85 DD Barrier strip 85 DD TSG 85 DD 6062331
3 m
Drop-out plate FT Drop-out plate FT LAB 20 FT 6220436
20 piece

Mounting accessories

Products Types Item no. Quantity SSU
End cap End cap SKH 110 OR 6222553
20 Pair
Clamping piece for separating retainer fastening A2 Clamping piece for separating retainer fastening A2 KS KL A2 6062284
30 piece
