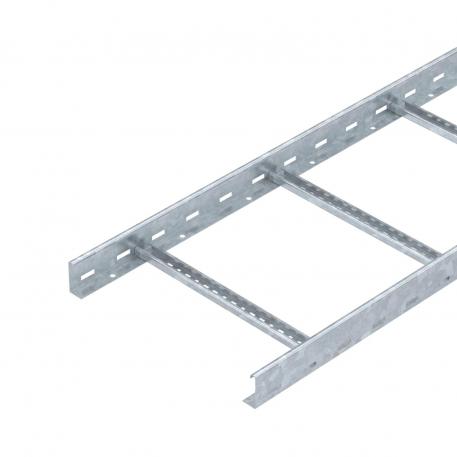

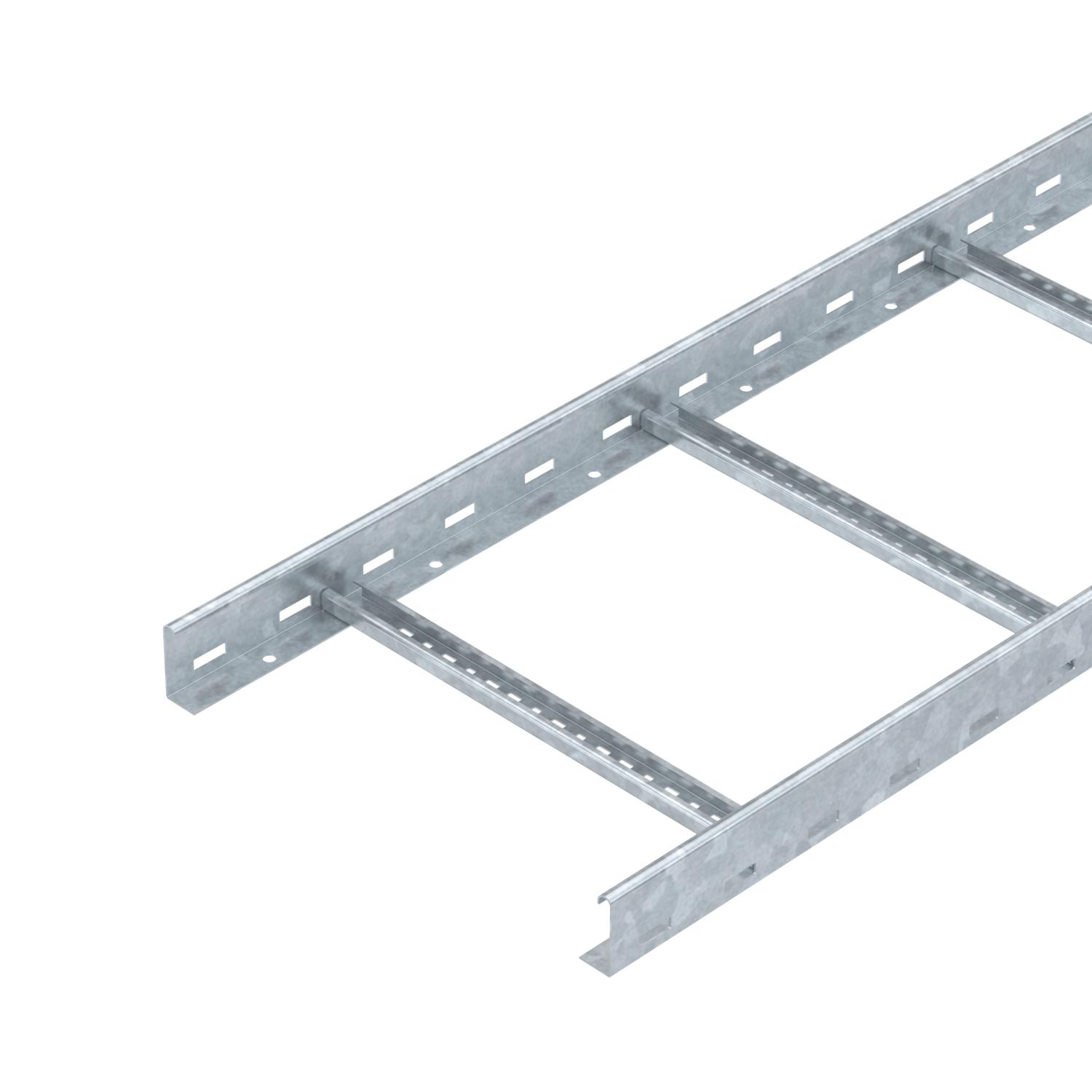

Cable ladder LG 60, 3 m VS FS
Item no. 6208544 | EAN 4012195064060
- Product description
-
Product descriptionCable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Additional widths are available on request.
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 7,7542 kg CO₂e / 1 Meter Dimension 60x400x3000 Dimension 60x400x3000 Dimension B 400 mm Fastening of rung Blind riveted Fire protection Maintenance of electrical function of standard support structure Height 60 mm Length 3000 mm Maintain electrical functions yes Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rung slot dimension 16,50 Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2,25 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,75 kN/m Support spacing 4.0 m 0,45 kN/m Surface Strip galvanized Usable cross-section 198 cm² Usable cross-section 19800 mm² Version of the rungs Profile perforated Wide-span version no Width 400 mm - All types
-
All types
- Downloads
-
Data sheet LG 640 VS 3 FS / 6208544 , 0.24MB , pdfEU declaration of conformity LG 640 VS 3 FS / 6208544 , 0.10MB , pdfUK Declaration of Conformity LG 640 VS 3 FS / 6208544 , 0.09MB , pdfREACH Declaration of conformity LG 640 VS 3 FS / 6208544 , 0.12MB , pdfRoHS Declaration of conformity LG 640 VS 3 FS / 6208544 , 0.12MB , pdf
