Product description

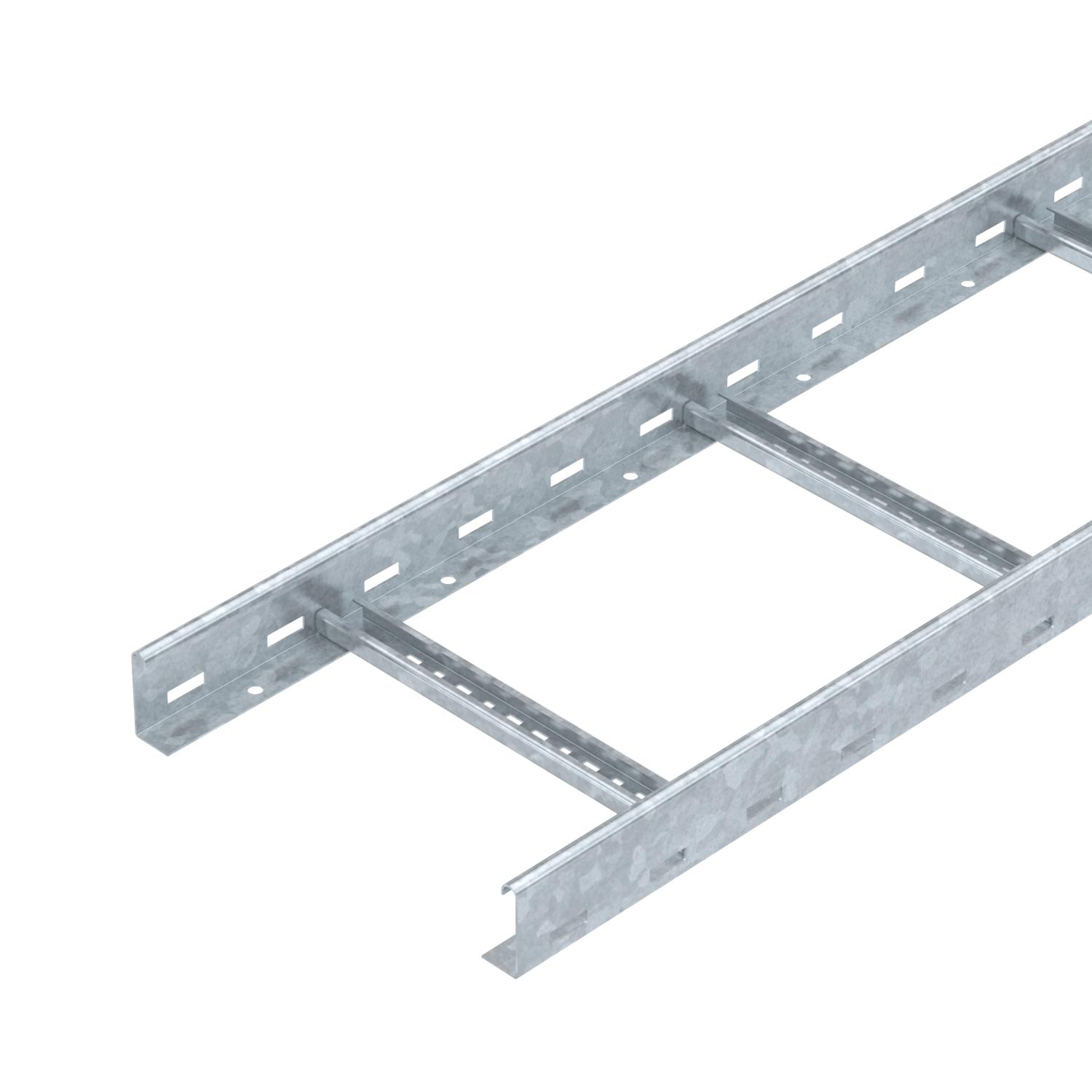

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Additional widths are available on request.
- Technical data
-
Technical data
Dimension 60x300x3000 Fastening of rung Blind riveted Fire protection Maintenance of electrical function of standard support structure Maintain electrical functions yes Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Surface Hot-dip galvanised Usable cross-section 148 cm² Usable cross-section 14800 mm² Version of the rungs Profile perforated Wide-span version no Dimensions
Dimension B 300 mm Height 60 mm Length 3000 ft Length 3000 mm Rung slot dimension 16,50 Width 300 mm Loads
Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2,25 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,75 kN/m Support spacing 4.0 m 0,45 kN/m Technical data
Load diagram, cable ladder, type LG 60 VS
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
