Cable ladder LG 60, 6 m VS FT SOMY
Item no. 7186363 | EAN 4012196562756
- Product description
-
Product description

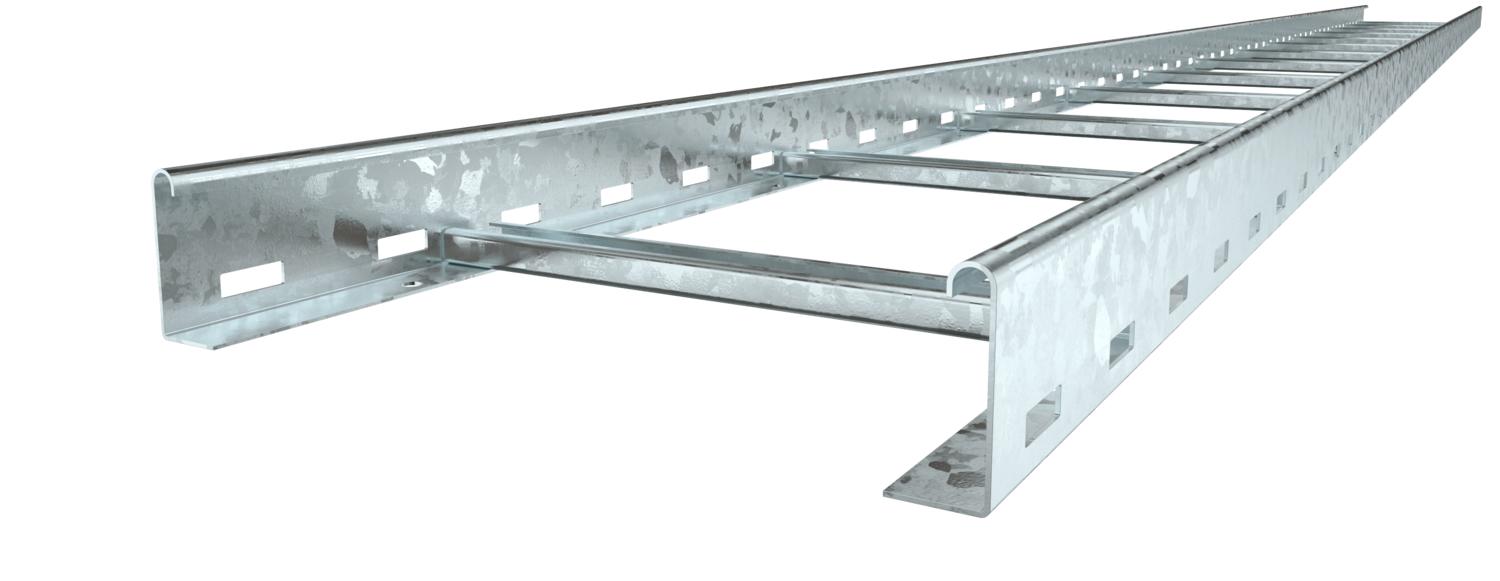

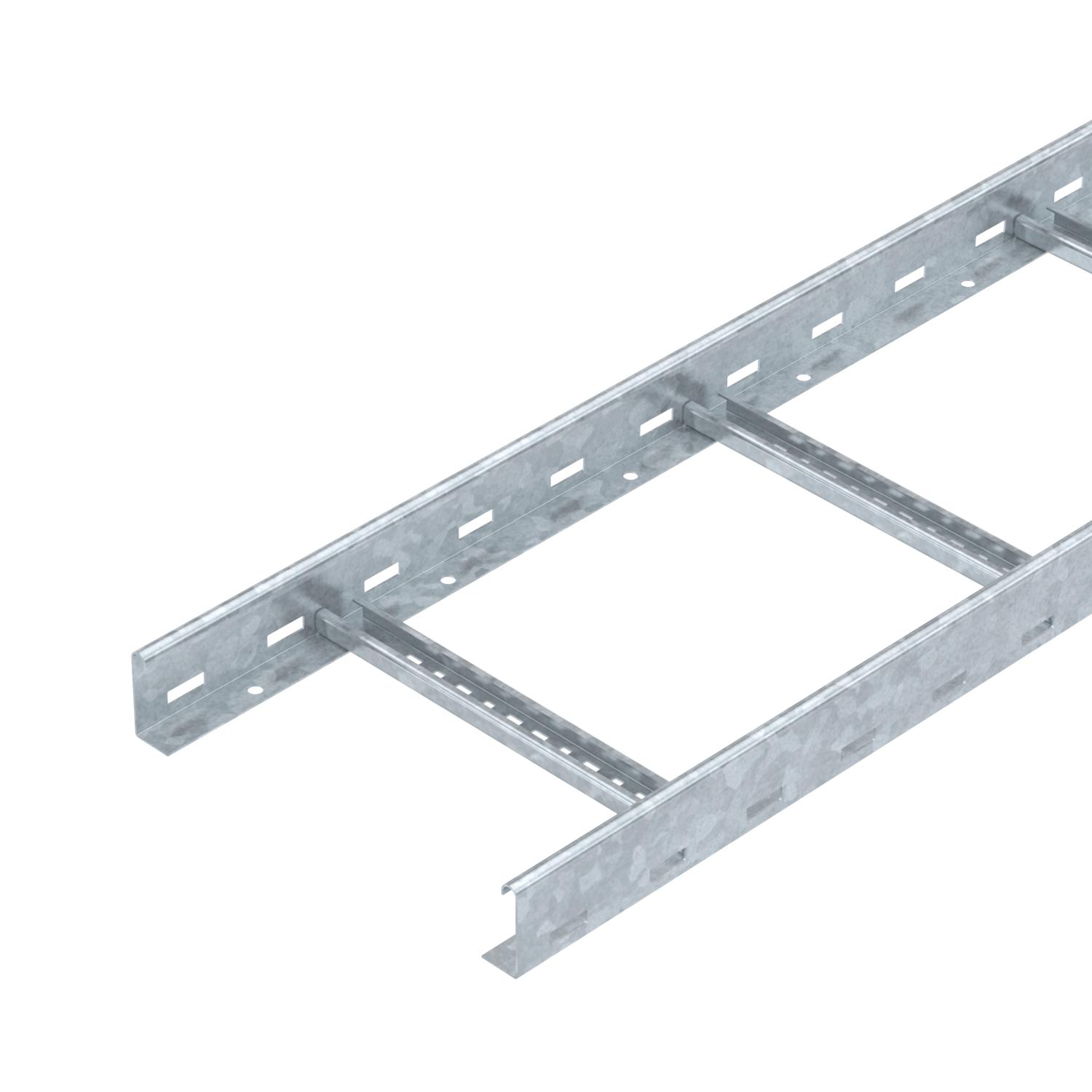

Cable ladder with 60 mm side height with riveted C profile rungs which are open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data

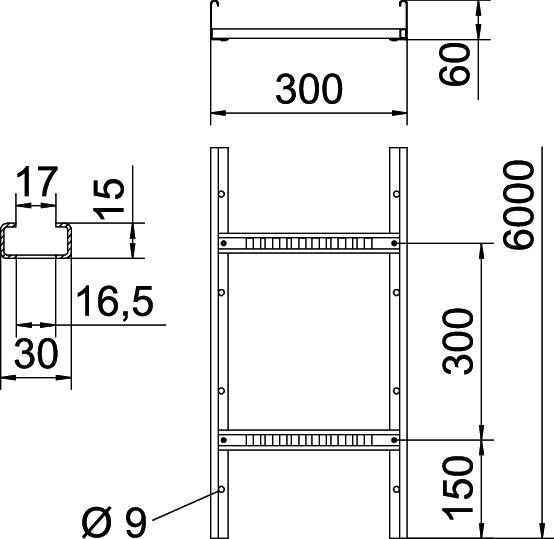

Dimension 60x300x6000 Dimension 60 x 300 Dimension B 300 mm Fastening of rung Blind riveted Height 60 mm Length 6000 mm Length 6000 ft Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rung slot dimension 16,50 Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2,25 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,75 kN/m Support spacing 4.0 m 0,45 kN/m Surface Hot-dip galvanised 85 µm Usable cross-section 14800 mm² Usable cross-section 148 cm² Version of the rungs Profile perforated Wide-span version no Width 300 mm Technical data
Load diagram, cable ladder, type LG 60 VS
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
