Cable ladder LG 60, 6 m VS FT SOMY
Item no. 7188640 | EAN 4012195020875
- Product description
-
Product description

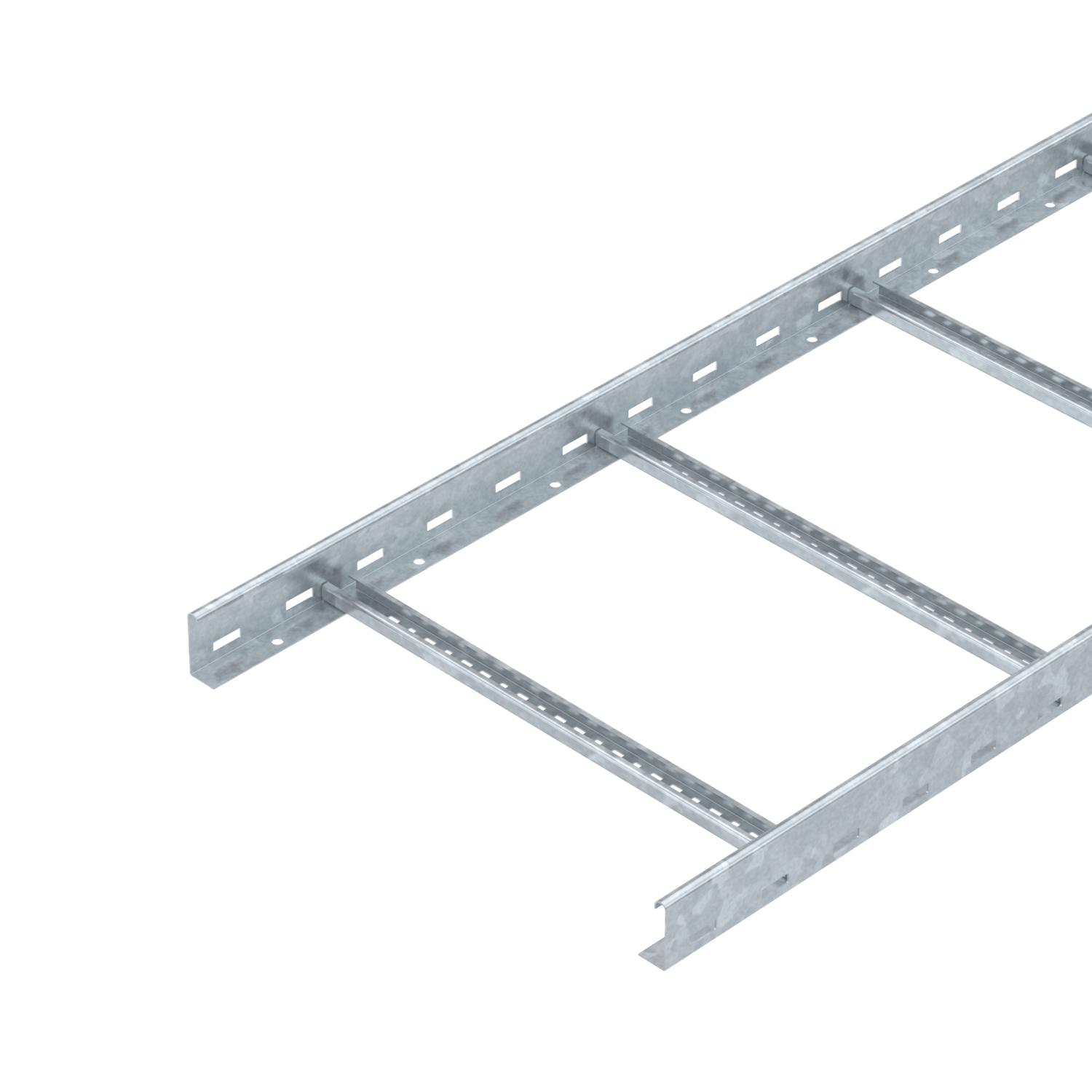

Cable ladder with 60 mm side height with riveted C profile rungs which are open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data

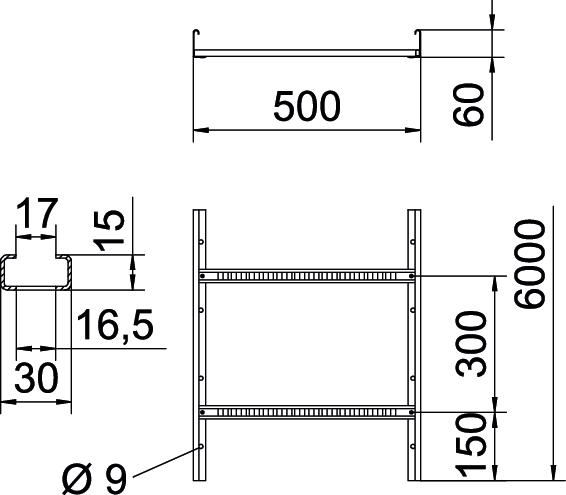

Dimension 60x500x6000 Fastening of rung Blind riveted Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Surface Hot-dip galvanised 85 µm Usable cross-section 24800 mm² Usable cross-section 248 cm² Version of the rungs Profile perforated Wide-span version no Dimensions
Dimension B 500 mm Height 60 mm Length 6000 mm Length 6000 ft Rung slot dimension 16,50 Width 500 mm Loads
Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2,25 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,75 kN/m Support spacing 4.0 m 0,45 kN/m Technical data
Load diagram, cable ladder, type LG 60 VS
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Cover with turn buckle FT
DRL 500 FT 6051448 3 m
Cover with turn buckle FT
DRL 600 FT 6051472 3 m - Downloads
-
Data sheet LG 650 VS 6 FTSO / 7188640 , 0.25MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LG 650 VS 6 FTSO / 7188640 , 0.15MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfNo invitation to tender text is available for this product.
