Note: This article is discontinued.

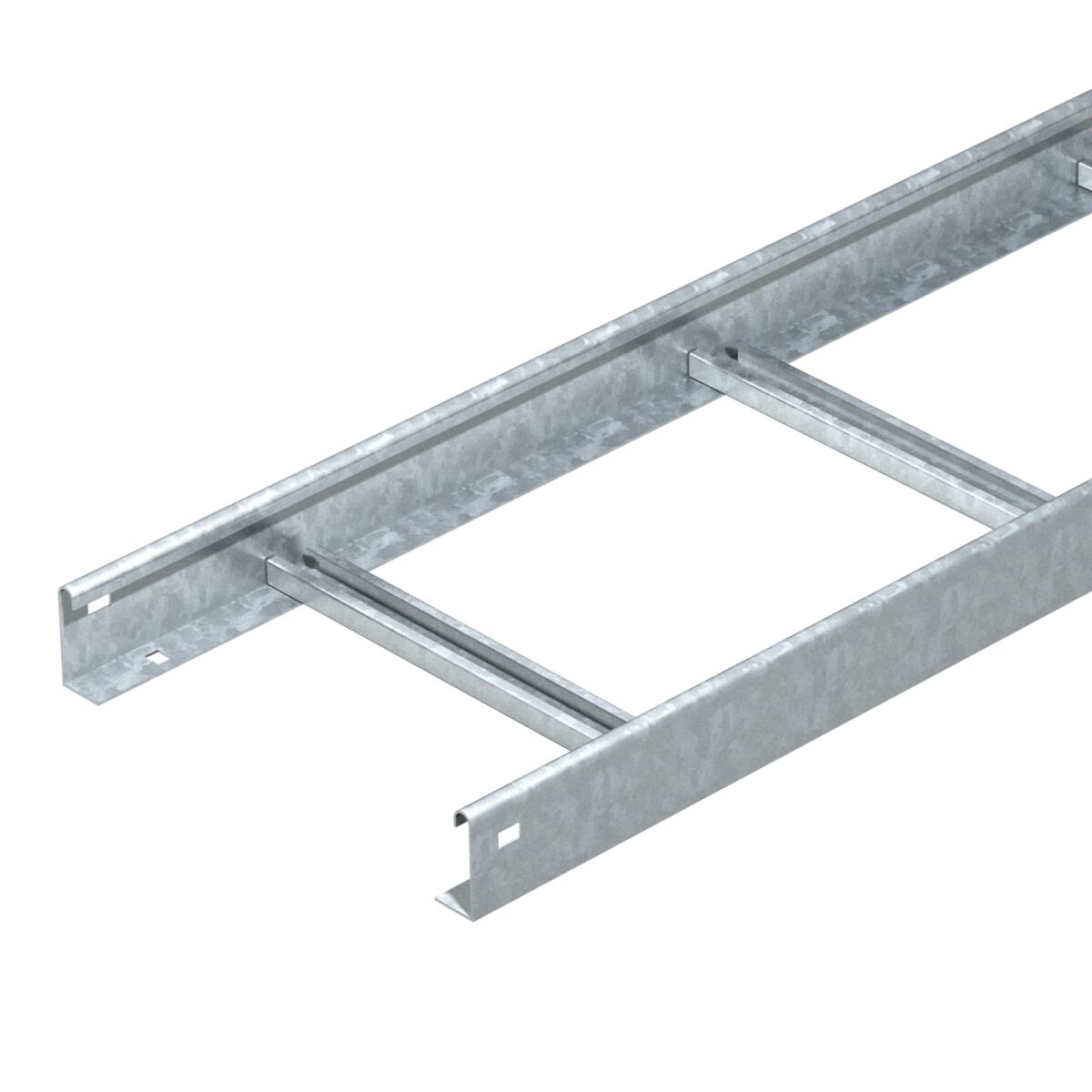

Cable ladder SL VSF F
Item no. 6207928 | EAN 4012196705559
- Product description
-
Product descriptionCable ladder for horizontal routing of cables. Can be used as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical functionality classes E30 to E90. With riveted C profile rung, open in an upward direction.
-
- Technical data
-
Technical data

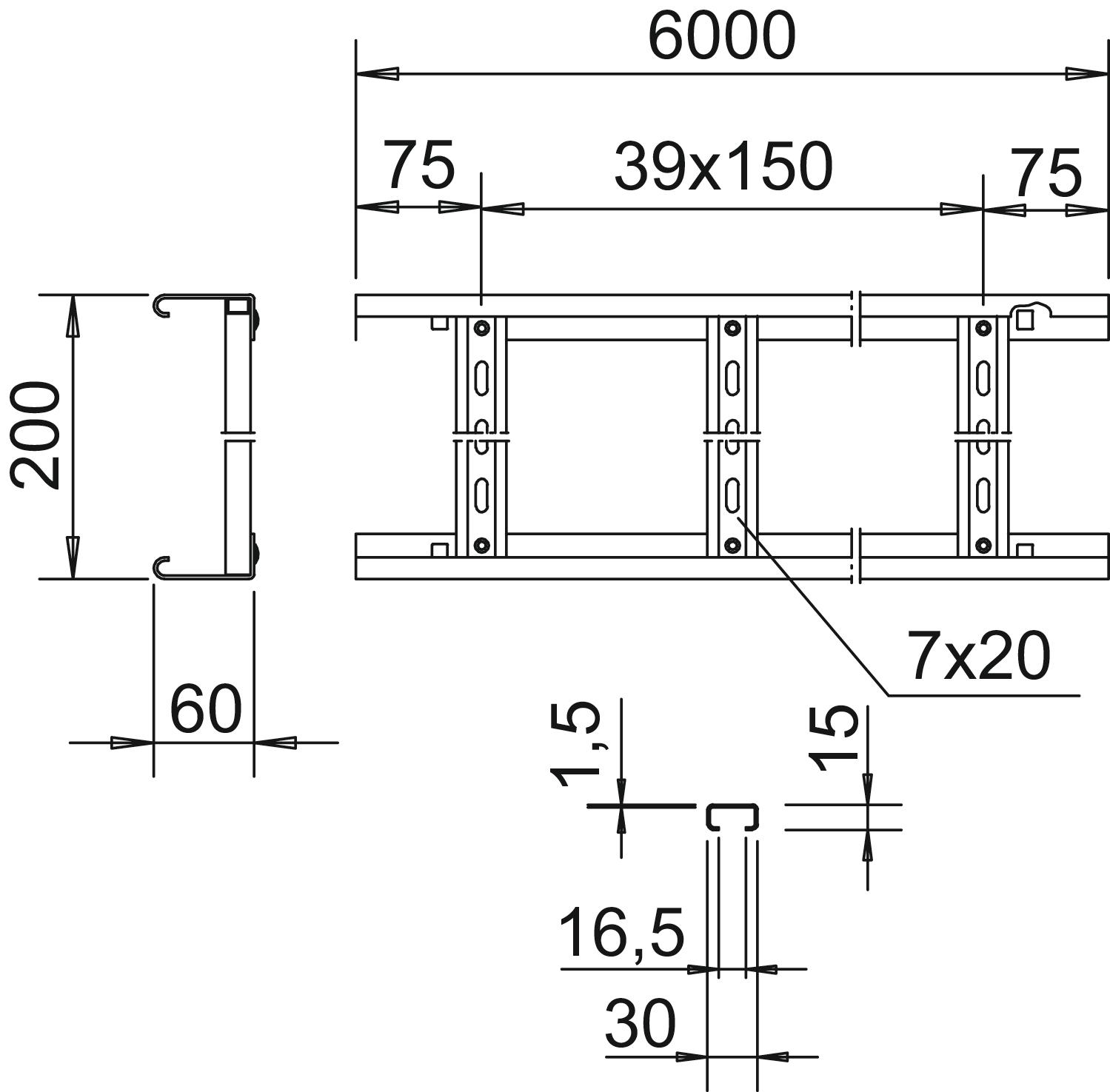

CO₂ Footprint (GWP) Cradle-to-Gate 9,415 kg CO₂e / 1 Meter Dimension 60x200x6000 Dimension B 200 mm Fastening of rung Miscellaneous Height 60 mm Length 6000 mm Length 6000 ft Maintain electrical functions no Material Steel Rail thickness 2 mm Rung distance 150 mm Rustproof steel, pickled no Side perforation no Side rail version Profile (open) Surface Strip galvanized Usable cross-section 9800 mm² Usable cross-section 98 cm² Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet SL 620 VSF F / 6207928 , 0.24MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity SL 620 VSF F / 6207928 , 0.12MB , pdfRoHS Declaration of conformity SL 620 VSF F / 6207928 , 0.13MB , pdfNo invitation to tender text is available for this product.
