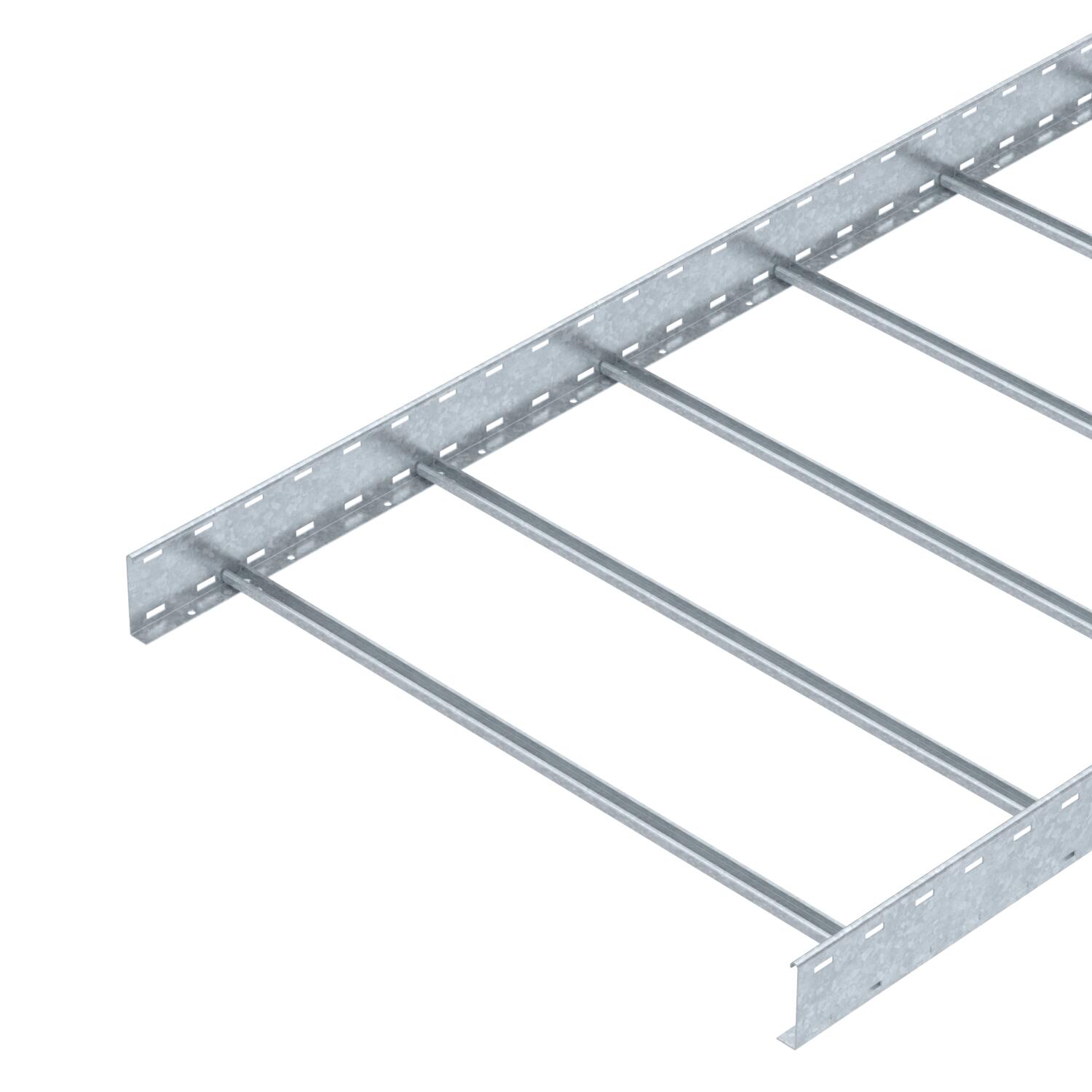

Cable ladder SLCS 110, 3 m C30 FT

Item no. 6207320 | EAN 4012196431946

3000 mm
2 mm
no
Product description
Product description
Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc
CO₂ Footprint (GWP) Cradle-to-Gate 17,196 kg CO₂e / 1 Meter

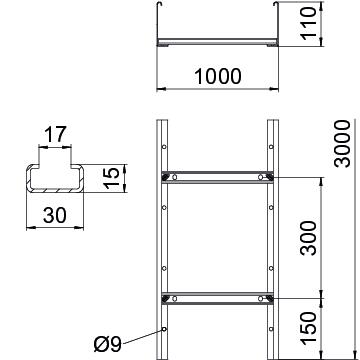

Dimension 110x1000x3m
Dimension B 1000 mm
Fastening of rung Welded
Height 110 mm
Length 3000 ft
Length 3000 mm
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rung distance 300 mm
Rustproof steel, pickled no
Side perforation yes
Side rail version Flat profile
Support spacing 2.0 m 3,5 kN/m
Support spacing 3.0 m 1,9 kN/m
Support spacing 4.0 m 1 kN/m
Support spacing 5.0 m 0,8 kN/m
Support spacing 6.0 m 0,25 kN/m
Surface Hot-dip galvanised
Usable cross-section 900 cm²
Usable cross-section 90000 mm²
Version of the rungs Profile unperforated
Wide-span version no
Width 1000 mm

Technical data

Load diagram, cable ladder, type SLCS 110

Load diagram, cable ladder, type SLCS 110
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Maintain electrical functions Item no. Quantity SSU
SLCS 1120 3 FT 3000 mm 200 mm 2 mm no 6207302
3 m
SLCS 1130 3 FT 3000 mm 300 mm 2 mm no 6207304
3 m
SLCS 1140 3 FT 3000 mm 400 mm 2 mm no 6207306
3 m
SLCS 1145 3 FT 3000 mm 450 mm 2 mm no 6207308
30 m
SLCS 1150 3 FT 3000 mm 500 mm 2 mm no 6207310
3 m
SLCS 1160 3 FT 3000 mm 600 mm 2 mm no 6207312
3 m
SLCS 1175 3 FT 3000 mm 750 mm 2 mm no 6207314
3 m
SLCS 1180 3 FT 3000 mm 800 mm 2 mm no 6207316
30 m
SLCS 1190 3 FT 3000 mm 900 mm 2 mm no 6207318
30 m
SLCS 11100 3 FT 3000 mm 1000 mm 2 mm no 6207320
30 m
SLCS 11120 3 FT 3000 mm 1200 mm 2 mm no 6207322
30 m
