Cable ladder SLCS 110, 3 m C30 FT 3000 | 600 | 2 | no

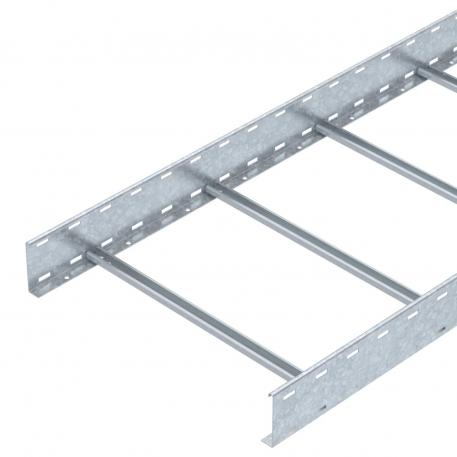

Cable ladder SLCS 110, 3 m C30 FT

Item no. 6207312 | EAN 4012196431908

Item no. / Types

Length	3000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

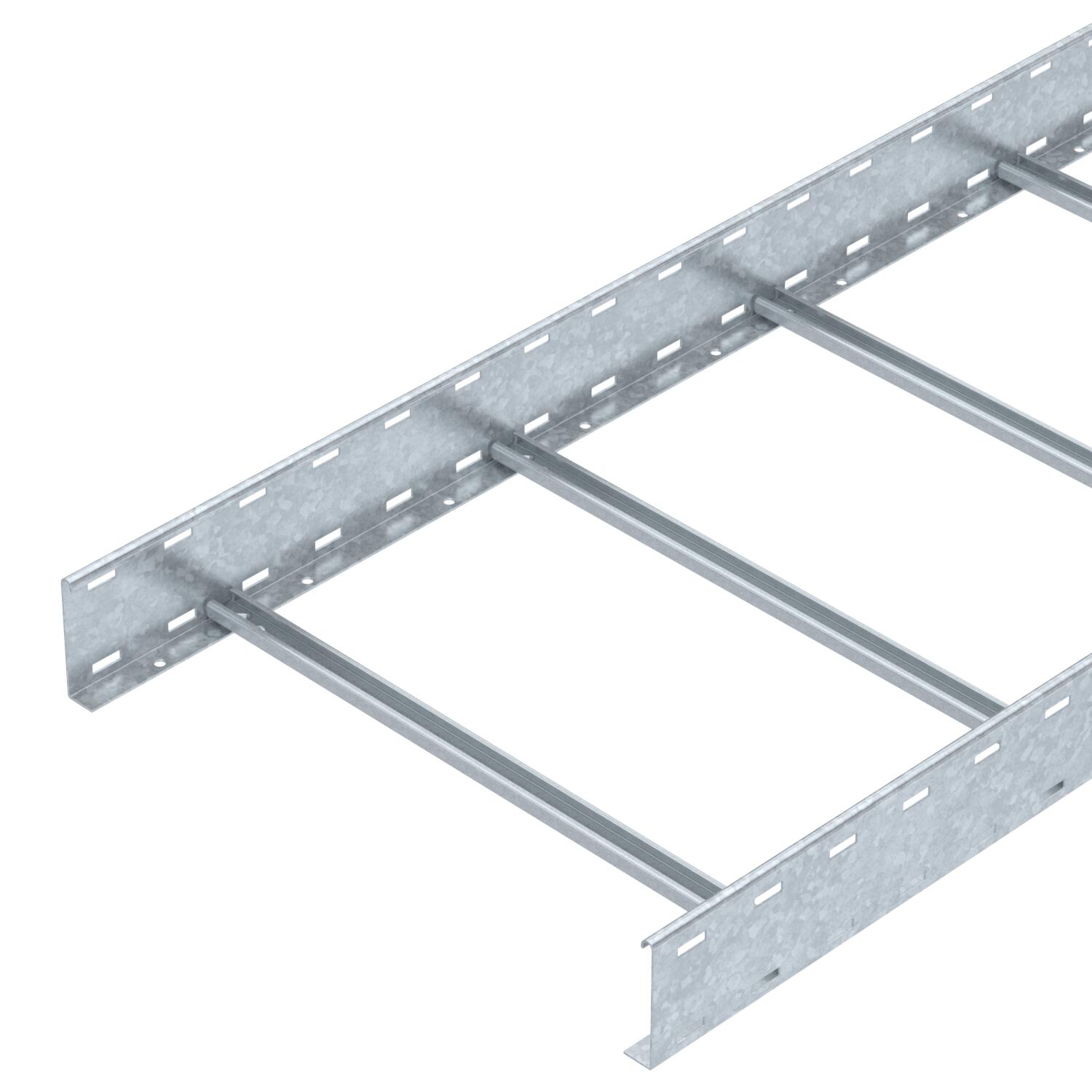

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

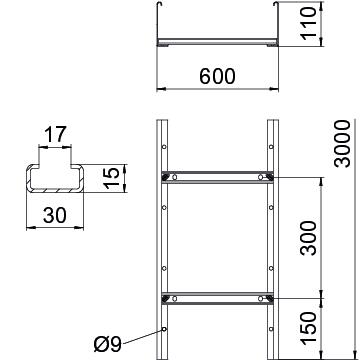

Dimension	110x600x3000
Dimension B	600 mm
Fastening of rung	Welded
Height	110 mm
Length	3000 ft
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	2 mm
Rung distance	300 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile

Support spacing 2.0 m	4 kN/m
Support spacing 2.5 m	3 kN/m
Support spacing 3.0 m	2,3 kN/m
Support spacing 3.5 m	1,6 kN/m
Support spacing 4.0 m	1 kN/m
Support spacing 4.5 m	0,83 kN/m
Support spacing 5.0 m	0,7 kN/m
Support spacing 6.0 m	0,25 kN/m
Surface	Hot-dip galvanised
Usable cross-section	540 cm²
Usable cross-section	54000 mm²
Version of the rungs	Profile unperforated
Wide-span version	no
Width	600 mm

Technical data

Load diagram, cable ladder, type SLCS 110

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
SLCS 1120 3 FT	3000 mm	200 mm	2 mm	no	6207302	m	3 m
SLCS 1130 3 FT	3000 mm	300 mm	2 mm	no	6207304	m	3 m
SLCS 1140 3 FT	3000 mm	400 mm	2 mm	no	6207306	m	3 m
SLCS 1145 3 FT	3000 mm	450 mm	2 mm	no	6207308	m	30 m
SLCS 1150 3 FT	3000 mm	500 mm	2 mm	no	6207310	m	3 m
SLCS 1160 3 FT	3000 mm	600 mm	2 mm	no	6207312	m	3 m
SLCS 1175 3 FT	3000 mm	750 mm	2 mm	no	6207314	m	3 m
SLCS 1180 3 FT	3000 mm	800 mm	2 mm	no	6207316	m	30 m
SLCS 1190 3 FT	3000 mm	900 mm	2 mm	no	6207318	m	30 m
SLCS 11100 3 FT	3000 mm	1000 mm	2 mm	no	6207320	m	30 m
SLCS 11120 3 FT	3000 mm	1200 mm	2 mm	no	6207322	m	30 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 110 FT	6216548	piece	10 piece

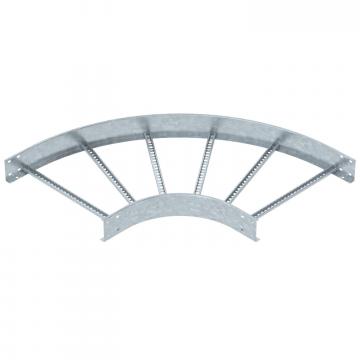

90° bend 110 FT	LB 90 1160 R3 FT	6225152	piece	1 piece
Multifunctional connector FT	LMFV 1160 FT	6225780	piece	1 piece
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Drop-out plate FT	LAB 60 FT	6220479	piece	15 piece
