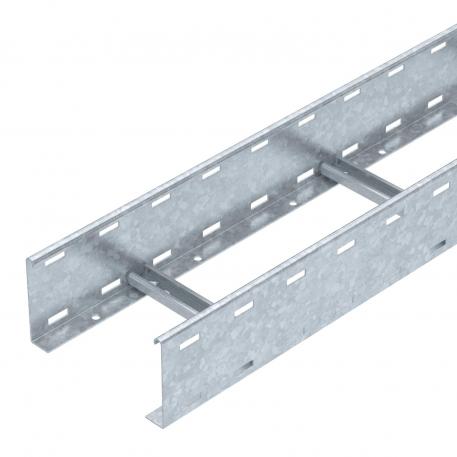

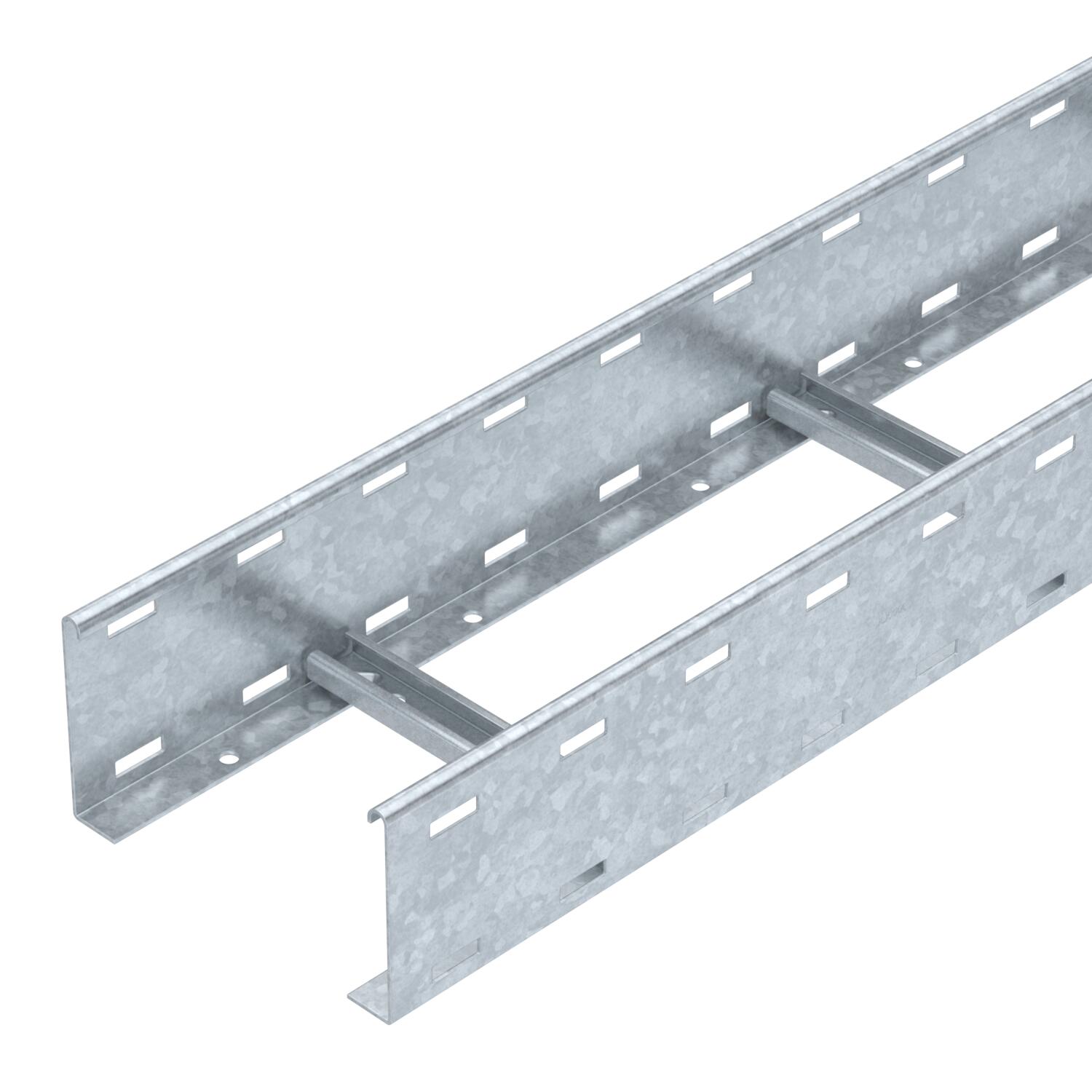

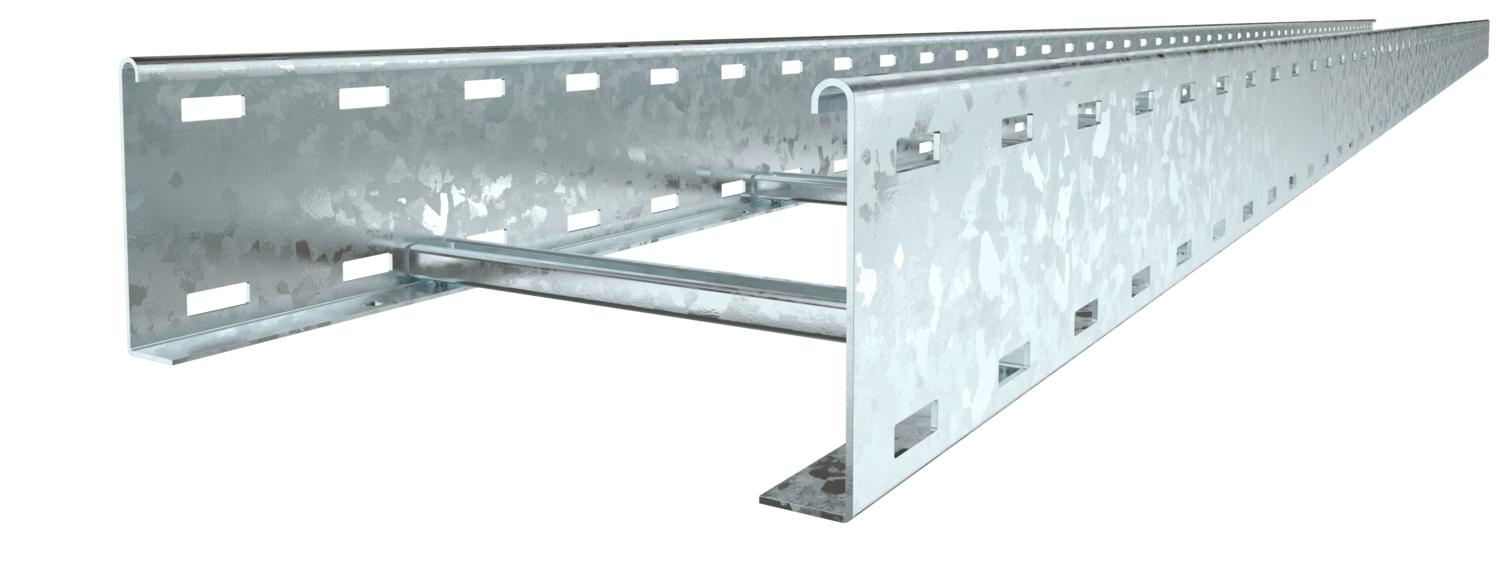

Cable ladder SLCS 110, 3 m C30 FT SOMY

Item no. 7186400 | EAN 4012196693627

3000 mm
2 mm
no
Product description
Product description
Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate U clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc
CO₂ Footprint (GWP) Cradle-to-Gate 11,662 kg CO₂e / 1 Meter
Dimension 110x200x3000
Dimension B 200 mm
Height 110 mm
Length 3000 mm
Length 3000 ft
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rung distance 300 mm
Rung slot dimension 17,00
Side perforation yes
Support spacing 2.0 m 4 kN/m
Support spacing 3.0 m 2,3 kN/m
Support spacing 4.0 m 1 kN/m
Support spacing 5.0 m 0,7 kN/m
Support spacing 6.0 m 0,25 kN/m
Surface Hot-dip galvanised 85 µm
Usable cross-section 180 cm²
Usable cross-section 18000 mm²
Width 200 mm

Technical data

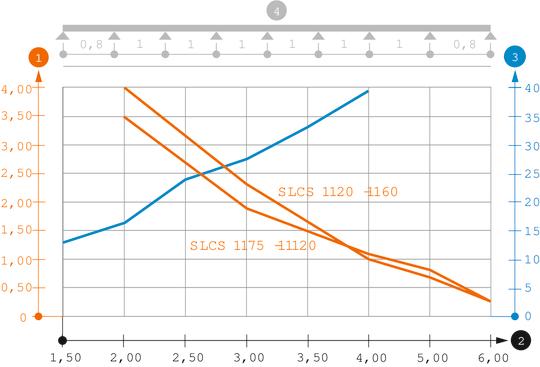

Load diagram, cable ladder, type SLCS 110

Load diagram, cable ladder, type SLCS 110
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Maintain electrical functions Item no. Quantity SSU
SLCS 1120 3 FTSO 3000 mm 200 mm 2 mm no 7186400
102 m
SLCS 1140 3 FTSO 3000 mm 400 mm 2 mm no 7186404
102 m
SLCS 1150 3 FTSO 3000 mm 500 mm 2 mm no 7186406
30 m
SLCS 1160 3 FTSO 3000 mm 600 mm 2 mm no 7186408
30 m
SLCS 1175 3 FTSO 3000 mm 750 mm 2 mm no 7186410
30 m
SLCS 1180 3 FTSO 3000 mm 800 mm 2 mm no 7186412
30 m
SLCS 1190 3 FTSO 3000 mm 900 mm 2 mm no 7186414
30 m
SLCS 11100 3FTSO 3000 mm 1000 mm 2 mm no 7186416
30 m
Accessories

System accessories

Products Types Item no. Quantity SSU

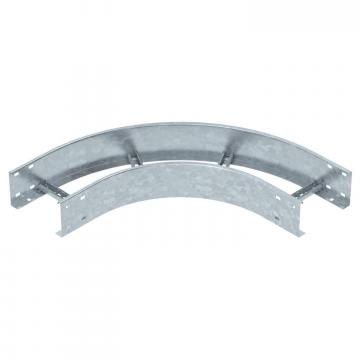

90° bend 110 FT 90° bend 110 FT LB 90 1120 R3 FT 6225142
1 piece
Cover with turn buckle FT SOMY Cover with turn buckle FT SOMY DRL 200 FT SO 7196035
3 m
Downloads

Download

Download
Download
Download

EU declaration of conformity SLCS 1120 3 FTSO / 7186400 , 0.10MB , pdf
Download
UK Declaration of Conformity SLCS 1120 3 FTSO / 7186400 , 0.09MB , pdf
Download

Download

Download
Download

SLCS 1120 3 FTSO / 7186400
Download
