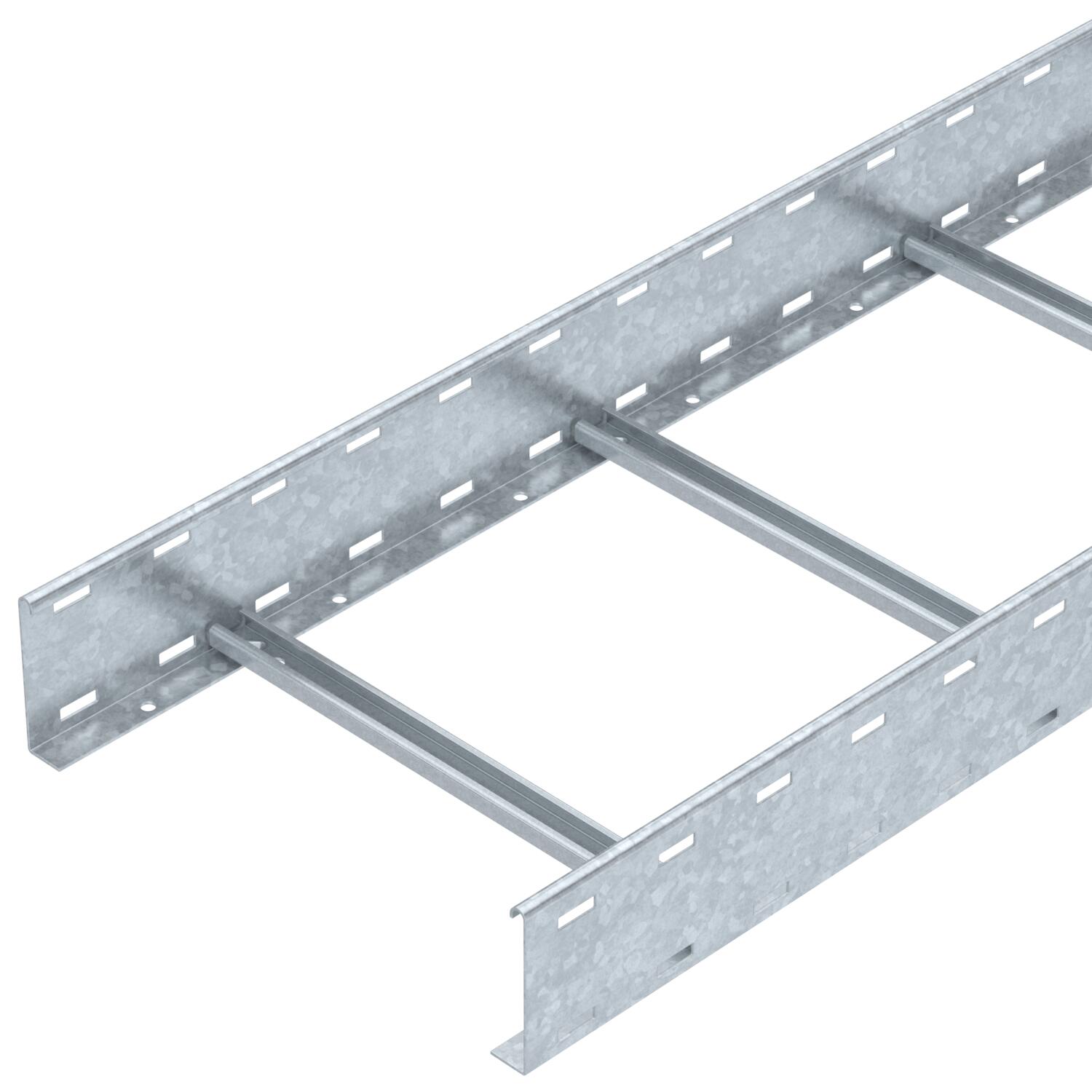

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate U clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data
Dimension 110x400x3000 Maintain electrical functions no Material Steel Rail thickness 2 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised 85 µm Usable cross-section 36000 mm² Usable cross-section 360 cm² Wide-span version no Dimensions
Dimension B 400 mm Height 110 mm Length 3000 mm Length 3000 ft Rung slot dimension 17,00 Width 400 mm Loads
Support spacing 2.0 m 4 kN/m Support spacing 3.0 m 2,3 kN/m Support spacing 4.0 m 1 kN/m Support spacing 5.0 m 0,7 kN/m Support spacing 6.0 m 0,25 kN/m Technical data

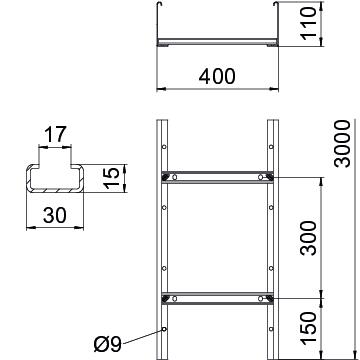

Load diagram, cable ladder, type SLCS 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
