Cable ladder SLCS 110, 3 m C30 FT SOMY
Item no. 7186408 | EAN 4012196696932
- Product description
-
Product description

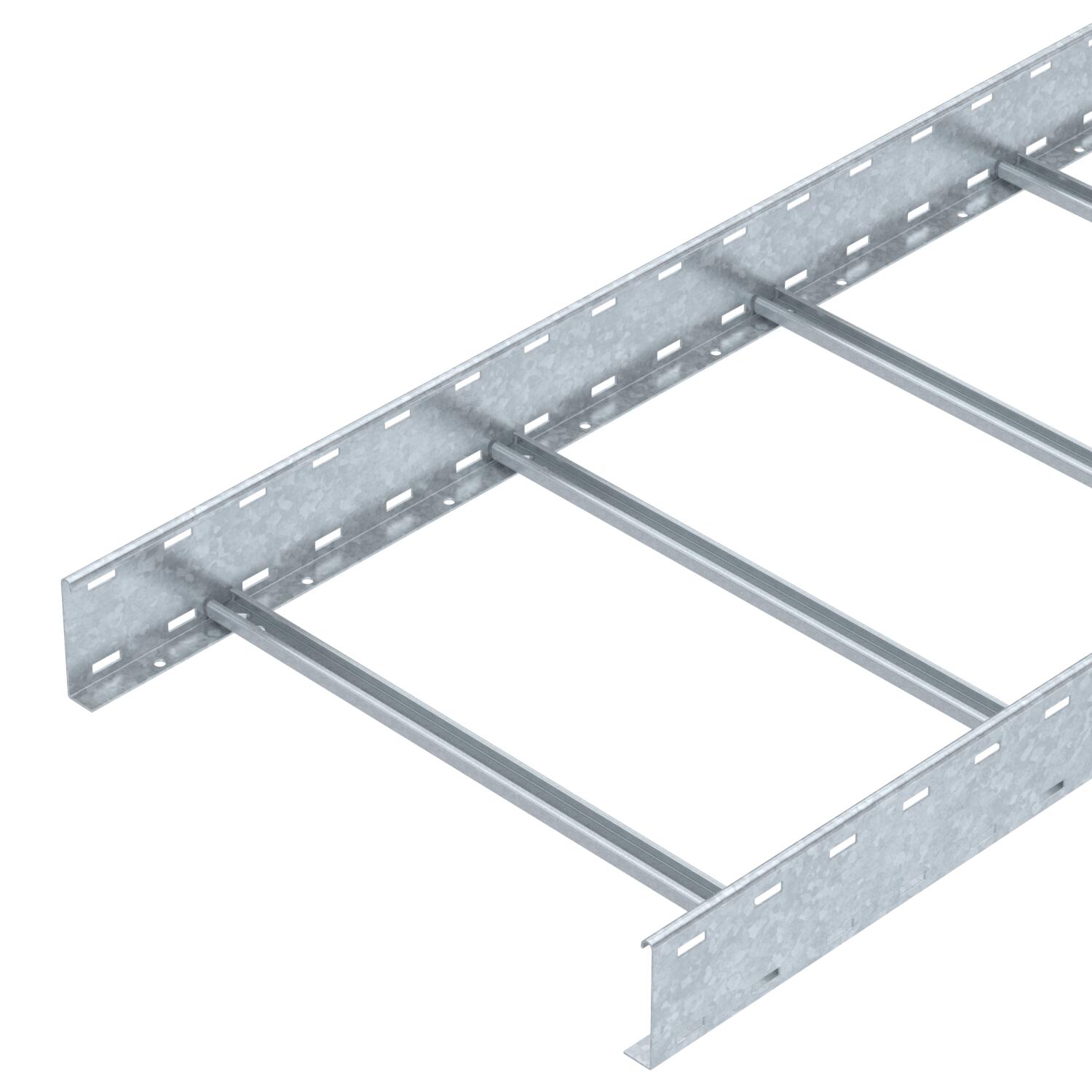

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate U clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data

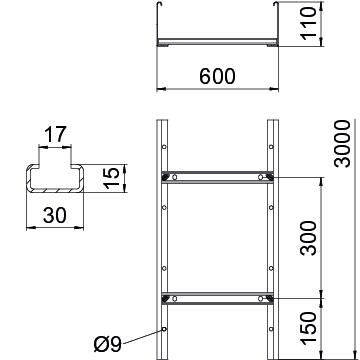

Dimension 110x600x3000 Dimension B 600 mm Fastening of rung Welded Height 110 mm Length 3000 mm Length 3000 ft Maintain electrical functions no Material Steel Rail thickness 2 mm Rung distance 300 mm Rung slot dimension 17,00 Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 2.0 m 4 kN/m Support spacing 2.5 m 3 kN/m Support spacing 3.0 m 2,3 kN/m Support spacing 3.5 m 1,6 kN/m Support spacing 4.0 m 1 kN/m Support spacing 4.5 m 0,83 kN/m Support spacing 5.0 m 0,7 kN/m Support spacing 6.0 m 0,25 kN/m Surface Hot-dip galvanised 85 µm Usable cross-section 540 cm² Usable cross-section 54000 mm² Version of the rungs Profile unperforated Wide-span version no Width 600 mm Technical data
Load diagram, cable ladder, type SLCS 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Cover with turn buckle FT SOMY
DRL 600 FT SO 7196061 3 m - Downloads
-
Catalogue Kabeltragsysteme , 45.23MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
